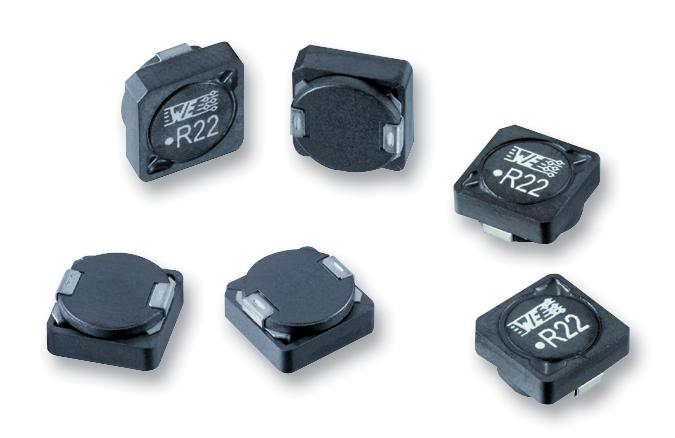

The WE-PDF series SMD shielded Power Inductor with (NiZn) nickel-zinc core. It is suitable for high frequency switching regulators.
- Flat wire power inductor
- Magnetically shielded which results in a low leakage field
- Low self-losses
- High saturation current
- Flat wire coil for lower losses at high frequency ranges
- High self resonance frequency
- Reflow recommended solder profile
- -40 to 150°C Operating temperature range
Warnings Cleaning agents that are used to clean application might damage or change the characteristics of the component, body, pins or termination. Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Other details
| Brand |
WURTH ELEKTRONIK |
| Part Number |
7447798221 |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
| CAD CadSoft_EAGLE EN |
|
| Product Change Notice EN |
|
