Description

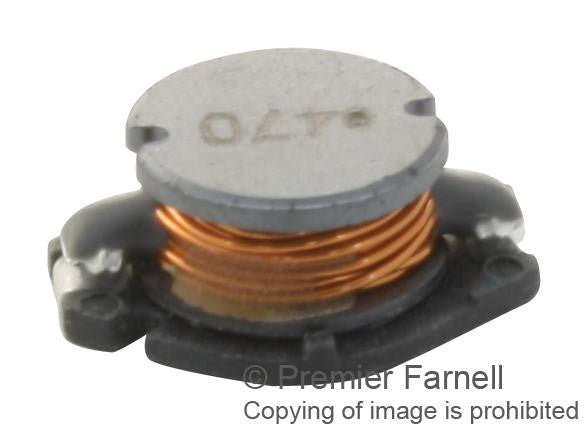

This is a Surface Mount Power Inductor, WE-PD4 Series, 47 µH, 1.8 A, 2.14 A, Unshielded, 0.19 ohm product from WURTH ELEKTRONIK with the model number 74456147
Product details
| Product Range | WE-PD4 Series |
| Inductance | 47µH |
| RMS Current (Irms) | 1.8A |
| Saturation Current (Isat) | 2.14A |
| Inductor Construction | Unshielded |
| DC Resistance Max | 0.19ohm |
| Power Inductor Case | 12.7mm x 10mm x 5mm |
| Inductance Tolerance | ± 10% |
| Packaging | Cut Tape |
Other details
| Brand | WURTH ELEKTRONIK |
| Part Number | 74456147 |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
| Drawing EN | |
