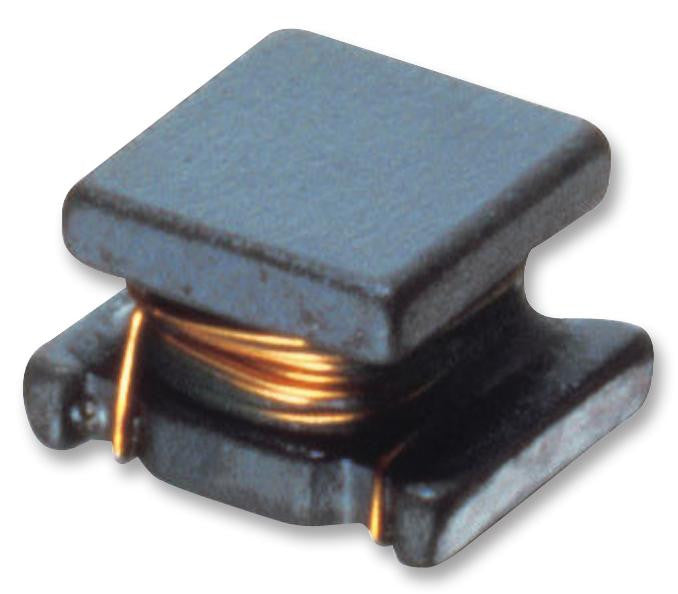

This is a Surface Mount High Frequency Inductor, LQH43C_03 Series, 100 µH, 190 mA, 1812 [4532 Metric] product from MURATA with the model number LQH43CN101K03L
Product details
| Inductance Tolerance |
± 10% |
| High Frequency Inductor Case |
1812 [4532 Metric] |
| DC Current Rating |
190mA |
| Inductance |
100µH |
| Inductor Construction |
Wirewound |
| Self Resonant Frequency Min |
6.8MHz |
| Product Range |
LQH43C_03 Series |
| DC Resistance Max |
2.2ohm |
| Packaging |
Cut Tape |
Other details
| Brand |
MURATA |
| Part Number |
LQH43CN101K03L |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
