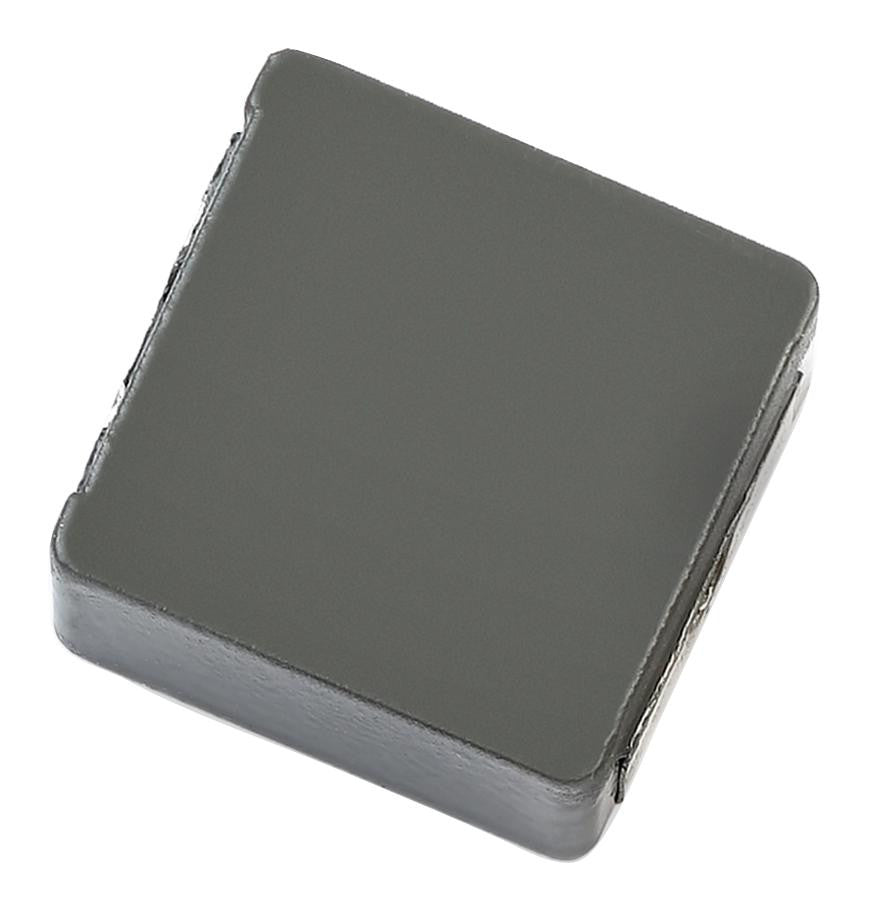

This is a Surface Mount Power Inductor, AEC-Q200, HCMA0703 Series, 0.68 µH, 15.5 A, 25 A, Shielded product from EATON BUSSMANN SERIES with the model number HCMA0703-R68-R
Product details
| Inductance Tolerance |
± 20% |
| RMS Current (Irms) |
15.5A |
| Saturation Current (Isat) |
25A |
| Power Inductor Case |
7.1mm x 6.8mm x 3mm |
| Inductance |
680nH |
| Inductor Construction |
Shielded |
| Product Range |
HCMA0703 Series |
| DC Resistance Max |
0.0055ohm |
| Packaging |
Cut Tape |
Other details
| Brand |
EATON BUSSMANN SERIES |
| Part Number |
HCMA0703-R68-R |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
