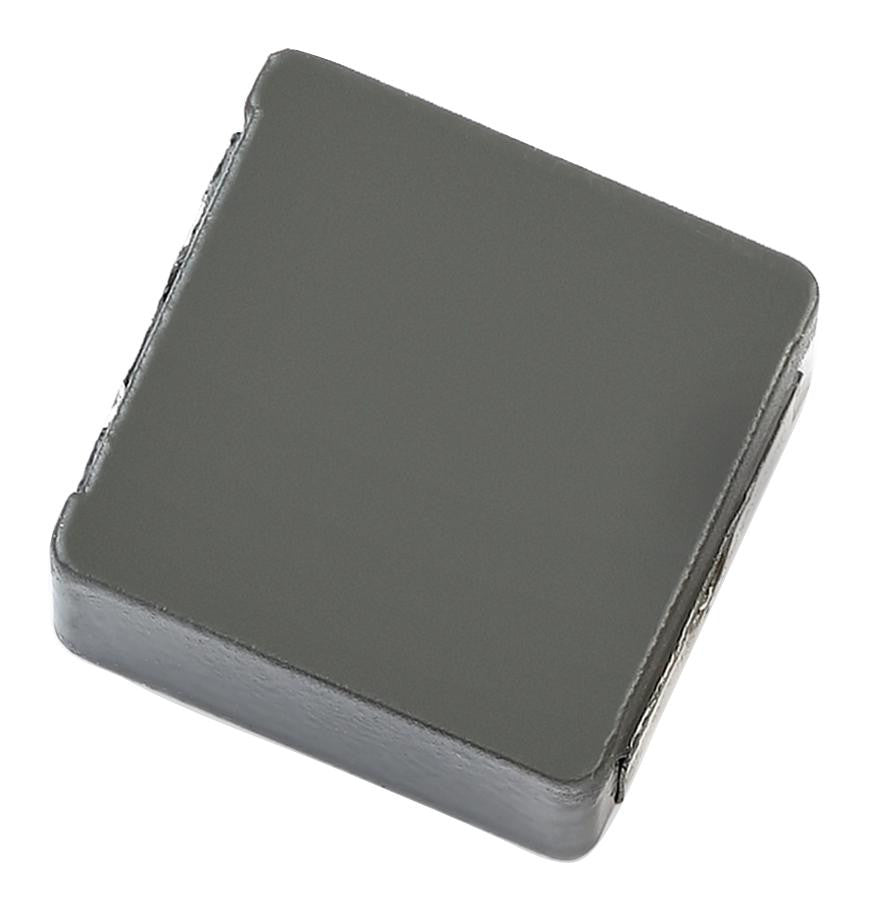

This is a Surface Mount Power Inductor, AEC-Q200, HCM1A1104 Series, 22 µH, 3.2 A, 6 A, Shielded, 0.065 ohm product from EATON BUSSMANN SERIES with the model number HCM1A1104-220-R
Product details
| Power Inductor Case |
11.1mm x 10mm x 4mm |
| DC Resistance Max |
0.065ohm |
| Saturation Current (Isat) |
6A |
| Packaging |
Cut Tape |
| Inductance Tolerance |
± 20% |
| Product Range |
HCM1A1104 Series |
| RMS Current (Irms) |
3.2A |
| Inductance |
22µH |
| Inductor Construction |
Shielded |
Other details
| Brand |
EATON BUSSMANN SERIES |
| Part Number |
HCM1A1104-220-R |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
