Description

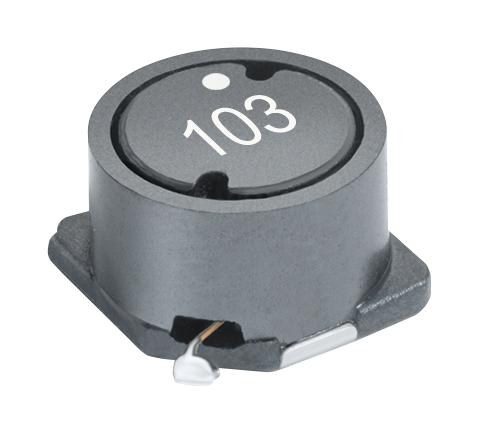

This is a Power Inductor (SMD), 100 µH, 1 A, 710 mA, MSS7348 Series, 7mm x 7mm x 4.8mm, Shielded product from COILCRAFT with the model number MSS7348-104MEB
Product details
| Inductance | 100µH |
| RMS Current (Irms) | 1A |
| Saturation Current (Isat) | 710mA |
| Product Range | MSS7348 Series |
| Power Inductor Case | 7mm x 7mm x 4.8mm |
| Inductor Construction | Shielded |
| DC Resistance Max | 0.32ohm |
| Inductance Tolerance | ± 20% |
| Packaging | Cut Tape |
Other details
| Brand | COILCRAFT |
| Part Number | MSS7348-104MEB |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
