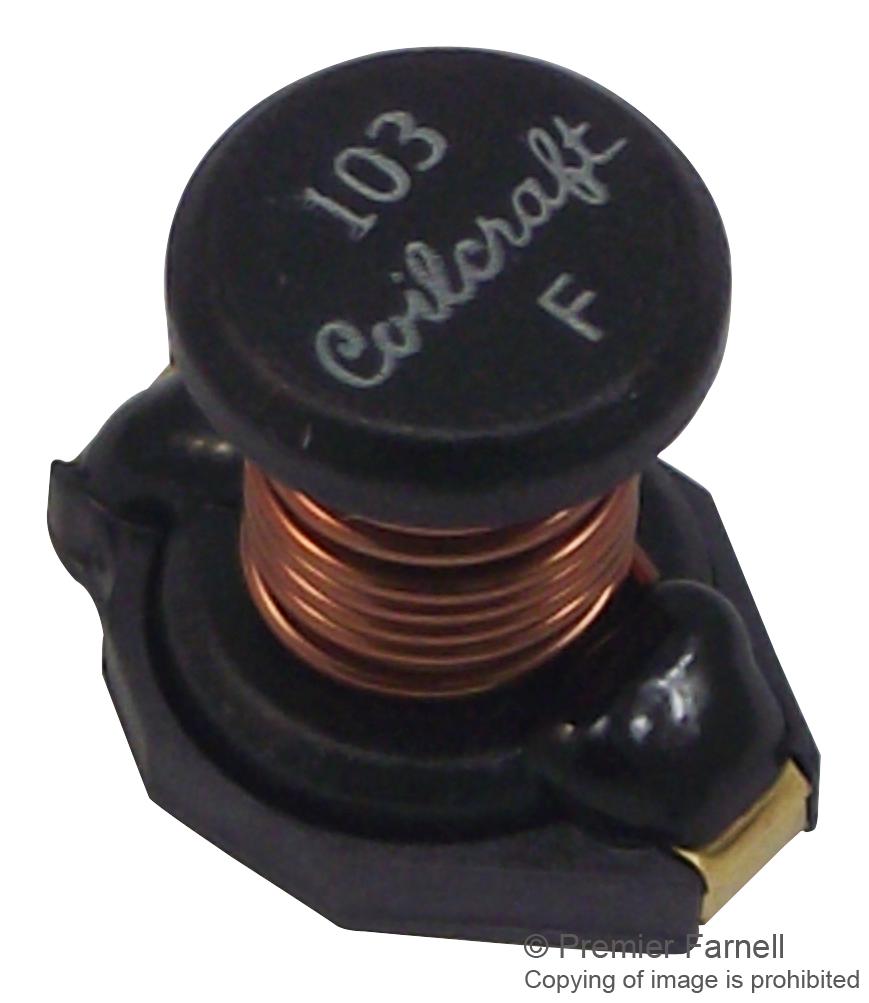

This is a Power Inductor (SMD), 68 µH, 1.2 A, 3 A, DO3340P Series, 12.95mm x 9.4mm x 11.43mm, Unshielded product from COILCRAFT with the model number DO3340P-683MLB
Product details
| Inductance |
68µH |
| RMS Current (Irms) |
1.2A |
| Saturation Current (Isat) |
3A |
| Product Range |
DO3340P Series |
| Power Inductor Case |
12.95mm x 9.4mm x 11.43mm |
| Inductor Construction |
Unshielded |
| DC Resistance Max |
0.17ohm |
| Inductance Tolerance |
± 20% |
| Packaging |
Cut Tape |
Other details
| Brand |
COILCRAFT |
| Part Number |
DO3340P-683MLB |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
