| ₹ 93.14 includes GST and import duties. | |
| B2B customers can avail ₹ 14.2 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

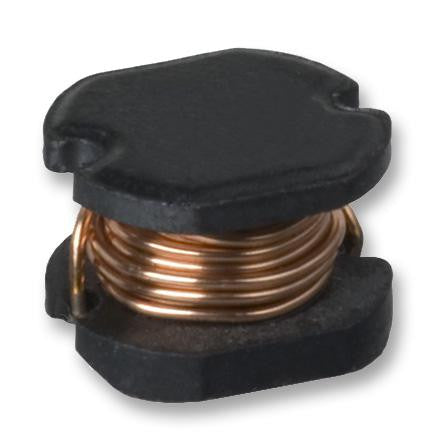

This is a Surface Mount Power Inductor, PM43 Series, 15 µH, 920 mA, 1.4 A, Unshielded, 0.24 ohm product from BOURNS JW MILLER with the model number PM43-150M-RC
Product details
| Inductance Tolerance | ± 20% |
| RMS Current (Irms) | 920mA |
| Saturation Current (Isat) | 1.4A |
| Power Inductor Case | 4.5mm x 4mm x 3.2mm |
| Inductance | 15µH |
| Inductor Construction | Unshielded |
| Product Range | PM43 Series |
| DC Resistance Max | 0.24ohm |
| Packaging | Cut Tape |
Other details
| Brand | BOURNS JW MILLER |
| Part Number | PM43-150M-RC |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
| Drawing EN | |
| 3D Product Image EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 91.28 |
| 3-5 | ₹ 90.35 |
| 5-10 | ₹ 88.48 |
| 10+ | ₹ 86.62 |
Bulk discount will be automatically applied during checkout based on quantity.
