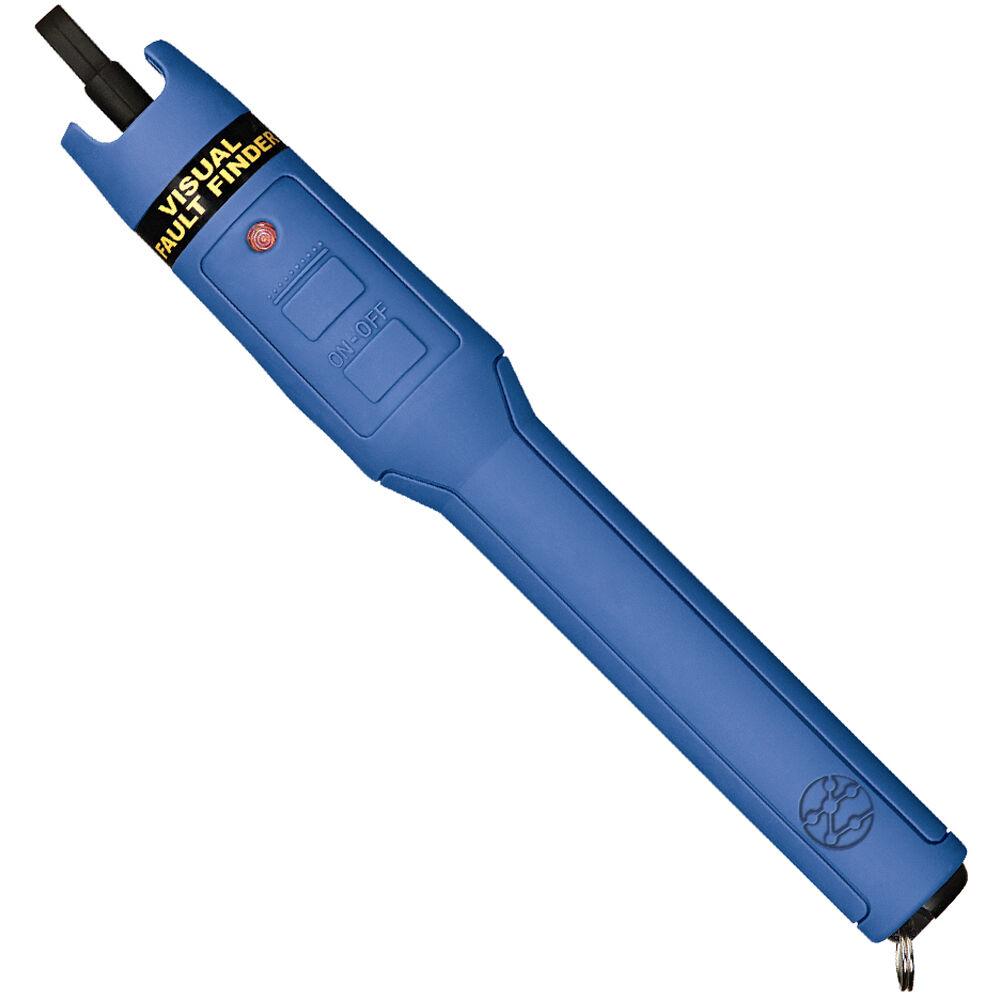

SimplyTEST ST-VFF5 Overview

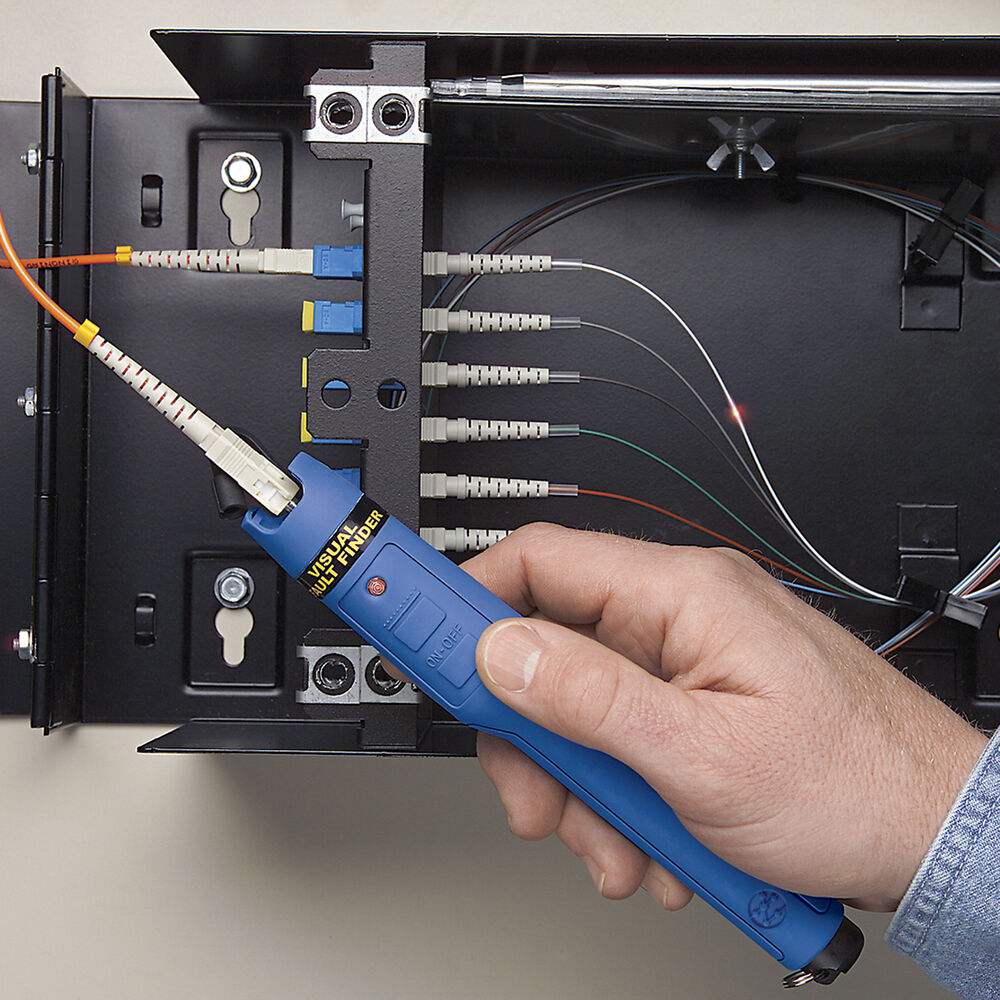

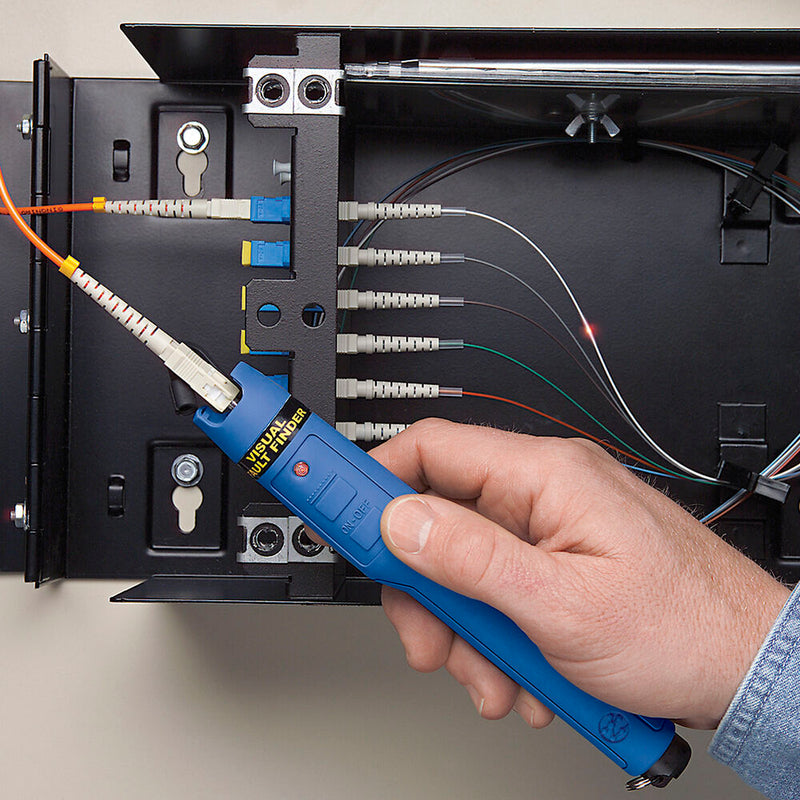

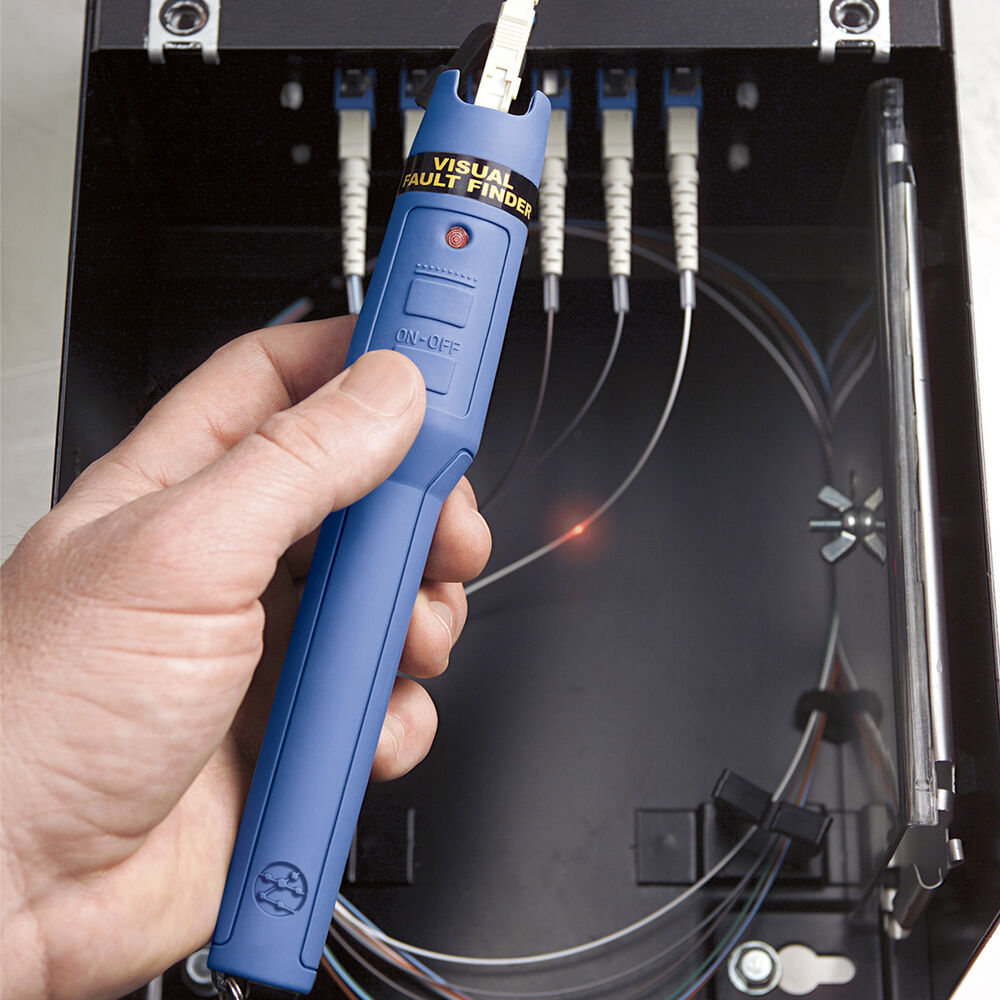

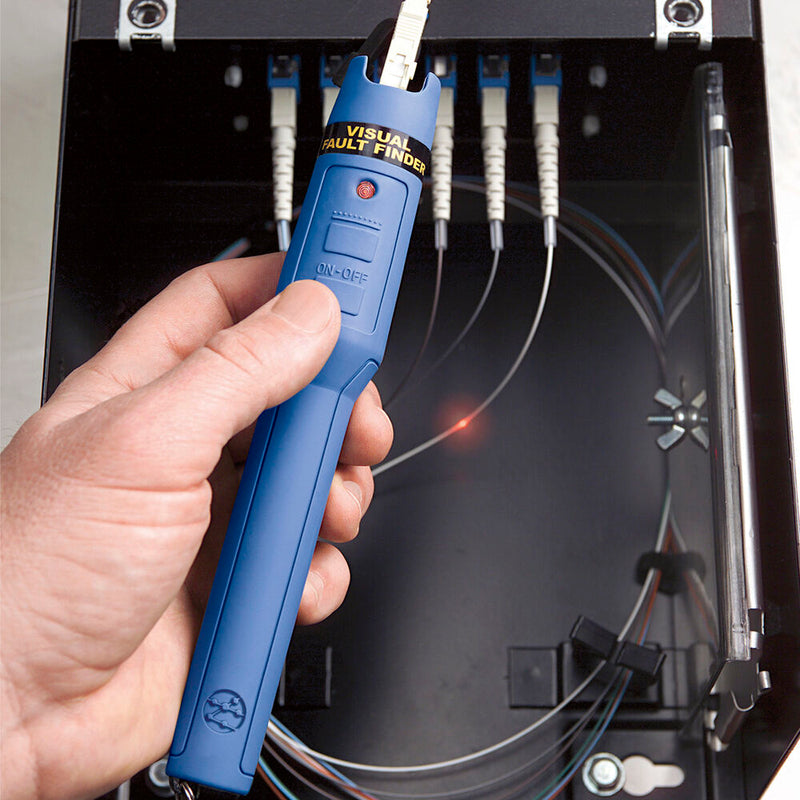

Locate and identify faults in fiber optic cabling with the ST-VFF5 Fiber Optic Cable Visual Fault Finder from Simply45, thanks to its 2.5mm universal adapter and high-visibility laser. The 2.5mm adapter directly accepts any 2.5mm PC connector and can accommodate smaller form factors with separately available adapters. A 650nm laser diode is visible up to 3 miles and can check continuity, locate breaks, splices, and damaged connectors in multi or single mode fiber cables.
The ST-VFF5 aids technicians terminating mechanical splices or pre-polished connectors by showing where leaking light is in the cable, an indication of poor fiber cleave or misalignment. Continuous and flashing modes allow you to optimize the laser's performance depending on the demands of your work environment. The device can operate up to 80 hours when in flashing mode and is powered by two AA batteries. Its rugged aluminum design allows it to sustain the wear-and-tear of regular use.
- Useful over a distance of approximately 3.1 miles into multi mode and single mode fiber cables
- Best suited for 3mm or smaller cables with lighter colored cable jackets
- High-power, day-visible 650nm laser diode
- Continuous and flashing mode, prevents battery drain due to accidental activation
- Powered via two AA batteries: 30 hours in continuous mode, 80 hours in flashing mode
SimplyTEST ST-VFF5 Specs
Power
| Power Source |
Battery (Not Included) |
| Battery Type |
2 x AA |
Physical
| Color |
Blue |
| Material of Construction |
Aluminum |
| Dimensions |
Not Specified by Manufacturer |
| Weight |
Not Specified by Manufacturer |
Packaging Info
| Package Weight |
0.915 lb |
| Box Dimensions (LxWxH) |
12.9 x 6.9 x 1.9" |
