Description

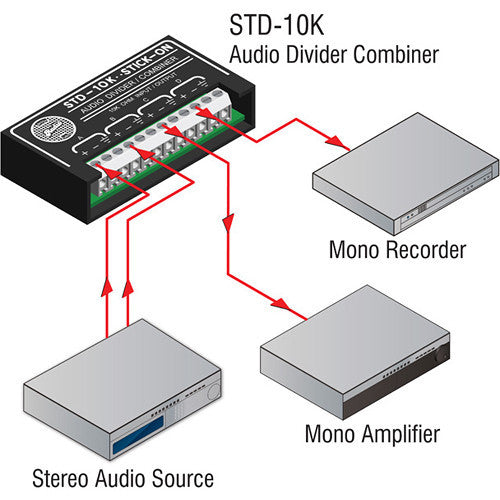

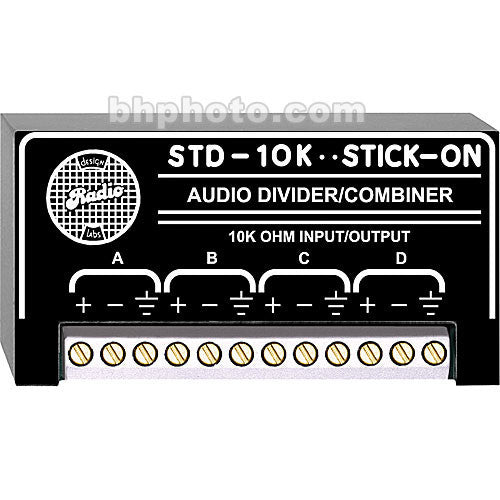

The STD-10K Divider-Combiner Network from RDL is a module that provides a resistive branching network with RF audio-line filtering on each of its (4) channels. Any channel may be used as an input or output. This flexibility permits combining stereo signals with mono inputs, splitting mono signals to multiple inputs, and combining multiple microphones on a single amplifier input.
The unit features an extremely small footprint, making it versatile enough for installation in almost any setup or work environment. This model is rated at 10K?.
- Resistive Branching Network with (4) Channels
- This module provides a resistive branching network with RF audio-line filtering on (4) channels.
- Custom Configuration
- Use this unit to combine stereo signal with mono inputs, split mono signals to multiple inputs, and combine multiple microphones on a single amplifier input.
- Small Footprint
- This unit's small size makes it easy to use in virtually any work environment.
UPC: 813721011251
| Construction | Plastic, metal |
| Finish | Black |
| Inputs/Outputs | x4 total, usable in any combination: -Split 1 in to 3 out -2 in to 2 out -3 in to 1 out |
| Circuit Design | Circuit type: passive Circuit configuration: balanced |
| Impedance | 10K? (input & output) |
| Insertion Loss | 3dB |
| Isolation | 3dB (use RDL mixers or distribution amps for isolation) |
| Power | Passive |
| Dimensions (HxWxD) | Not specified by manufacturer |
| Packaging Info | |
|---|---|
| Package Weight | 0.22 lb |
| Box Dimensions (LxWxH) | 4.1 x 2.0 x 2.0" |
In the Box
RDL STD-10K Divider-Combiner Network
- Module
- Three-Year Warranty Against Defects In Material & Workmanship
