Description

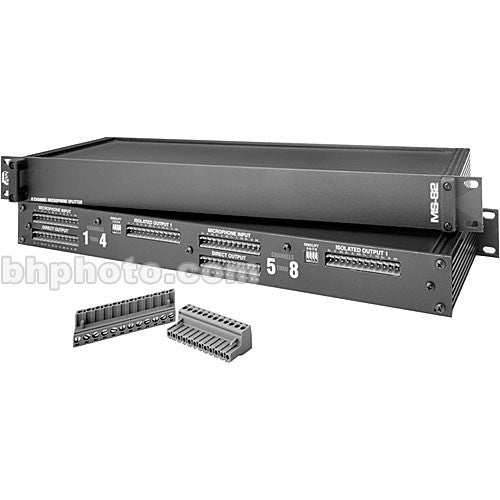

The MS-82 from Pro-Co is an eight-channel, two-way microphone splitter that splits eight low-impedance microphone signals into two outputs, allowing two mic preamps to be fed from one source. The MS-82 is ideal for large sound reinforcement systems where PA system microphones also need to be fed to a stage monitor system or remote recording mixer.
Complex sound systems, such as those mentioned above, often have grounding problems, which can cause unacceptable noise levels and shock hazards. The MS-82 uses transformer isolation and ground-lift switches to help minimize these risks. The ground-lift feature also provides buzz-free operation in practically any environment.
The MS-82 uses phoenix COMBICON plug-in screw connectors for easy hookup. MBT-1 transformers provide a wide frequency response with very low distortion. A steel and aluminum Uni-box(TM) construction provides long-lasting durability. All of these features pack neatly into a single-space rack unit, perfect for professional audio.
- Splits eight low-impedance mic signals into two outputs
- Single rack space unit with durable Uni-box(TM) construction
- Allows assembly of an economical expandable splitting system
- Ideal for stage monitoring, broadcast, and remote recording
- Uses phoenix COMBICON plug-in screw connectors
- High-quality transformer-isolated outputs
- 5 Year Limited Warranty
| Frequency Response | 20Hz - 20kHz (+/- 0.5dB @ -15 dBv Output) |
| Total Harmonic Distortion (THD) | Less than 0.03% (20Hz - 20kHz @ -30 dBv Output) Less than 0.1% (30Hz - 20kHz @ -15 dBv Output) Less than 0.25% (20Hz - 20kHz @ -15 dBv Output) |
| Phase Response | Less than -20 Degrees @ 20kHz |
| Input Impedance | Greater than 1 k ohm |
| Output Impedance | Less than 300 ohms |
| Voltage Loss | Less than 1 dB @ 1kHz |
| Connectors | 6 x Rear-Panel 12-pin Phoenix COMBICON Plug-In Screw Connectors (2 x Each for Mic Input, Direct Output, and Isolated Output) |
| Controls | 8 x Rear-Panel Ground-Lift Switches |
| Dimensions (WxHxD) | 19 x 1.75 x 4.75" (483 x 45 x 121 mm) |
| Weight | 4.7 lbs (2.1 kg) |
Bulk Discount
| Quantity | Price |
| 2 | ₹ 129864.7 |
| 3-5 | ₹ 128539.55 |
| 5-10 | ₹ 125889.25 |
| 10+ | ₹ 123238.95 |
Bulk discount will be automatically applied during checkout based on quantity.
