Description
Kopul CTSS-2 Overview

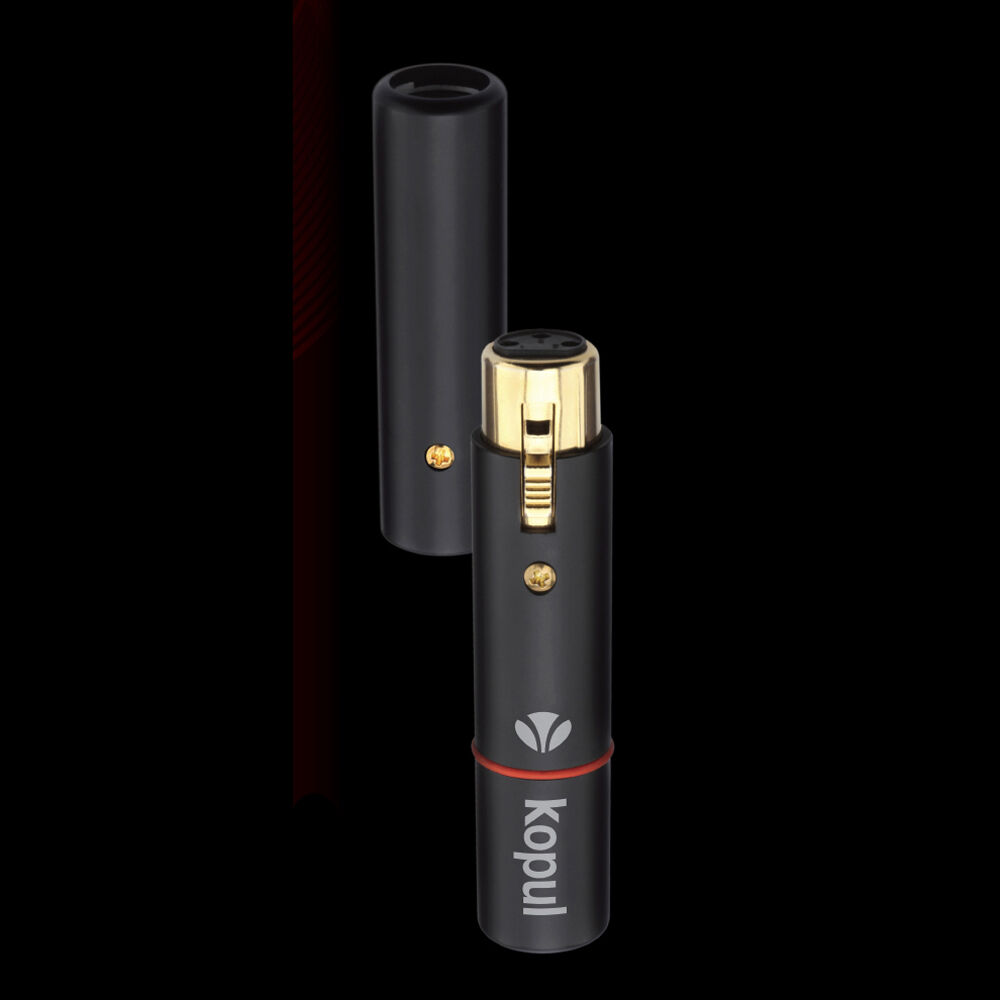

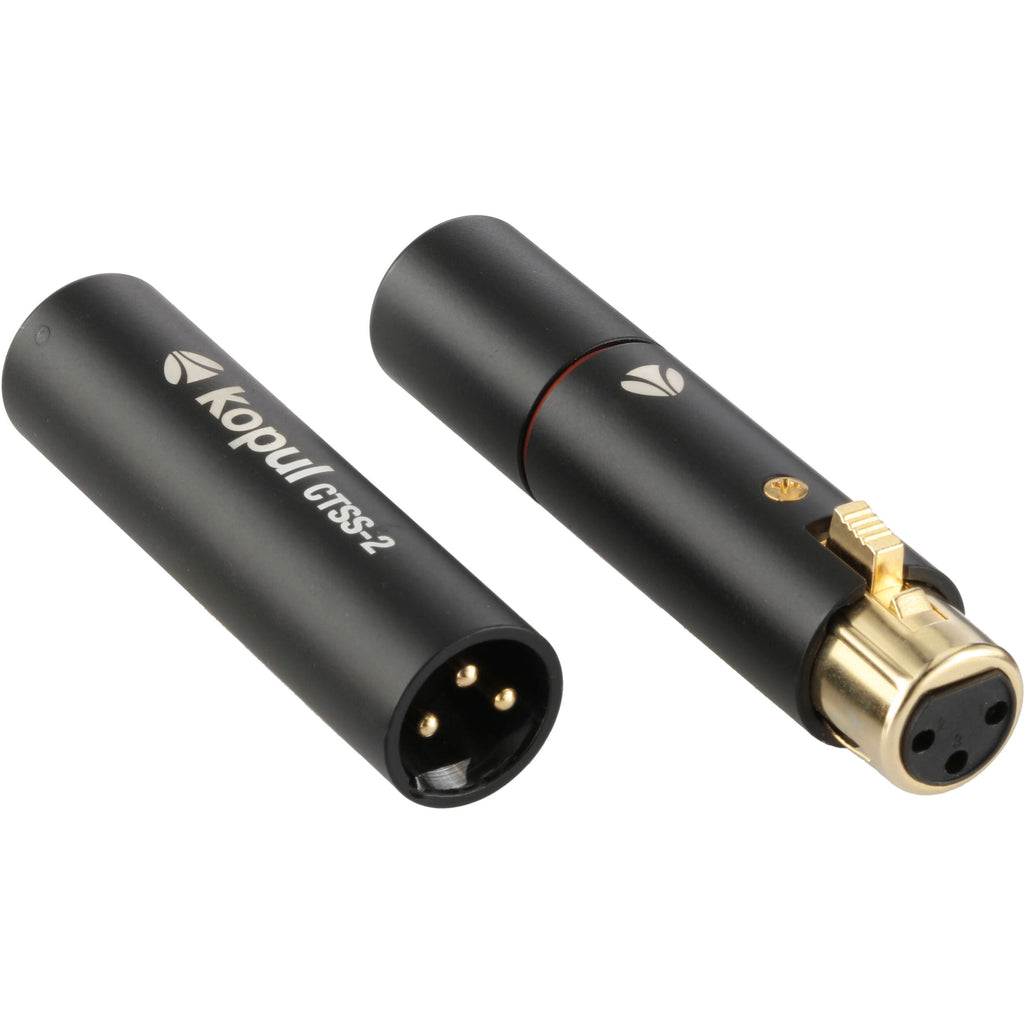

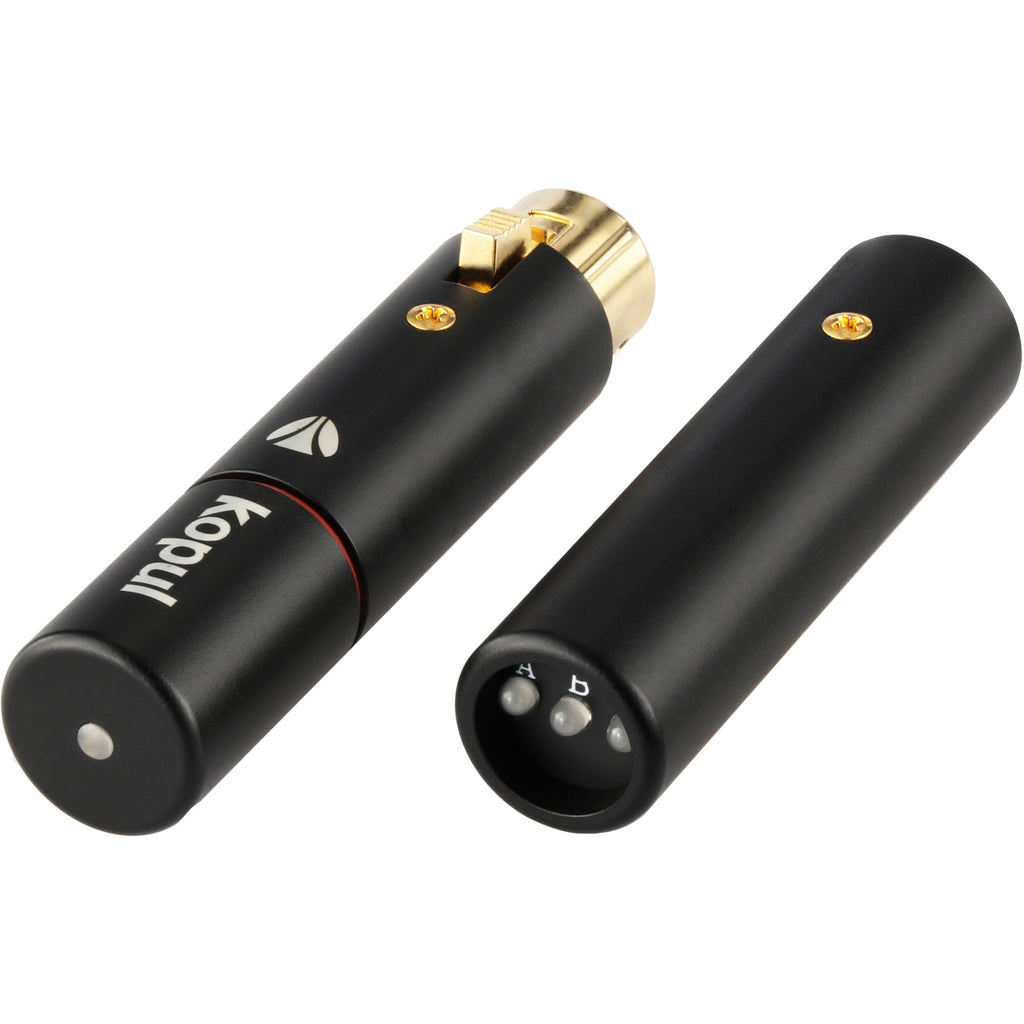

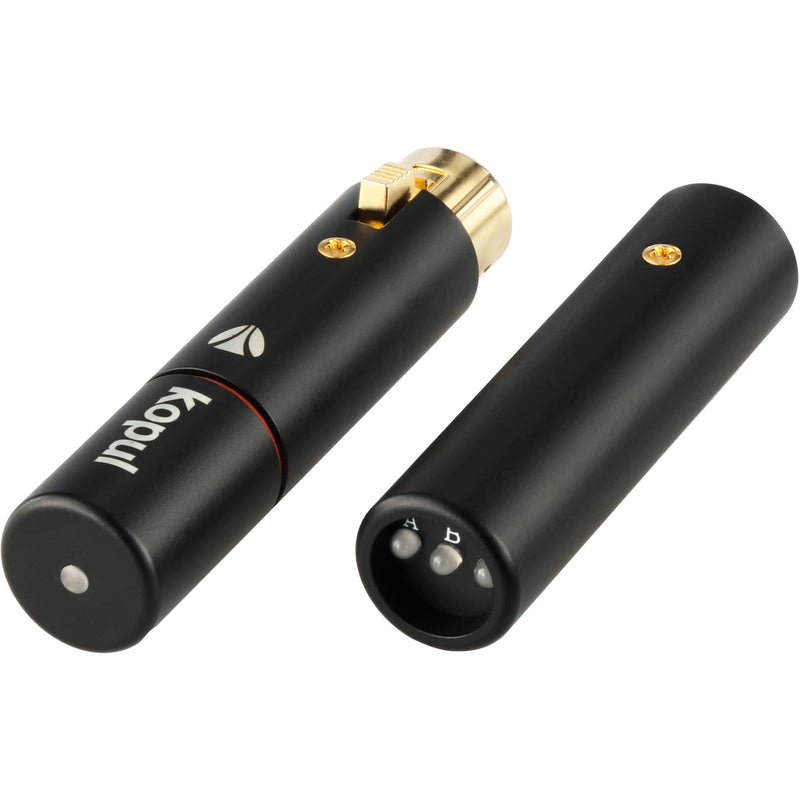

Designed for studio, stage, and field applications, the Kopul CTSS-2 Double Barrel XLR Cable Tester is an indispensable tool for audio professionals. It offers a dependable solution for verifying the functionality of XLR cables, helping to prevent potential issues during live performances, recording sessions, and other critical audio operations. The CTSS-2 includes two units: an XLR Input module and an XLR Receiver module.
Remote Cable Testing Made Easy

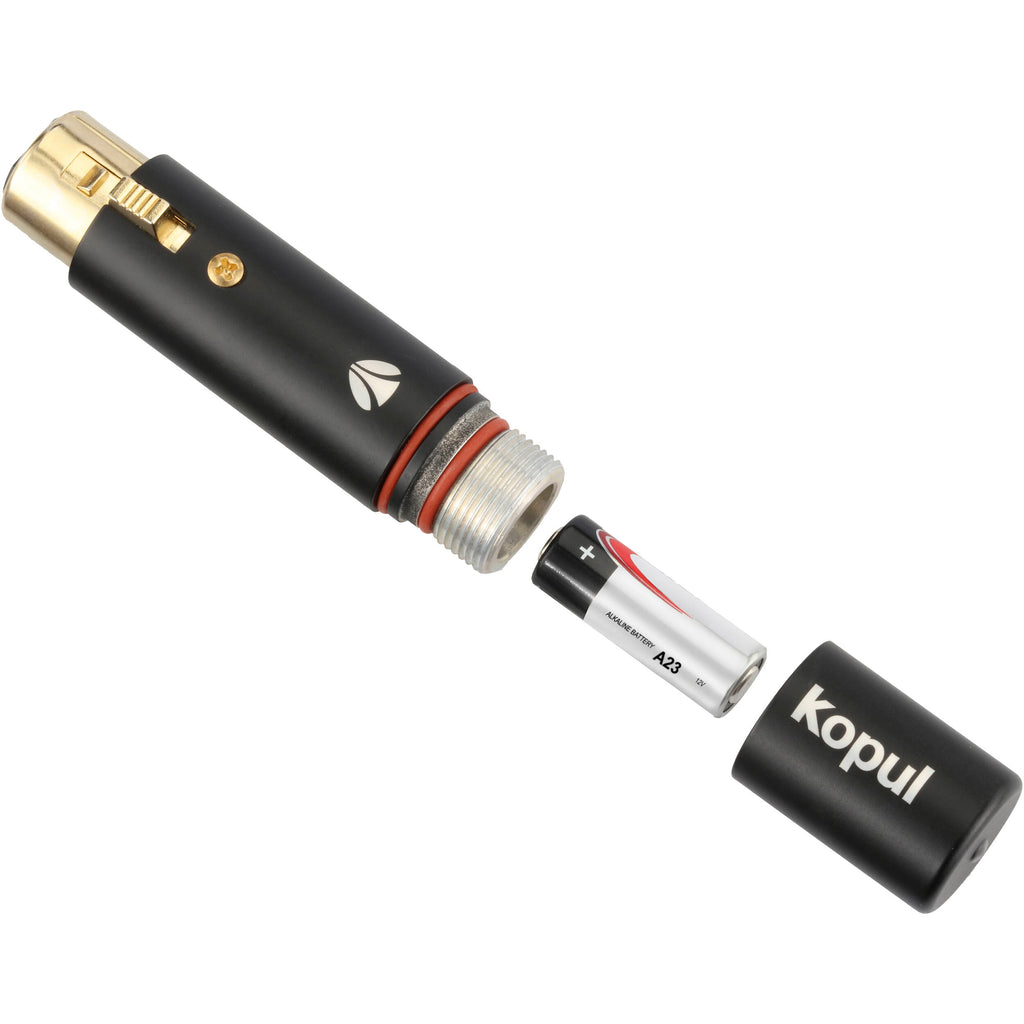

The XLR Input module, powered by an A23 battery, sends a signal remotely to the XLR Receiver module attached to the other end of the cable. This eliminates the need to bring cable ends together, enabling technicians to test and troubleshoot, even complex XLR cable systems across a stage or room in seconds.
Quickly Identify Problems

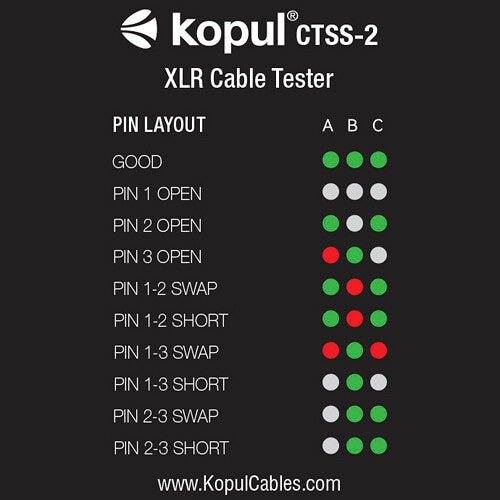

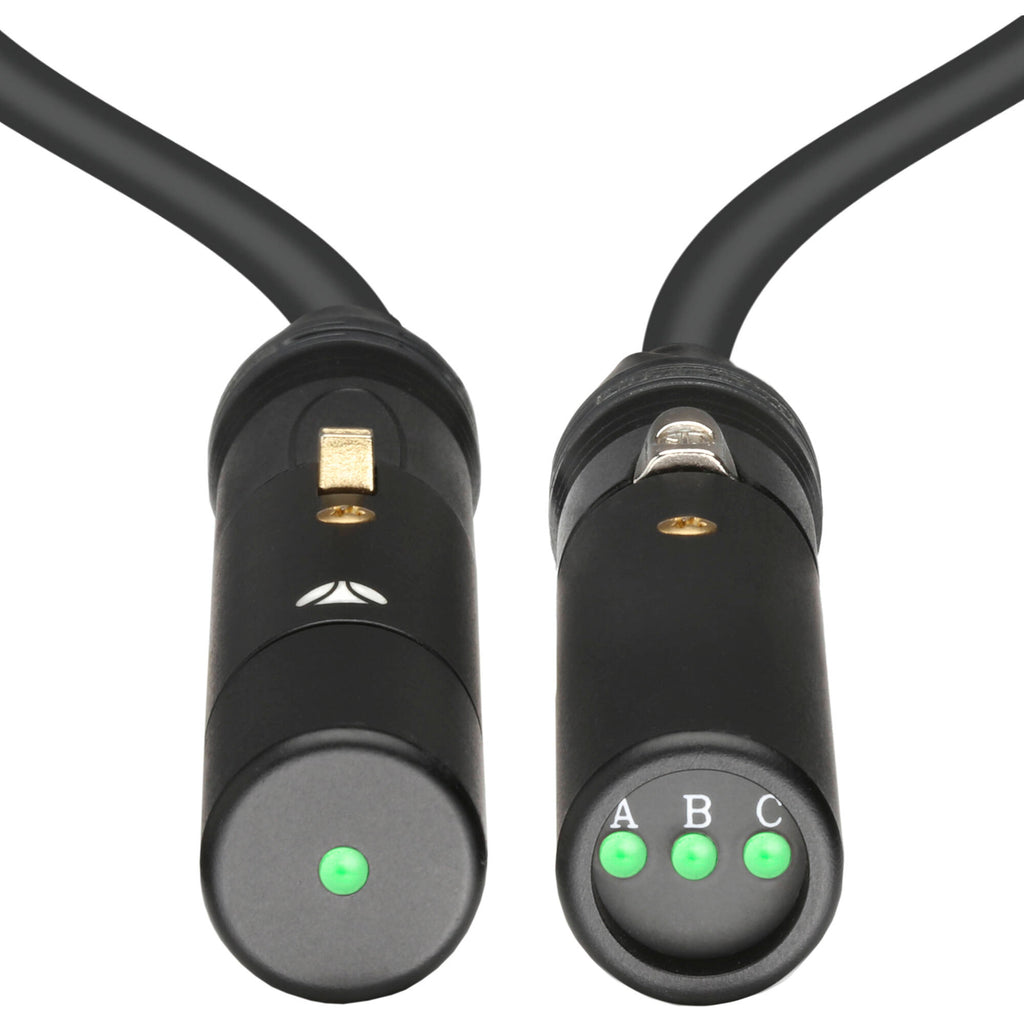

Three easy-to-read LED indicators (red and green) on the receiver instantly display whether a cable is functional or faulty. An included sticker guide clearly explains all possible LED combinations, making troubleshooting intuitive and foolproof. Stick the guide to the receiver for quick access.
- Crossed wires: When the signal paths are mixed up.
- Short circuits: When two or more wires are touching.
- Open circuits: When a wire is broken or disconnected.
Quick Testing for Multi-Channel Snakes
The CTSS-2 excels in environments with multi-channel XLR setups. Using phantom power from a mixing console or audio interface, technicians can test multiple lines quickly. Simply pop the receiver in and out of each channel in the patch bay for rapid diagnostics.
Built for Durability
Constructed with a rugged, all-aluminum housing and a matte black finish, the CTSS-2 is designed to withstand the rigors of professional use. The A23 battery ensures long-lasting performance, providing reliable power whenever you need it.
Protective Storage
The reusable box included with the CTSS-2 protects both the Input and Receiver modules during transport and storage. Keep your units scratch-free and ready to use, whether in your gear bag or a drawer.
UPC: 847628548244
Items Included
- Kopul CTSS-2 Double Barrel XLR Cable Tester
- XLR Input Module
- XLR Receiver Module
- A23 Battery
- LED Indicator Sticker
- Limited 1-Year Manufacturer Warranty
Additional Resources
Kopul CTSS-2 Specs
Inputs/Outputs
| Cable I/O |
Input Barrel: 3-Pin XLR Female, Balanced
Receiver Barrel: 3-Pin XLR Male, Balanced |
Power
| Power Source |
Battery (Included)
|
| Battery Type |
1x A23 (531)
|
Physical
| Color |
Black
|
| Material of Construction |
Aluminum
|
| Dimensions |
3.4 x 0.7" / 8.6 x 1.9 cm (XLR Input Barrel)
2.7 x 0.7" / 6.9 x 1.9 cm (XLR Receiver Barrel) |
| Weight |
1.4 oz / 39 g (XLR Input Barrel without Battery)
0.8 oz / 22 g (XLR Receiver Barrel) |
Packaging Info
| Package Weight |
0.31 lb
|
| Box Dimensions (LxWxH) |
5.6 x 3.6 x 1.6"
|
