Description
ARX MSX 48 Overview
The ARX MSX 48 is a high-performance, passive microphone/line splitter designed to meet the demanding standards of modern audio production. Engineered with 16 channels of ultralow noise, transformer-isolated splitting, the MSX 48 is ideal for live sound, broadcast, and recording applications requiring flawless signal integrity and reliable galvanic isolation.
Passive Design, Professional Performance
With no power required, the MSX 48 provides a robust, passive signal path that accommodates both low-level microphone signals and high-level line signals without compromise. Each of the 16 input channels is hardwired to a direct Main/FOH output (phantom power compatible), and also features two separate transformer-isolated outputs: a Monitor split on the front panel and an Auxiliary split on the rear?perfect for feeds to recording trucks, broadcast rigs, or monitoring systems.
Transformer-Isolated Signal Path
State-of-the-art internal transformers ensure total galvanic isolation, minimizing noise and ground-loop issues. Separate windings on the Monitor and Auxiliary outputs prevent signal interaction, providing clean and stable distribution to multiple destinations.
Built for the Real World

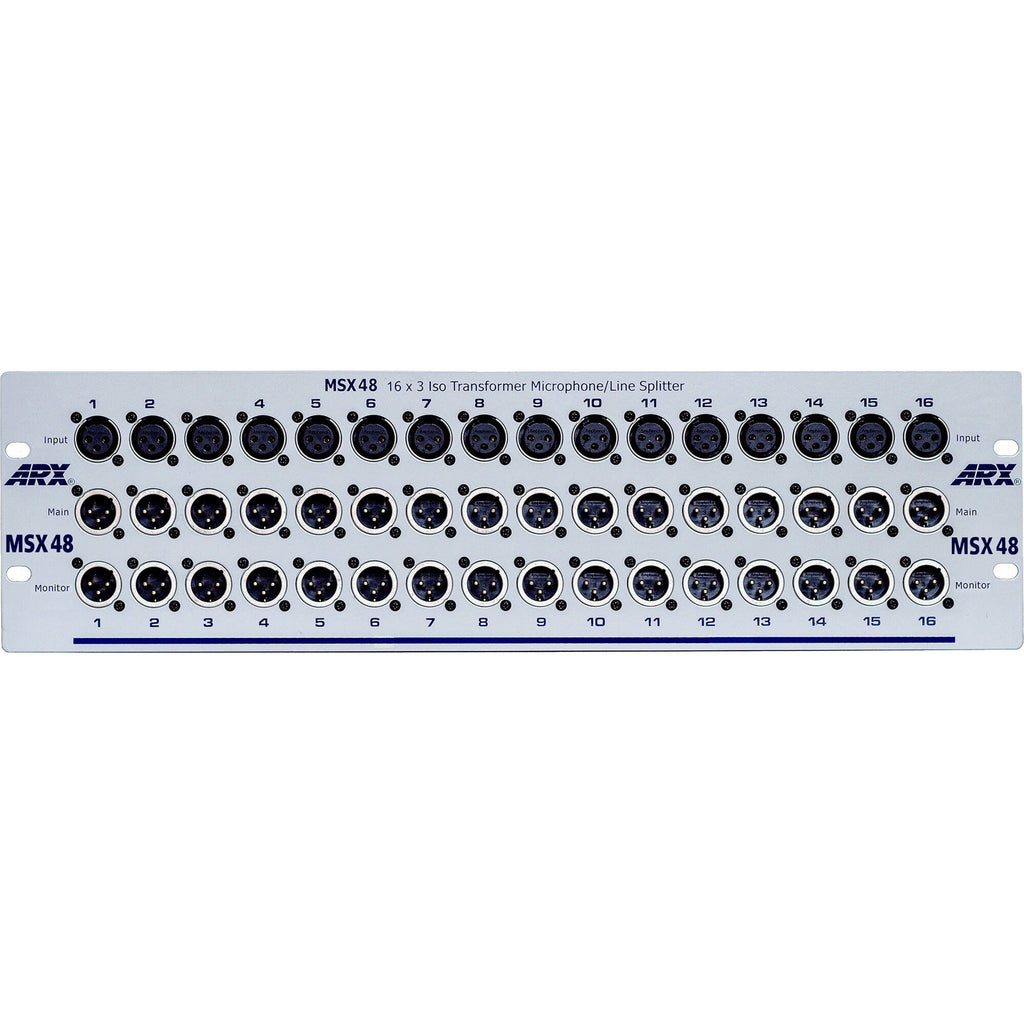

The MSX 48 is housed in a rugged, all-steel chassis for superior shielding and long-term durability. It uses high-quality Amphenol XLR connectors with gold-plated contact pins to maintain signal reliability and reject RF interference over time. A front-panel channel labeling strip and rear chassis ground terminal provide added convenience for setup and integration.
Practical and Cost-Effective
Unlike other systems that require breakout cables or patch panels, the MSX 48 is ready to go right out of the box. Its intuitive layout and fully balanced I/O make it a streamlined solution for complex splitting needs without added expense or installation complexity.
Applications
- Live sound reinforcement
- Remote broadcast feeds
- Recording trucks
- Multi-zone installations
- AV system integration
Details at a Glance
- Sixteen channel, three-way mic/line splitter
- Passive design?no power required
- Transformer-balanced inputs and outputs
- Hardwired Main outputs pass phantom power
- Monitor and Auxiliary transformer-isolated splits
- Galvanic isolation with individual transformer windings
- Gold-plated Amphenol connectors for durability
- Steel chassis with excellent interference shielding
- Rear-panel chassis ground point
- Channel labeling strip on front panel
Items Included
- ARX MSX 48 16x48 Passive Transformer-Balanced Mic/Line Splitter
- Limited 12-Month Manufacturer Warranty (Labor)
- Limited 24-Month Manufacturer Warranty (Parts)
Additional Resources
No additional resources available
ARX MSX 48 Specs
General
| Inputs |
16 x 3-Pin XLR Female
|
| Outputs |
48 x 3-Pin XLR Male
|
| Input Impedance |
300 Ohms
|
| Output Impedance |
2 Secondaries at 600 Ohms Each
|
| Maximum Output Level |
+20 dBm
|
| Frequency Response |
30 Hz to 20 kHz (+/- 1 dB)
|
| THD |
At Maximum Output: 0.2% (30 Hz to 20 kHz at 20 dBm)
|
| Insertion Loss |
0.5dB at 1 kHz (600-Ohm Source and Load)
|
Physical
| Color |
Gray
|
| Weight |
13.5 lb / 6.1 kg
|
