Description

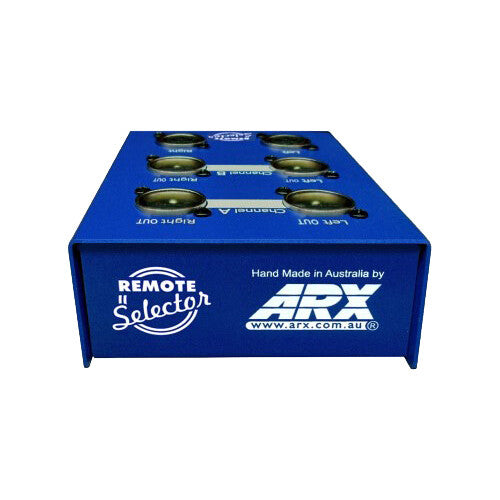

ARX Remote Selector Overview
The ARX Audibox Remote Selector is a dual-channel stereo output selector designed to route one stereo XLR input to either of two stereo XLR output pairs. With quiet operation and remote control capability, it?s an ideal solution for speaker zone switching, A/B comparisons, and flexible signal routing in live sound, AV, and installed systems.
Silent and Seamless Output Selection
At the core of the Remote Selector is ARX's proprietary SoftSwitch technology, which ensures noise-free switching between Output A and Output B. The unit routes a single stereo XLR input to one of two output paths without pops or clicks, making it suitable for critical listening or public address environments.
Remote Control Operation
The Remote Selector can be triggered in two different ways:
- Mode 1: Relay closure via external remote switch and 12 to 24 VDC wall power
- Mode 2: Control voltage supplied directly from an automation or EWIS panel
By default, Output A is active. Applying 12 to 24 VDC to the control connector switches to Output B, providing reliable automated switching.
Durable, Installation-Ready Build
Housed in a tough steel chassis with a polyurethane finish, the Remote Selector is built for durability in demanding professional environments. It integrates easily into the rest of the ARX Audibox series and offers a simple, flexible solution for signal distribution.
Practical Applications
- Remotely switch between two speaker zones
- A/B test different sound systems or processors
- Manage signal routing between multiple performance acts sharing the same input source
At a Glance
- Switches one stereo input to two stereo outputs
- Remote-controlled switching via relay or DC voltage
- Silent operation with SoftSwitch technology
- Defaults to Output A when idle
- Ideal for speaker selection, zoning, and signal A/B tests
- Top-mounted XLR connectors for easy setup
- Sturdy all-steel housing for long-term reliability
Items Included
- ARX Audibox Remote Selector
- Limited 12-Month Manufacturer Warranty (Labor)
- Limited 24-Month Manufacturer Warranty (Parts)
Additional Resources
No additional resources available
ARX Remote Selector Specs
Inputs/Outputs
| Audio I/O |
4x XLR 3-Pin Output
2x XLR 3-Pin Input |
| Remote |

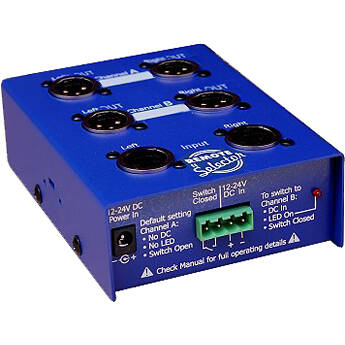

Remote Switch and External Input: 4-Pin Dinkle-Type Socket, 5 mm Pin Spacing, Connector Supplied with Unit
Pin 1 and 2 Remote Switch: Open Input = Channel A Selected, Closed Input = Channel B selected Pin 3 and 4 Remote DC Control: Pin 3 = +12 to 24 VDC Pin 4 = 0 VDC / Gnd |
| Frequency Response |
10 Hz to 50 kHz (+/- 0.5dB)
|
Wireless
| Mobile App Compatible |
No
|
Power
| Power Source |
DC Input
|
| DC Input Power |
12 to 24 VDC
|
Physical
| Color |
Blue
|
| Material of Construction |
Steel Chassis
|
