Description

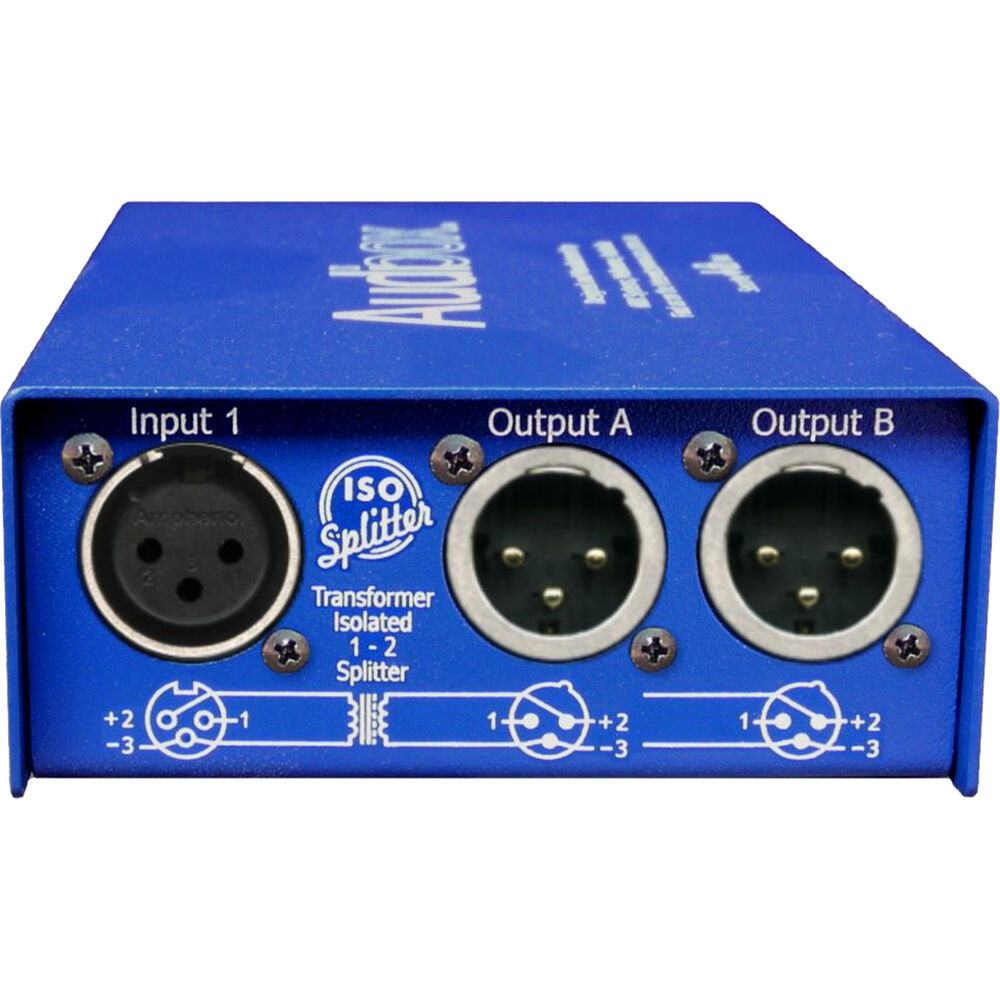

ARX ISO SPLITTER Overview
The ARX Audibox ISO Splitter is a single-channel, passive audio splitter designed for professional applications requiring clean signal distribution with complete galvanic isolation. Ideal for broadcast feeds, remote recordings, and other critical audio splits, it uses high-quality transformers to ensure audio integrity while preventing ground loop hum and interference.
Clean Signal Splitting with Full Isolation
This compact unit splits one audio input into two isolated outputs, making it perfect for sending the same signal to multiple destinations without compromising quality or introducing noise. Transformer isolation ensures that each output remains electrically independent, providing clean, hum-free performance, even in complex or high-interference environments.
Reliable and Installation-Ready
Housed in a rugged, all-steel chassis finished with a matte textured powder coat, the ISO Splitter is built for durability in professional settings. It operates without any external power, offering a plug-and-play solution for mobile setups and fixed installations alike. Security features include a Kensington-type computer lock slot and optional under-table mounting bracket for secure integration.
Additional Details
- Transformer-isolated 1-in, 2-out splitter
- Provides full galvanic isolation
- No power required?fully passive
- Rugged powder coated steel enclosure
- Slip-resistant rubber base pad
- Hardwearing epoxy screen printing
- Kensington lock slot for security
- Optional bracket for under-table mounting
Items Included
- ARX Audibox ISO Splitter
- Limited 12-Month Manufacturer Warranty (Labor)
- Limited 24-Month Manufacturer Warranty (Parts)
Additional Resources
No additional resources available
ARX ISO SPLITTER Specs
General
| Input Connectors |
3-Pin Female XLR Wired Pin-2 + Hot, Pin-3 - Cold
|
| Output Connectors |
2 x 3-Pin Male XLR Wired Pin-2 + Hot, Pin-3 - Cold
Audio Grounds Are Unconnected |
| Input Impedance |
300 Ohms
|
| Output Impedance |
2 Secondaries at 600 Ohms Each
|
| Maximum Output Level |
+ 20 dBm
|
| THD |
0.2% (At Maximum Output 30 Hz to 20 kHz at 20 dBm)
|
| Insertion Loss |
1.6 dB at 1 kHz (600-Ohm Source and Load)
|
| Construction |
All-Steel Chassis, Fiberglass PCB, Ultralow-Noise Audio Transformer
|
Physical
| Color |
Blue
|
| Material of Construction |
Steel
|
