Description
- Dye Sublimation / Thermal Transfer
- Resolution: 300 dpi
- Color YMCKO Print Speed: 16 sec/card
- Monochrome Print Speed: 6 sec/card
- Works with CR-80 & CR-79 Cards
- Double-Sided, Edge-to-Edge Printing
- 200-Card Input / 100-Card Output
- SmartScreen Graphical Display
- Fargo Workbench & Swift ID Software
- USB 2. 0 and Ethernet Connectivity

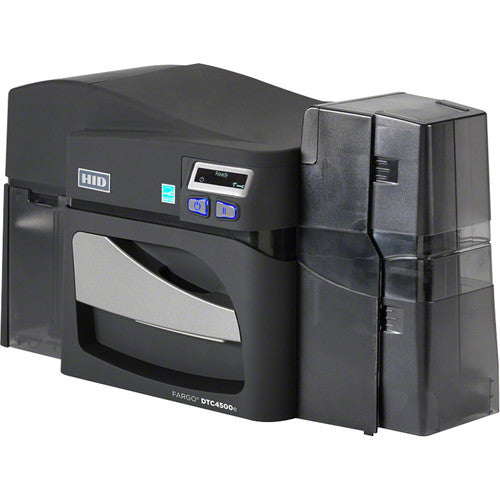

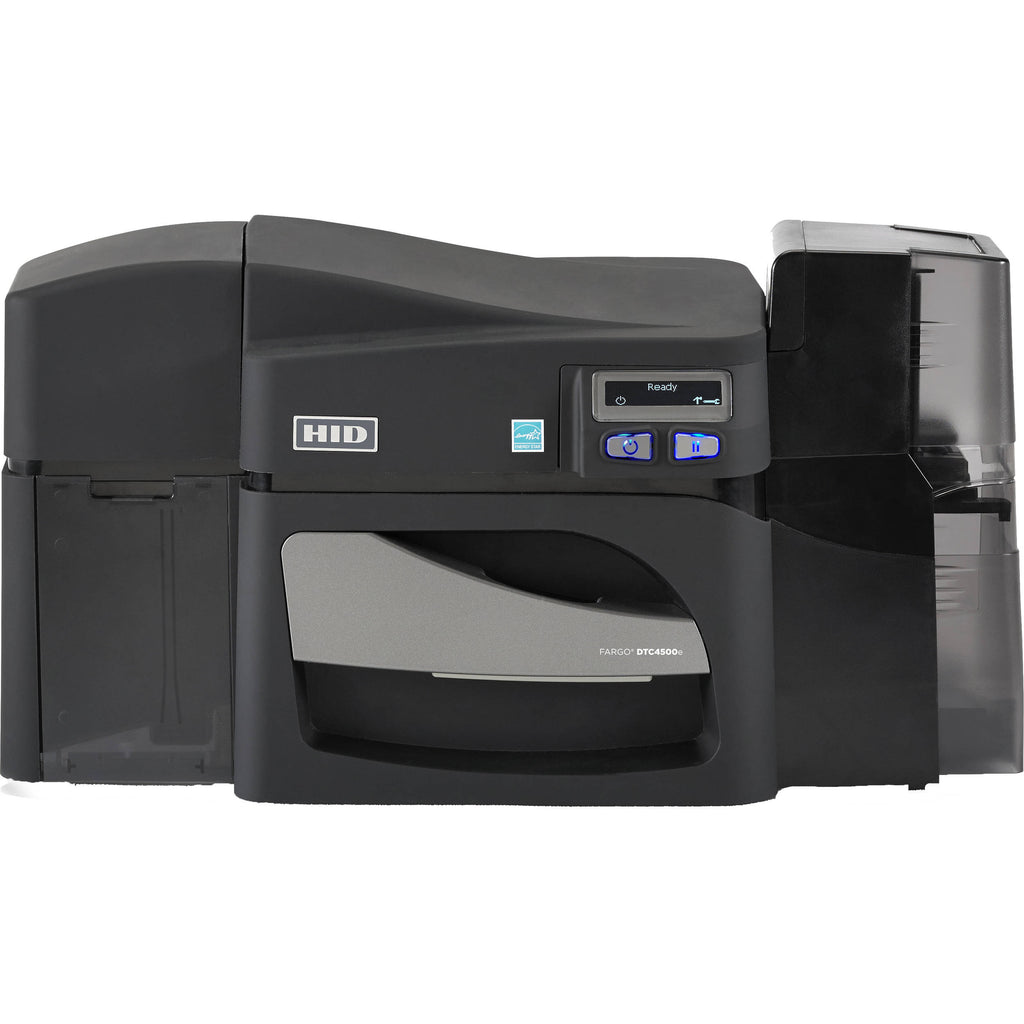

Built to withstand large print volumes required by organizations, the DTC4500e Dual-Sided Card Printer from Fargo comes equipped with a variety of features as well as single-sided lamination option that will allow users to quickly produce ID cards that suit their needs. This direct-to-card printer uses dye sublimation and thermal transfer technology to produce CR-80 and CR-79 adhesive backed cards with a 300 dpi resolution. Also, this system allows for fast print speeds of 16 seconds per card in YMCKO and 6 seconds per card in monochrome. And, this model can print double-sided and edge-to-edge for optimum quality.
Batch jobs are simplified by the use of a 200-card input hopper and a 100-card output hopper. There is also a 100-card reject hopper for getting misprints out of the way. The standard dual-input hopper allows for maximum card input capacity and management of multiple card types. Checking print status is easy with a SmartScreen graphical display on the front panel and the inclusion of the embedded Swift ID card badging for quickly making ID cards and the Fargo Workbench with Color Assist tool for diagnostics and matching colors for accurate prints. Additionally, the printer has both USB 2.0 and Ethernet connectivity options with an internal print server for secure printing.
- Works with both EZ and ECO ribbons
- Rewrite technology is available for reducing ribbon usage
- Supports up to 16.7 million colors or 256 shades per pixel
- A card cleaning roller is integrated into the ribbon cartridge for easy maintenance
- Dual-sided printer allows you to add additional company or cardholder information and security features, such as duplicate photos and digital signature
- Internal server for secure printing over a network

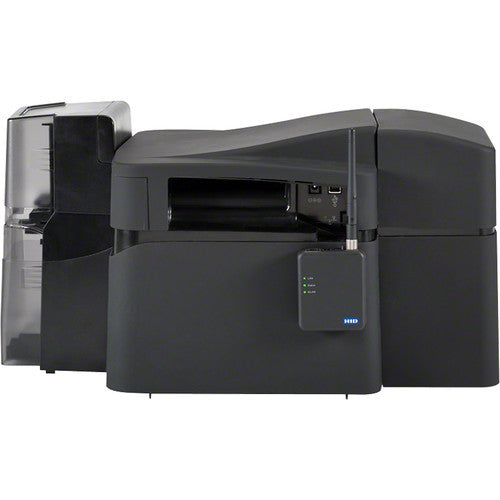

- Supports Wi-Fi accessories (not included), allowing you to print anywhere, anytime
- Standard dual-input locking hopper increases capacity or management of multiple card types
- Protect blank card stock and printed/encoded cards with the locking hopper
- Card lamination for applying over laminates to produce highly-secure cards that resist forgery and increase card durability
- SmartScreen graphical display provides easy-to-follow prompts for printer status
- Easily integrates into existing IT infrastructures through the built-in Ethernet and USB connection, allowing for centralized or remote ID card issuance
- Standard printer password protection and fluorescent panel printing provide a cost-effective and dynamic means of increasing card security
- Fargo Workbench diagnostic utility facilitates printer maintenance
- Color Assist tool matches spot colors, ensuring accurate prints of graphics such as company logos
- Fully compatible with Asure ID card personalization software for badge design, database management and technology card encoding, as well as EasyLobby Secure Visitor Management solutions
- Fully interoperable with other products in the HID ecosystem
- USB Cable
- Power Cord
- Driver & Documentation CD
- Limited 3-Year Warranty
| Printing Method | |
|---|---|
| Printing Technology | Dye sublimation / resin thermal transfer |
| Maximum Resolution | 300 dpi (11.8 dots/mm) continuous tone |
| Colors Supported | 16.7 million / 256 shades per pixel |
| Ribbon Options | Full-color with resin black and overlay panel, YMCKO, 500 prints, more economical and eco-friendly refill ribbon for cartridge (ECO only) Full-color half-panel with resin black and overlay panel, YMCKO, 850 prints, ECO only Full-color with two resin black panels and overlay panel, YMCKOK, 500 prints, ECO only Full-color with fluorescing, resin black and overlay panel, YMCFKO, 500 prints, ECO only Full-color with fluorescing, two resin black panels and overlay panel, YMCFKOK, 400 prints, ECO only Full-color with two resin black panels and overlay panel, YMCKK, 500 prints, ECO only Resin black and overlay panel, KO, 1250 prints, ECO only Dye-sublimation black and overlay panel, BO, 1250 prints, ECO only Resin black (standard and premium), 3000 prints, ECO only Resin green, blue, red, white, silver, and gold, 2000 prints, ECO only Rewrite technology |
| Performance | |
|---|---|
| Print Speed | K: 6 sec/card KO: 8 sec/card YMCKO: 16 sec/card YMCKOK: 24 sec/card |
| Card Sizes | CR-80: 3.375 x 2.125" (85.6 x 54.0 mm) CR-79 Adhesive Back: 3.313 x 2.063" (84.1 x 52.4 mm) |
| Print Area | CR-80 Edge-to-Edge: 3.36 x 2.11" (85.3 x 53.7 mm) CR-79: 3.3 x 2.04" (83.8 x 51.8 mm) |
| Media Thickness | Print Only: 9-40 mil (0.229-1.016 mm) Print & Lamination: 30-40 mil (0.762-1.020 mm) |
| Card Type | PVC or polyester cards with polished PVC finish Monochrome resin required for 100% polyester cards Optical memory cards with PVC finish Rewrite |
| Capacity | Input: 200 cards with 30 mil (0.762 mm) thickness Output: 100 cards with 30 mil (0.762 mm) thickness Reject: 100 cards with 30 mil (0.762 mm) thickness |
| Care & Cleaning | Card cleaning roller integrated into ribbon cartridge; cleaning roller is automatically replaced with each ribbon change |
| Advanced Features | Single-sided lamination |
| Connectivity | |
|---|---|
| Computer Interface | USB 2.0 Ethernet with internal print server |
| Memory | 32 MB RAM |
| Compatible Operating Systems | Windows XP, Vista (32/64-bit), Server 2003, Server 2008, 7, 8 (32/64-bit) Mac OS X 10.5-10.9 Linux Ubuntu 12.04, Debian 7.0, Fedora 18, Mandriva 2011, Red Hat 6.4, Open Suse 12.3 |
| Security | Printer access password protected |
| General | |
|---|---|
| Front Panel | SmartScreen graphical display Buttons |
| Certifications | Safety: UL 60950-2, CSA C22.2 (60950-07), and CE EMC: FCC Class A, CE (EN 55022 Class A, EN 55024), CCC, BSMI, KC Environmental: Refillable supply cartridges (ECO) |
| Operating Temperature | 65 to 80�F (18 to 27�C) |
| Humidity | 20-80%, non-condensing |
| Power Requirements | 100-240 VAC, 50-60 Hz, 1.6 A (max) |
| Dimensions | 18.9 x 18.7 x 9.2" (48.0 x 47.5 x 23.4 cm) |
| Weight | 20.0 lb (9.1 kg) |
