| ₹ 58049.92 includes GST and import duties. | |
| B2B customers can avail ₹ 8852.61 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description

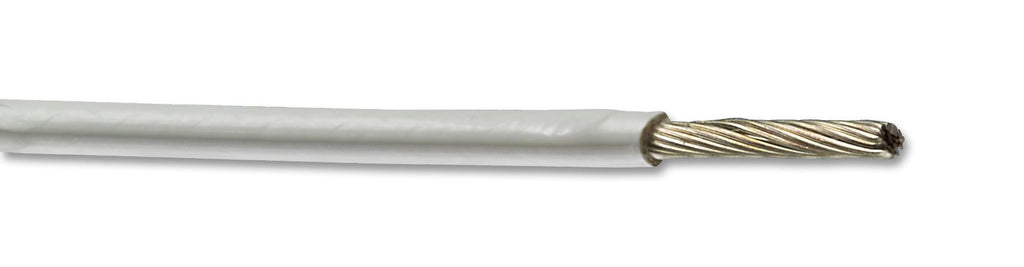

The 44A1111 series from TE Connectivity are hook up wires. These hook up wire features outstanding physical and electrical characteristics of radiation, highly flame retardant, non melting, does not cold flow and mechanically easy handling. Designed mainly for military application where high density and complex circuitry are required.
- Round braid shielded and jacketed cable
- Shielded copper silver coating conductor
- Radiation cross linked modified PVDF jacket
- Conductor size from 30AWG to 8AWG
- Operating temperature range -65�C to +150�C
- Available in variety of jacket colours
- Flame retardant
- Low smoke and low corrosive gas generation
- Resistant to most chemicals
- Operating voltage of 600V
- Flexible
Applications
Industrial, Power Management, Aerospace, Defence, Military
Product details
| Reel Length (Metric) | 100m |
| Conductor Material | Copper |
| Jacket Material | PVDF |
| Approval Specification | - |
| External Diameter | 2.26mm |
| Voltage Rating | 600V |
| Reel Length (Imperial) | 328ft |
| Product Range | - |
| Wire Gauge | 20AWG |
| Jacket Colour | White |
| No. of Max Strands x Strand Size | 19 x 0.203mm |
| Conductor Area CSA | 0.62mm� |
Other details
| Brand | RAYCHEM - TE CONNECTIVITY |
| Part Number | 44A1111-20-9-9 |
| Quantity | Reel of 1 |
| Technical Data Sheet EN |  |
| Drawing EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 56888.92 |
| 3-5 | ₹ 56308.42 |
| 5-10 | ₹ 55147.42 |
| 10+ | ₹ 53986.43 |
Bulk discount will be automatically applied during checkout based on quantity.
