Description

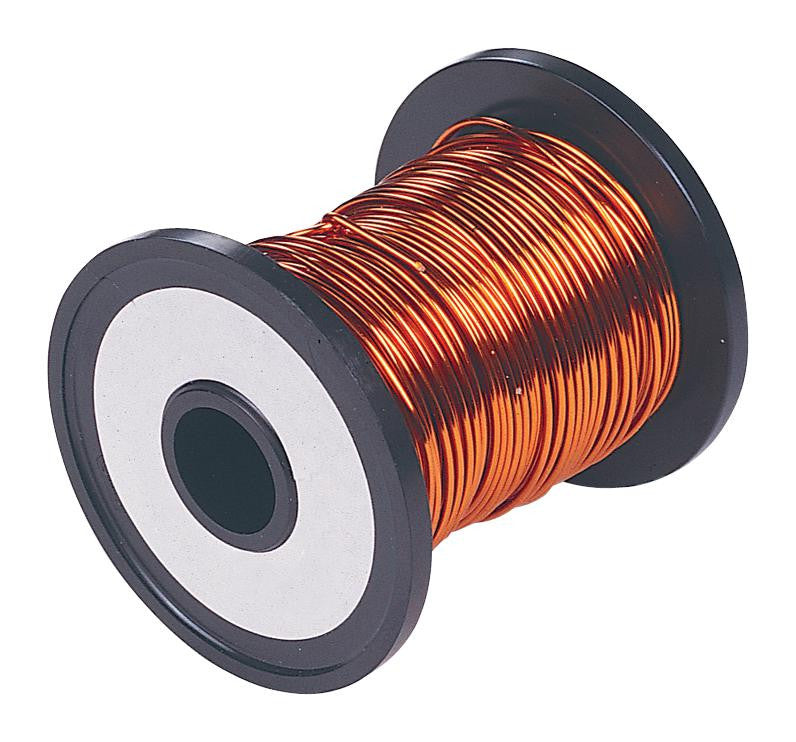

The ECW series from Pro Power are soft grade 2 enamelled copper wires. These wires are compliant with BS EN 60317/20 standard.
- Primary wire insulation material is polyurethane
- Primary wire insulation colour is transparent
- Maximum operating temperature is 155°C
- Melting temperature is 480°C
- BS4520 approved
- Selectable diameters from 0.2mm to 1.5mm
- Current rating range from 0.048A to 2.74A
- Wire size range from 15AWG to 32AWG
- Selectable reel length from 32m to 1850m
Applications
Industrial, Power Management
Product details
| Reel Length (Metric) | 47m |
| Conductor Material | Copper |
| Jacket Material | - |
| Approval Specification | BS 4520, BS 60317/20 |
| External Diameter | 1.25mm |
| Voltage Rating | - |
| Reel Length (Imperial) | 154ft |
| Product Range | - |
| Wire Gauge | 16AWG |
| Jacket Colour | Unjacketed |
| No. of Max Strands x Strand Size | Solid |
| Conductor Area CSA | 1.17mm² |
Other details
| Brand | PRO POWER |
| Part Number | ECW1.25 |
| Quantity | Reel of 1 |
| Technical Data Sheet EN |  |
