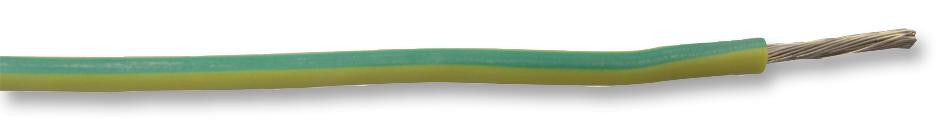

Description
The OLFLEX HEAT 180 SiF series from Lapp Kable are versatile, single core stranded conductors with extended temperature range. These are used in areas with high ambient temperatures where conventional core insulation materials will embrittle after a short while. Typical fields of application includes switchgear cabinet building, appliances and apparatus engineering, electric motor industry, sauna/solarium construction, thermal and heating elements, lighting technology, ventilator engineering, air conditioning technology, oven construction, polymer processing, generator and transformer building.
- Flexible fine wire, tinned copper conductor
- Silicone based insulation
- Nominal voltage is 300V/500V
- Temperature range from -50�C to 180�C
- Selectable conductor cross sectional area from 0.25mm� to 185mm�
- Available in variety of jacket colours
- CE approved
Applications
Industrial, Power Management
Product details
| Reel Length (Metric) | 100m |
| Conductor Material | Copper |
| Jacket Material | Silicone |
| Approval Specification | - |
| External Diameter | 2.5mm |
| Voltage Rating | 300V |
| Reel Length (Imperial) | 328ft |
| Product Range | - |
| Wire Gauge | 18AWG |
| Jacket Colour | Green, Yellow |
| No. of Max Strands x Strand Size | 32 x 0.2mm |
| Conductor Area CSA | 1mm� |
Other details
| Brand | LAPP KABEL |
| Part Number | 0050000 |
| Quantity | Each |
| Technical Data Sheet EN |  |
