Description

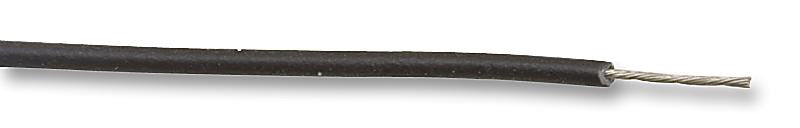

The 3250 BK005 is a 100ft 24AWG 300V black Hook-up Wire with stranded tinned copper conductor and semirigid PVC insulation. This wire has the ability to withstand wear and abrasion, electrical properties and resistance to oil, solvents and chemicals. It provides excellent uniformity for easy handling, stripping and termination.
- 3.5lbs Maximum pull tension
- 0.25mm Insulation thickness
- REACH regulation (EC 1907/2006)
Applications
Automation & Process Control, Microwave, Aerospace, Defence, Military, Industrial
Product details
| Reel Length (Metric) | 30.5m |
| Conductor Material | Tinned Copper |
| Jacket Material | PVC |
| Approval Specification | CSA AWM I A/B FT1, UL 1061 VW-1 |
| External Diameter | 1.12mm |
| Voltage Rating | 300V |
| Reel Length (Imperial) | 100ft |
| Product Range | - |
| Wire Gauge | 24AWG |
| Jacket Colour | Black |
| No. of Max Strands x Strand Size | 7 x 0.2mm |
| Conductor Area CSA | 0.23mm² |
Other details
| Brand | ALPHA WIRE |
| Part Number | 3250 BK005 |
| Quantity | Reel of 1 |
| Technical Data Sheet EN |  |
