Description

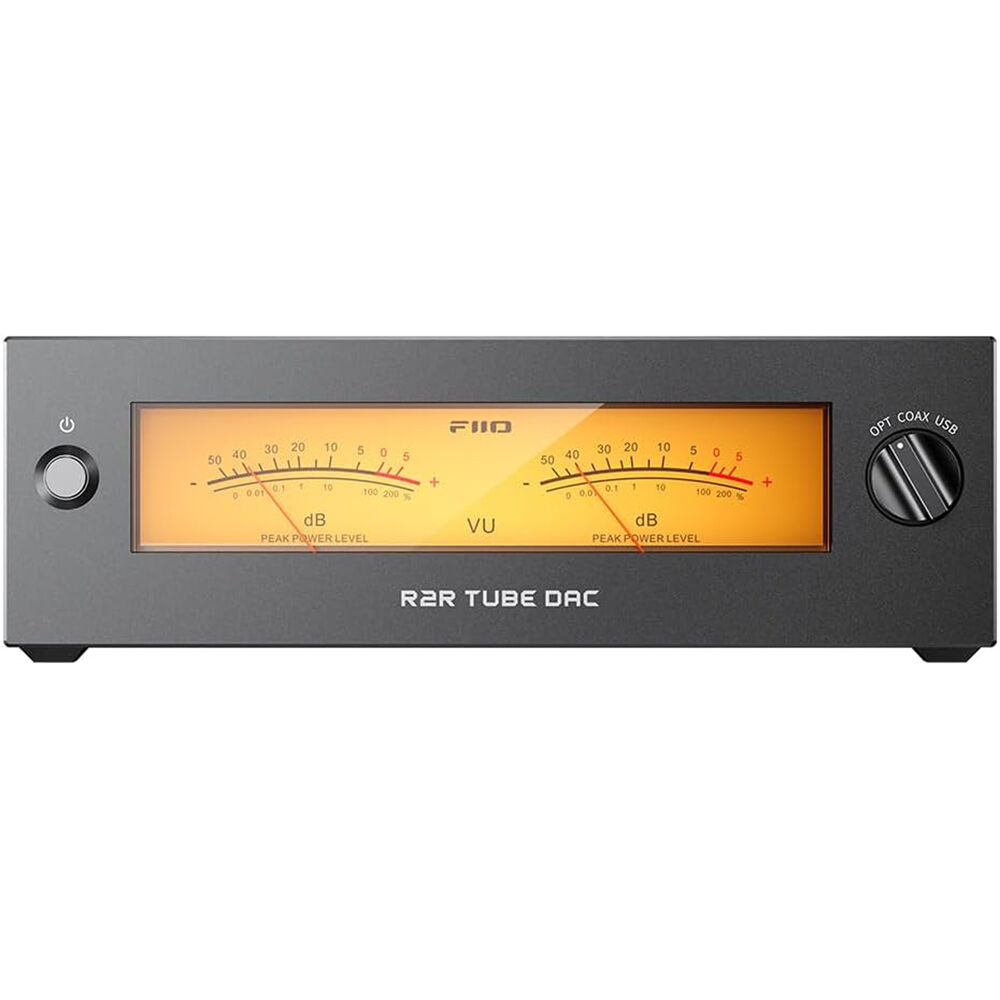

The Warmer R2R Desktop DAC and Tube Amp (Black) from FiiO is designed to provide a warm, vintage-style tube sound in a compact, desktop DAC. The needle-style VU meter and nostalgic physical design was inspired by Hong Kong band, The Wynners, and four E88CC tubes give the listener true tube warmth on every listen.

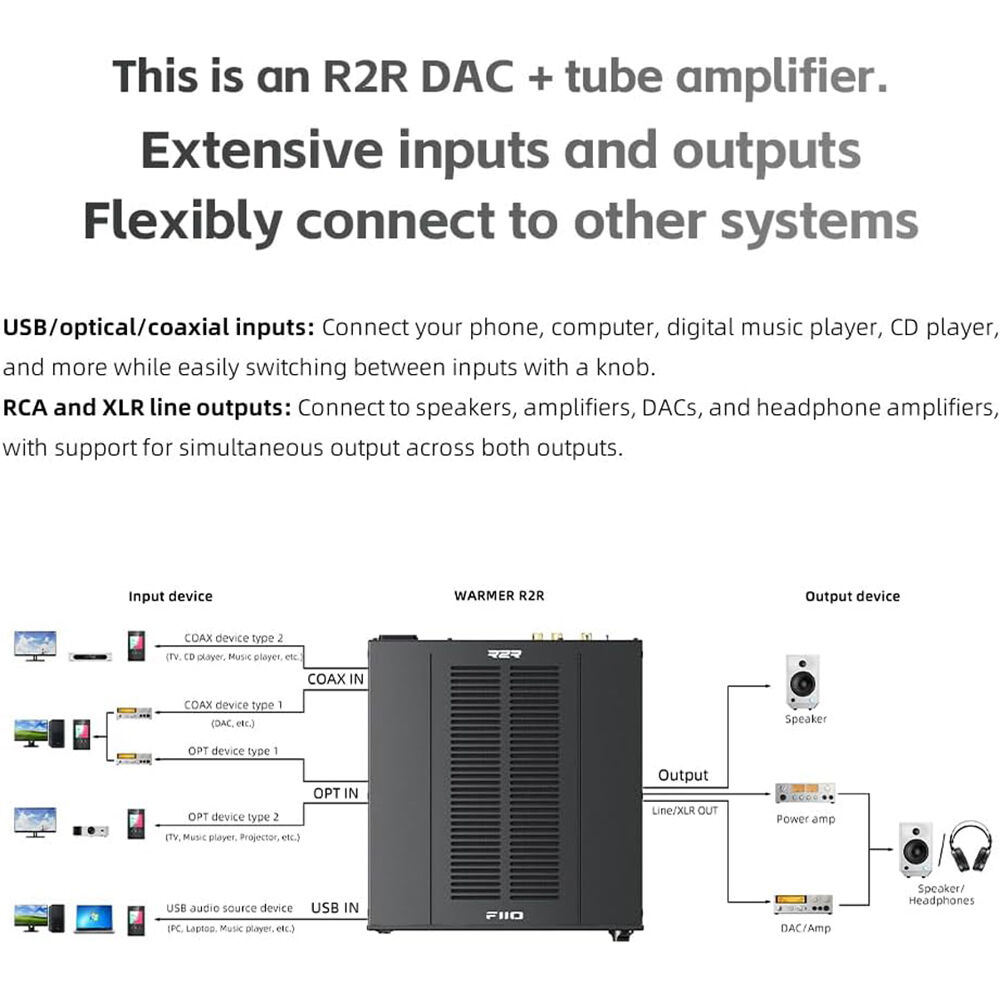

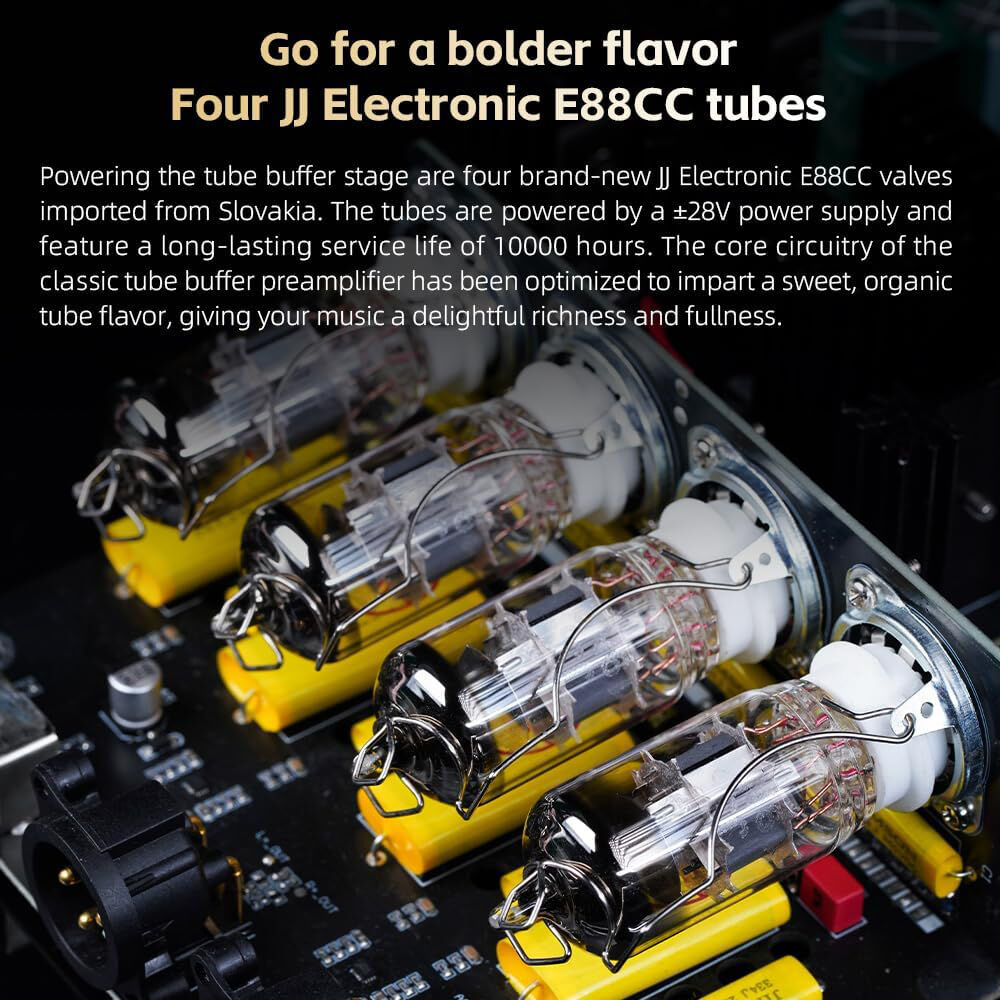

Featuring an array of available connections for users of all kinds of devices, inputs are digital RCA coax/TOSLINK, while analog outputs are stereo RCA and XLR. Phones, computers, legacy audio devices, and more can all be connected and switched seamlessly via physical knob. The proprietary, four-way fully differential R2R DAC is built with no less than 192 high-precision, film-thin resistors (48 per channel), resulting in 0.1% accuracy with 30ppm drift. Four Slovakian JJ Electronic E88CC tubes work with a dedicated ±28V power supply, providing a long 10,000 hours of usage life, reducing the need for repairs and updates to the tube portion of the DAC.
| Form Factor | Desktop |
| Converter Type | D/A Converter |
| Number of Channels | 2 |
| Maximum Sampling Rate | 384 kHz / 32-Bit |
| Number of Microphone Inputs | No |
| Analog Audio I/O | 2x XLR 3-Pin Line Output 2x RCA Line Output |
| Digital Audio I/O | RCA Coaxial AES3 Input TOSLINK Optical S/PDIF Input |
| Form Factor | Desktop |
| Converter Type | D/A Converter |
| Number of Channels | 2 |
| Conversion Formats | ADAT, AES3, S/PDIF (Coaxial), S/PDIF (Optical) |
| Converter Circuitry | D/A Chipset: |
| Display | 1x VU Meter (Backlit) |
| Maximum Sampling Rate | 384 kHz / 32-Bit |
| Number of Microphone Inputs | No |
| Analog Audio I/O | 2x XLR 3-Pin Balanced Line Output 2x RCA Unbalanced Line Output |
| Phantom Power | No |
| Digital Audio I/O | 1x RCA Coaxial AES3 Input 1x TOSLINK Optical S/PDIF Input |
| Host Connection / USB | No |
| USB (Non-Host) | 1x USB-C (Digital Input) |
| Sync I/O | No |
| Network I/O | No |
| MIDI I/O | No |
| Expansion Slots | No |
| Wireless | No |
| Frequency Response | 20 Hz to 20 kHz (Attenuation＜0.6 dB) 20 Hz to 45 kHz (Attenuation＜2.4 dB) |
| Maximum Output Level | 3.3 Vrms |
| Dynamic Range | ≥ 98 dB |
| THD+N | -7 dB / 0.052% |
| Crosstalk | ≥ 96 dB (Single-Ended Line Outputs) ≥ 104 dB (Balanced Line Outputs) |
| Hardware | Master Control: GD32F303RET6 DAC: FIIO Proprietary R2R DAC USB Decoding: SA9312L AMP: 2 x OPA1642AIDR / 4 x E88CC |
| Sample Rates | 96 to 384 kHz |
| Bit Depths | 24 / 32-Bit |
| OS Compatibility | No |
| Mobile Device Compatibility | No |
| Power Requirements | AC Input |
| AC Input Power | Factory Set: 100 to 120 VAC, 50 / 60 Hz |
| Dimensions | 8.8 x 8.4 x 2.6" / 224 x 213 x 67 mm |
| Weight | 6.2 lb / 2.8 kg |
| Package Weight | 8.525 lb |
| Box Dimensions (LxWxH) | 16 x 12.6 x 6" |
