Description

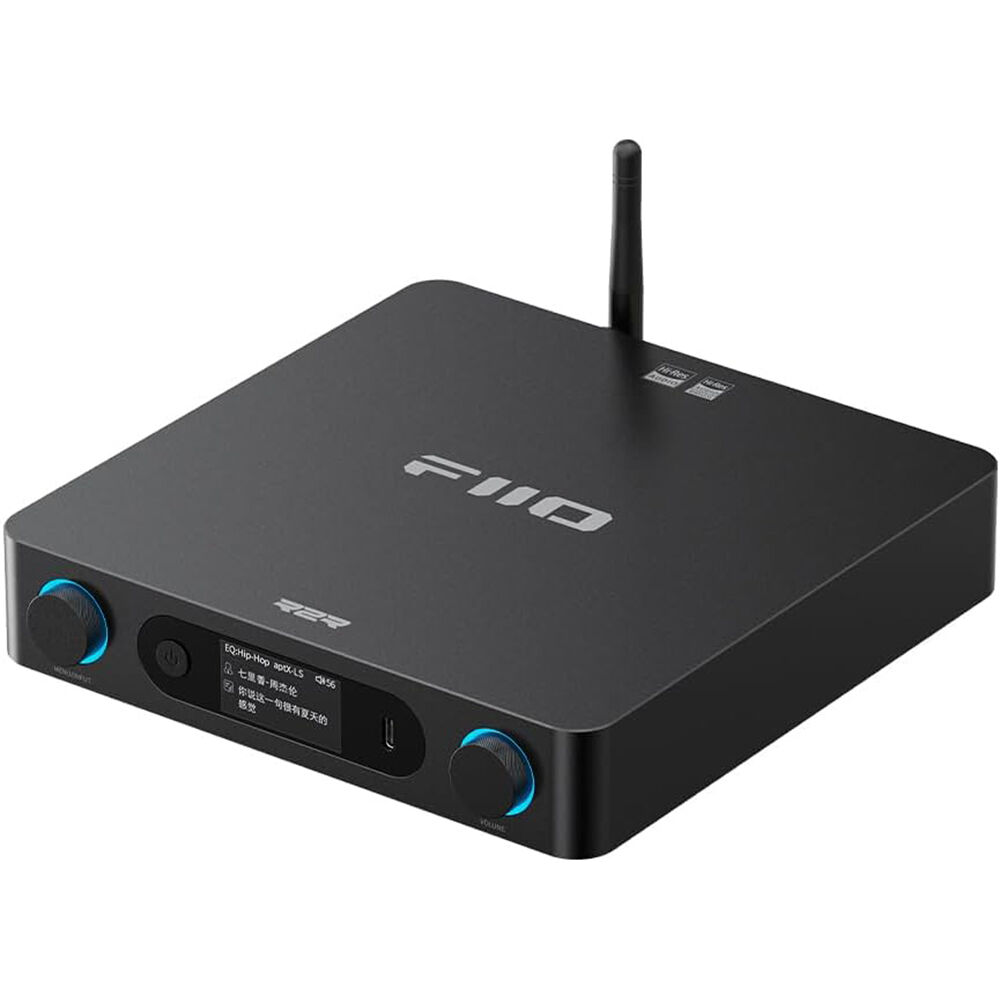

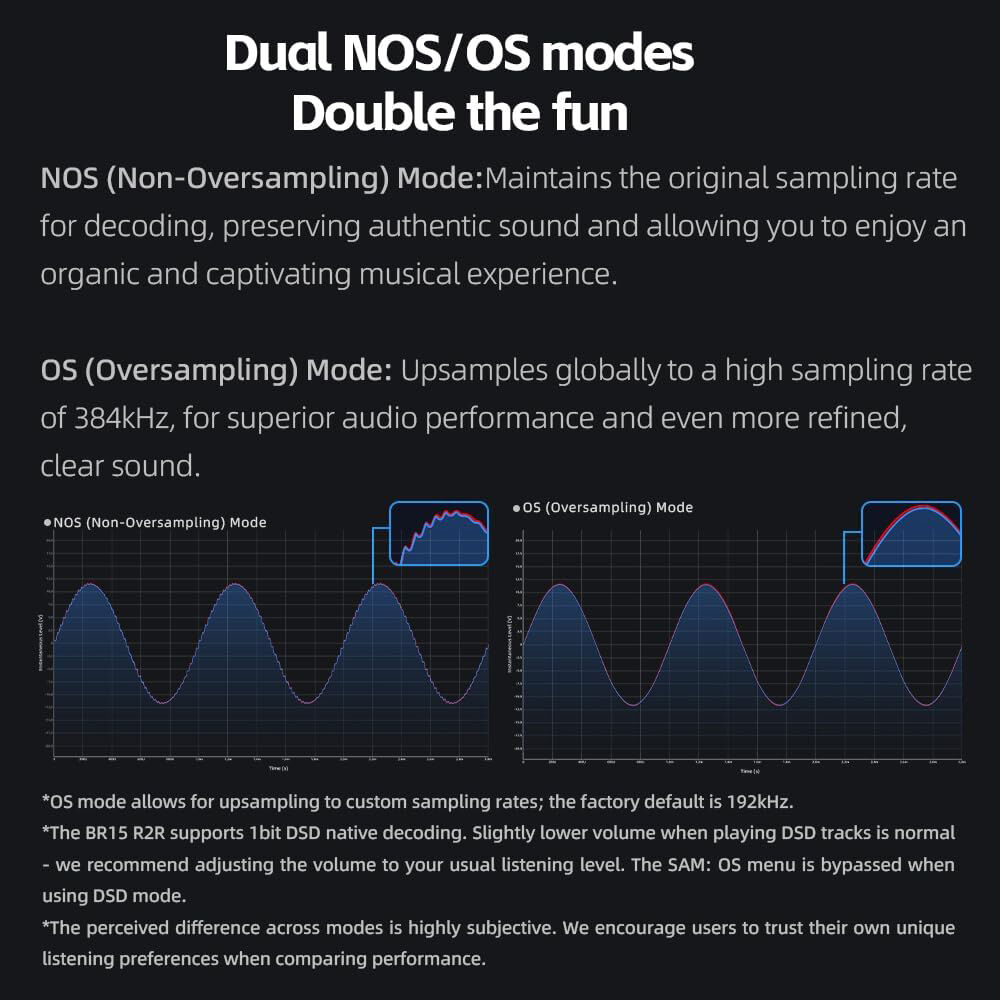

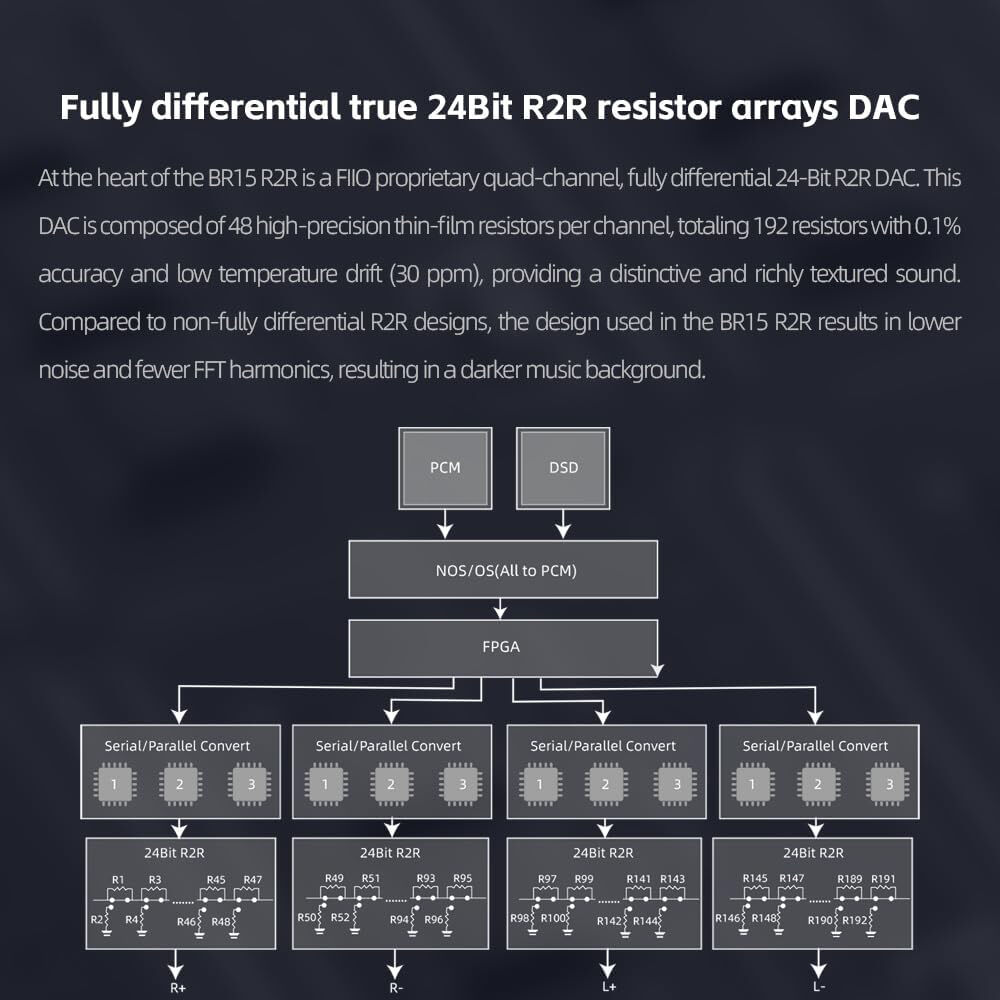

Get the most out of your audio setup with the BR15 R2R Digital-to-Analog Converter with Bluetooth Audio Receiver from FiiO, a desktop DAC with fully differential 24-bit R2R resistor arrays and CD-quality wireless Bluetooth streaming. Sporting up to 384 kHz upsampling via OS mode, you can experience a refined sound with any audio content.

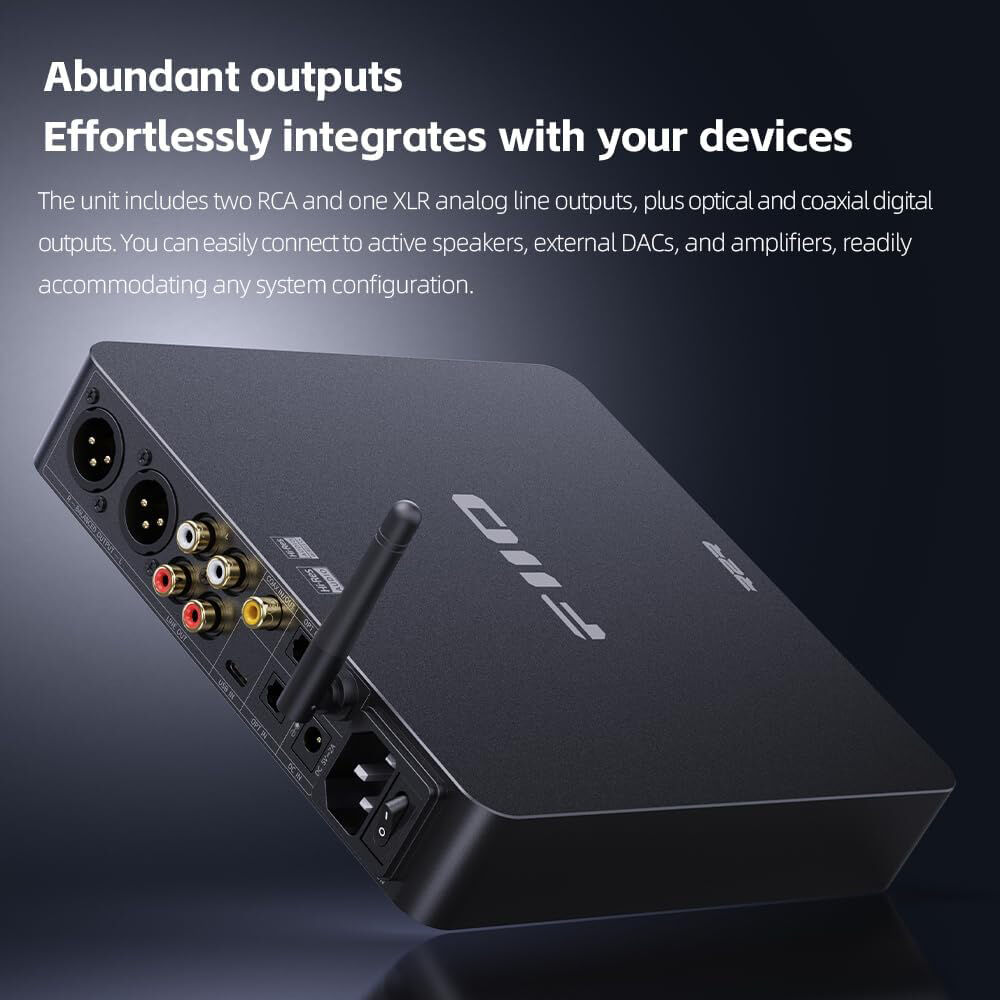

The FiiO DR15 R2R supports 24-bit / 384 kHz decoding for PCM files and up to DSD256 for compatible DSD files. The DAC features plenty of high-quality chips for maximizing sonic performance, including the proprietary true 24-bit R2R chip, a XMOS XU316 USB controller, and a Qualcomm QCC5181 Bluetooth chip. The unit sports a crystal-clear high-contrast LCD display for easy operation, and RGB logo lighting for a stylish look. Connections include optical TOSLINK in and outs, coaxial RCA digital input/output, two balanced XL outputs, two pairs of RCA line outputs, and a front and rear USB-C connection for maximum digital audio quality.
| Form Factor | Desktop |
| Converter Type | D/A Converter |
| Number of Channels | 2 |
| Maximum Sampling Rate | 384 kHz / 32-Bit |
| Number of Microphone Inputs | No Mic Inputs |
| Analog Audio I/O | 2x XLR 3-Pin Line Output 2x Stereo RCA Line Output |
| Digital Audio I/O | TOSLINK Optical S/PDIF Input TOSLINK Optical S/PDIF Output RCA Coaxial S/PDIF In or Out |
| Form Factor | Desktop |
| Converter Type | D/A Converter |
| Number of Channels | 2 |
| Conversion Formats | S/PDIF (Coaxial), TOSLINK |
| Display | 1x 1.47" LCD (Backlit) |
| Maximum Sampling Rate | 384 kHz / 32-Bit |
| Number of Microphone Inputs | No Mic Inputs |
| Analog Audio I/O | 2x XLR 3-Pin Balanced Line Output 2x Stereo RCA Unbalanced Line Output |
| Phantom Power | No |
| Digital Audio I/O | 1x TOSLINK Optical S/PDIF Input 1x TOSLINK Optical S/PDIF Output 1x RCA Coaxial S/PDIF In or Out |
| Host Connection / USB | 2x USB-C |
| USB (Non-Host) | No |
| Sync I/O | No |
| Network I/O | No |
| MIDI I/O | No |
| Expansion Slots | No |
| Wireless | Bluetooth 6.0 *Built-In |
| Frequency Response | 20 Hz to 65 kHz |
| Maximum Output Level | 4.4 Vrms (XLR) 2.2 Vrms (RCA) |
| Dynamic Range | ≥ 112 dB (XLR) ≥ 110 dB (RCA) |
| SNR | XLR Line: ≥ 119 dB (A-Weighted) RCA Line: ≥ 116 dB (A-Weighted) |
| THD+N | XLR Line Outputs: 0.015% (At 1 kHz / 0 dB @ 10 K Ohms) XLR Line Outputs: 0.017% (At 1 kHz / 0 dB @ 10 K Ohms) |
| Crosstalk | XLR Line Outputs: ≥ 112 dB RCA Line Outputs: ≥ 110 dB |
| Noise Floor | XLR: < 5.1 uV (A-Weighted) RCA: < 3.3 uV (A-Weighted) |
| Sample Rates | Up to 384 kHz |
| Sample Rate Conversion | On Digital I/O |
| Bit Depths | Up to 32-Bit |
| Digital Audio Decoding | PCM, DSD |
| OS Compatibility | No |
| Power Requirements | AC Input, DC Input |
| AC Input Power | Universal: 100 to 240 VAC, 50 / 60 Hz |
| DC Input Power | 5 VDC at 2A |
| Dimensions | 8.3 x 7.4 x 1.7" / 210 x 188 x 42 mm (with Feet) |
| Weight | 1.7 lb / 760.0 g |
| Package Weight | 2.75 lb |
| Box Dimensions (LxWxH) | 12.2 x 9.5 x 2.6" |
