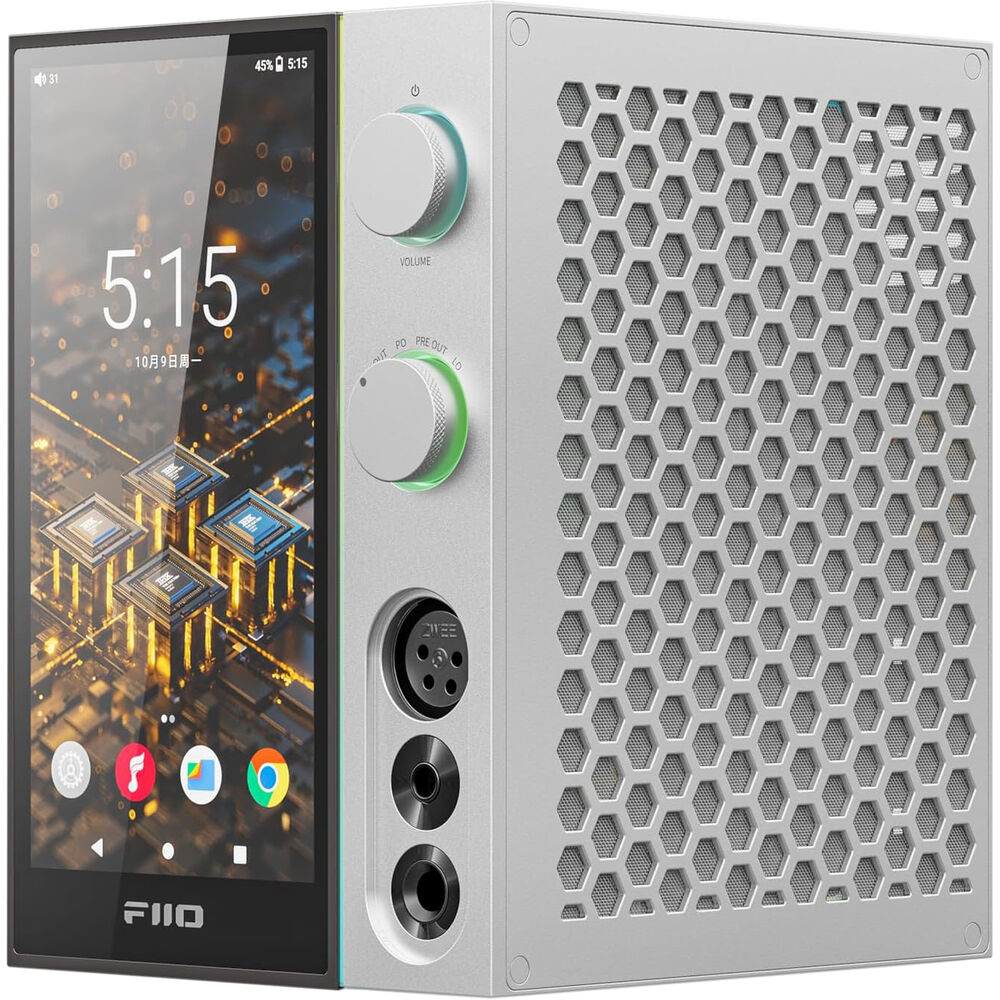

FiiO R9 All-in-One Desktop Hi-Fi Streaming Player & Amplifier

8-Channel DACs

The left and right audio signal each get an ES9038PRO DAC with 8 independent D/A converters, connected in parallel for fully differential output that results in -122 db THD+N, and 132 dB DNR values.

8-Channel THX AAA 788+ Headphone Amp

At a 102% higher output than last generation's R7, the R9 amp can output 7300 mW at 32 ohms and is connected in parallel via 2x2 groups for a 4-way fully balanced design. Comb-shaped heatsinks and an optimized circuit layout help with heat dissipation for continuous, stable, high-power output.

Hi-Fi 5-Stage Audio Architecture

IV, LPF, gain, pre-amplification, and current expansion comprise the 5-stage Hi-Fi architecture of the R9. They use SiGe-constructed OPA2211 op-amps to ensure optimal performance as you dial in your preferred listening volume. Thanks to five levels of precise gain, you can have a high-quality listening experience, even if using IEMs or hard-to-drive headphones.

Carefully Designed PCB

The four major portions of the R9 include the digital components, power supply, DAC, and headphone amp. All of them have been carefully implemented within the R9 on their own PCBs, and separated to avoid crosstalk. Additional crosstalk mitigation comes in the form of the DAC and THX headphone amp being shielded from one another via metal. The overall result of this precision engineering is an accurate and clean audio signal.

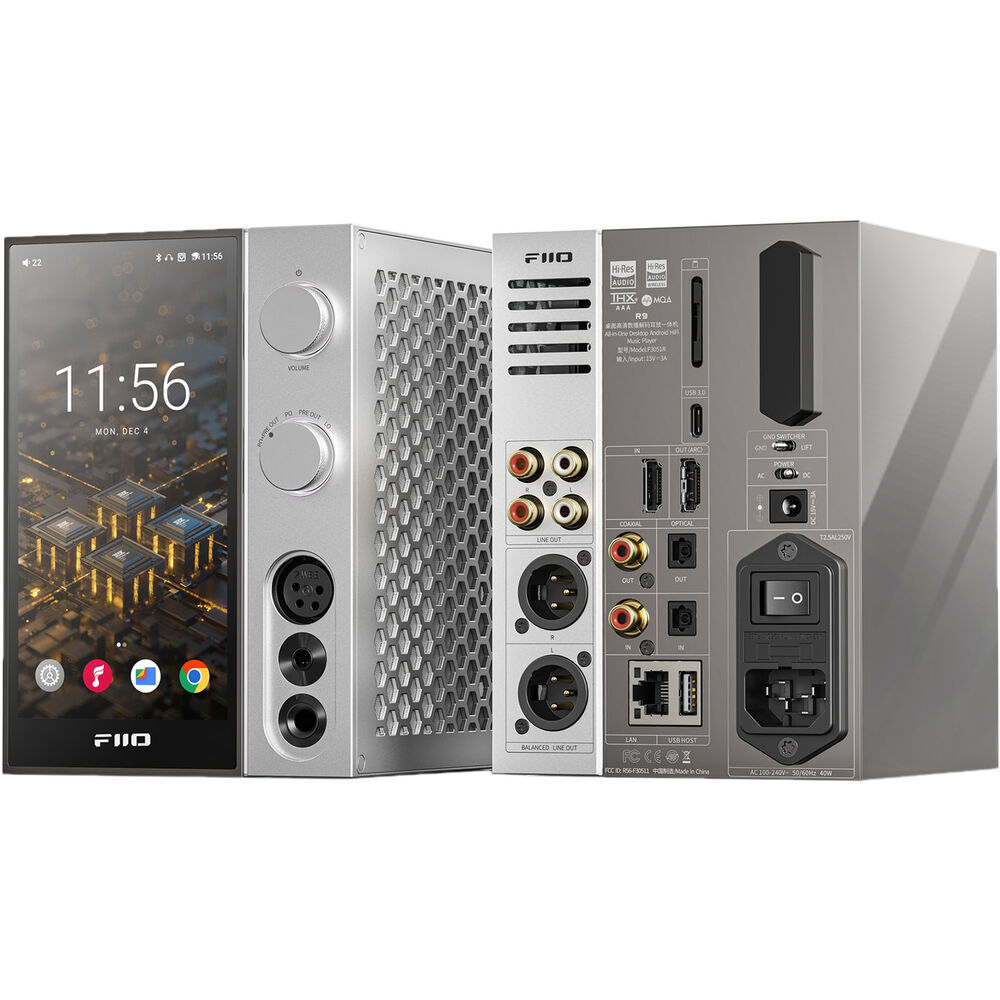

Multiple Connections

A wide variety of inputs and outputs on the front and rear of the R9 allow you to use it as the centerpiece of an expanding, modular Hi-Fi system of your own design. It can support a host of audio connections, and a USB-C and USB-A port can add functionality for optional hard drives and devices. The full list of connections are below:

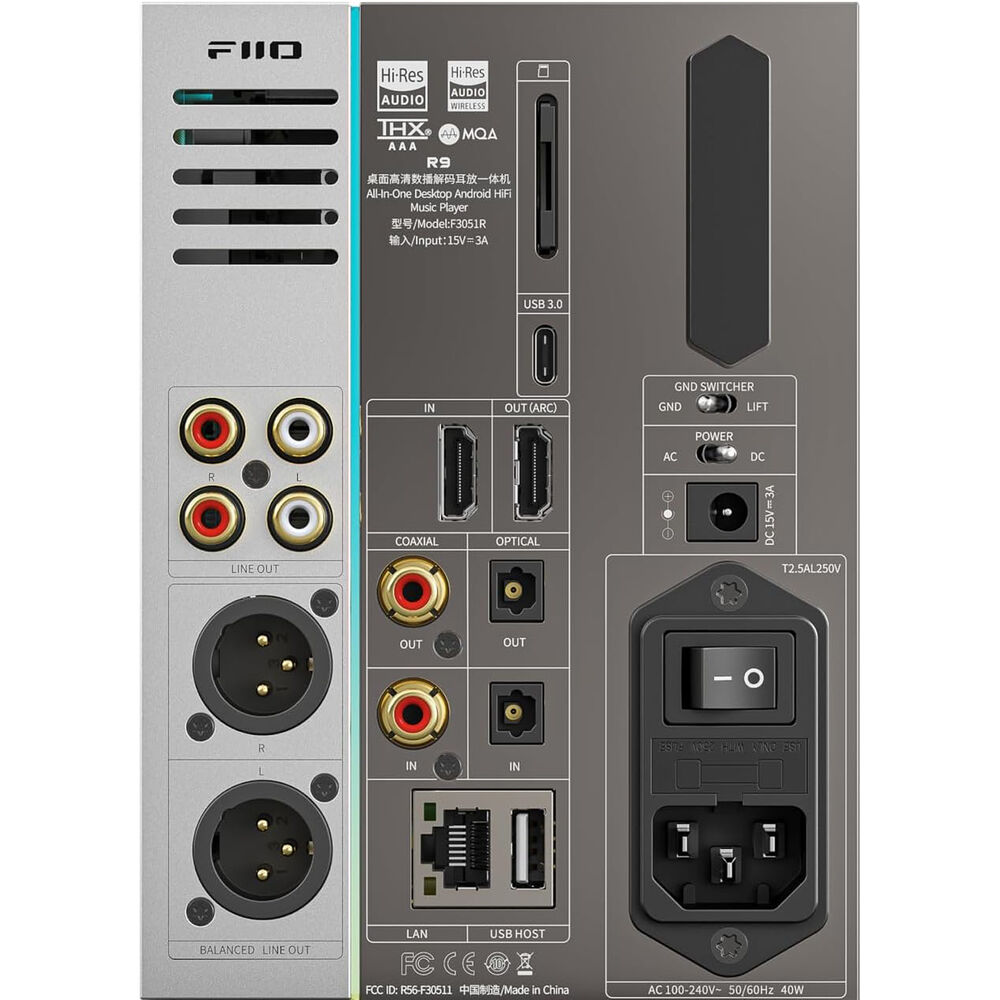

• Rear Connections: 1 x HDMI (In), 1 x HDMI (ARC Out), 2 x RCA (Out), 1 x Optical (In & Out), 1 x Coaxial (In & Out), 2 x 3-pin XLR balanced (Line Out), 1 x USB-C, 1 USB-A, and 1 x Ethernet

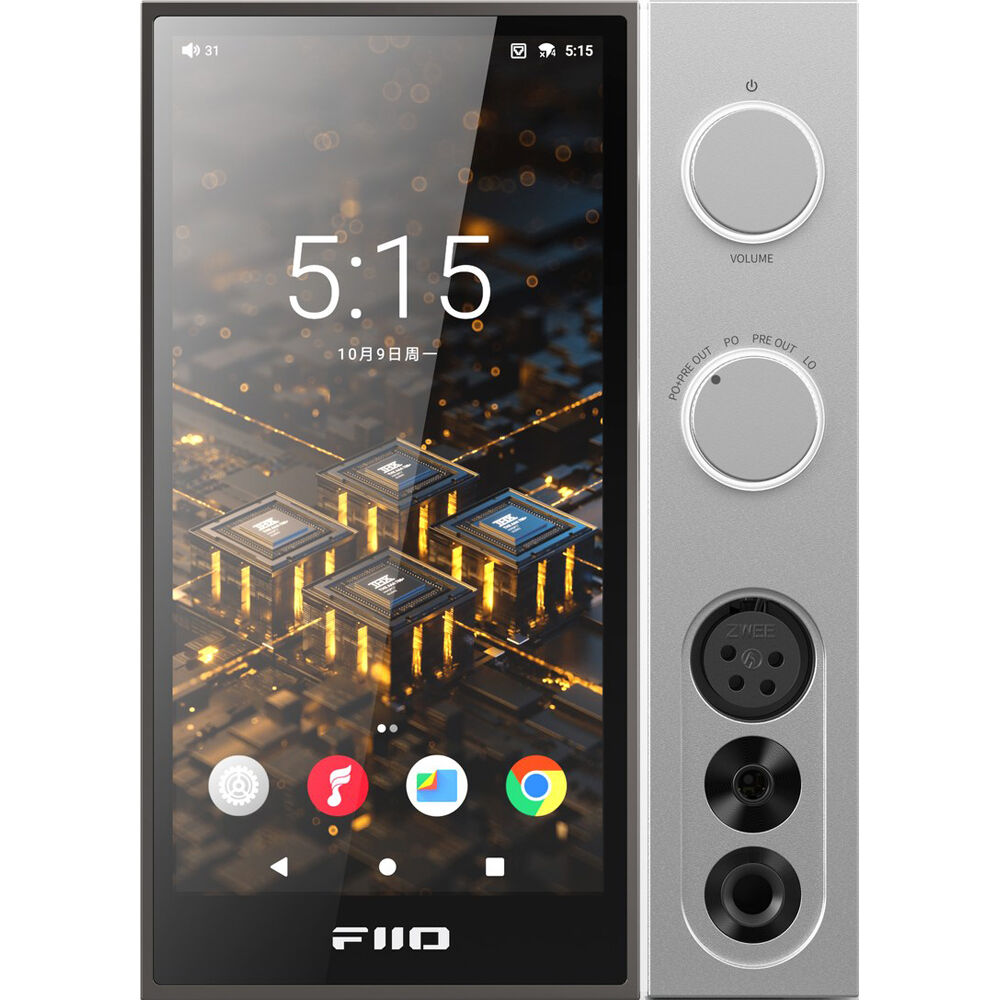

• Front Connections: 1 x 6.35mm, 4.4mm balanced, and 4-pin XLR balanced headphone outputs



Audio Modes

• Android Mode: Use 3rd party apps, such as streaming services.
• Pure Music Mode: An exclusive FiiO mode for more immersive music.
• USB DAC Mode: Improve the sound of any connected PC or mobile device.
• Bluetooth Receiver Mode: Stream high-quality audio through the R9. Supports aptX Adaptive, LDAC, and other codecs
• AirPlay Receiver Mode: Wirelessly connect an Apple iOS device to boost its sound quality.
• Roon Ready Mode: Gain an ergonomic player in seconds via the R9's Roon Ready certification.
• Coaxial/Optical Decoding Mode: Decode audio from connected components.
• HDMI Input: Improve the audio of connected devices, such as gaming consoles and Blu-ray players
• HDMI ARC: Improve the audio of your TV or projector's connected devices and integrated apps

Output Modes

With four output modes, you can use the built-in knob to easily switch between connected headphones or speakers.

• PO + PRE OUT (Default): Front headphone output and rear line-out output (volume adjustable)
• PO: Only the front headphone output
• PRE OUT: Only the rear line-out output (volume adjustable)
• LO: Only the rear line-out (fixed level output)



AC & DC Power

Built into the R9 is a 40W low-noise, industrial-grade power supply that supports ultra-wide input voltages (85 to 305 VAC) or an external DC power supply. Each stage of the audio circuit employs precision LDOs for voltage stabilization and clean power.

Hi-Fi Internal Components

Whether you play audio from the R9 or use it to improve the audio quality of a connected device, its ability to produce such high fidelity sound is thanks to a host of premium internal components.

• 4th gen phase-locked loop FPGA and dual low phase noise femtosecond crystal oscillators, for a high-precision, low-jitter unified clock to deliver a pure and stable audio signal chain
• 8-Channel pair of ES9038PRO DACs with 8-channel THX AAA 788+ headphone amp
• Qualcomm Snapdragon 660 core
• Qualcomm QCC5125 chipset for Bluetooth LDAC, aptX Adaptive, aptX LL, aptX HD, aptX, AAC, and SBC support
• XMOS 16-core XU316 chipset with support for 768 kHz/32-bit audio
• 5 sets of silver-plated oxygen-free copper wires for pure transmission and minimal loss
• Tulip-shaped Neutrik gold-plated plug with anti-oxidation
• 12 wide-operating temperature, low-loss metallized film capacitors and 70 high-precision low-noise film resistors for low noise and high-quality in hot or cold environments
• ELNA electrolytic capacitors for improved sound quality



Additional Features

• Roon Ready
• Luxury-care inspired dual-color scheme and metal body with fingerprint and scratch resistance
• Dynamic light bar and RGB lights that ring the base of the analog knobs
• Dual-band Wi-Fi and 100 Mb/s Ethernet
• Built-in overheating and over-voltage protections
• Create a personalized screensaver and clock interface
• Side honeycomb heat dissipation vents
• Rear heat dissipation grille

FiiO R9 Specs

Compatibility

Not Specified by Manufacturer

Panel Type	LCD
Display Size	6"
Native Resolution	1080 x 2160
Touchscreen	No

USB I/O	1 x USB-C 3.0 / 3.1/3.2 Gen 1 Female Input 1 x USB-A Female Input
Video I/O	1x HDMI Input 1x HDMI Output
Audio I/O	2x RCA Output (Rear) 1x RCA Coaxial Input (Rear) 1x RCA Coaxial Output (Rear) 1x TOSLINK Optical Input (Rear) 1x TOSLINK Optical Output (Rear) 2x XLR 3-Pin Output (Rear) 1x RJ45 Input/Output (Rear) 1x 1/4" Headphone Output (Front) 1x 4.4 mm Headphone Output (Front) 1x XLR 4-Pin Headphone Output (Front)
Media/Memory Card Slot	Single Slot: SD (Unspecified Type)

Wireless	Yes
Mobile App Compatible	Yes: Android & iOS App Name: FiiO Music Functionality: Remote Control

Power Source	AC Input (Included)
AC Input Power	100 to 240 VAC, 50 / 60 Hz
DC Input Power	15 VDC at 3 A

Color	Silver
Cable Length	Not Specified by Manufacturer
Dimensions	6.3 x 5 x 4.5" / 160 x 127 x 115 mm
Weight	5 lb / 2271 g

Package Weight	9.04 lb
Box Dimensions (LxWxH)	10.6 x 10.6 x 9.1"
