Description

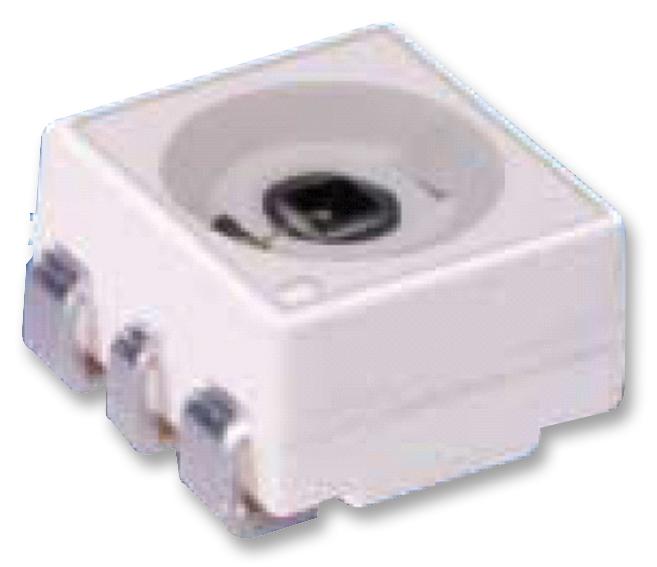

The LRG6SP-CADB-1-1 is a red Thinfilm LED with a wide brightness and high luminous efficiency. It provides improved corrosion robustness. InGaAlP Thinfilm technology LED is suitable for surface-mount assembly method. It is complies to MSL Level 2 according to JEDEC J-STD-020D.01.
- 12V Reverse voltage
- 2kV According to ANSI/ESDA/JEDEC JS-001 (HBM, class 2) ESD withstand voltage
Applications
LED Lighting, Automotive
Warnings
ESD sensitive device, take proper precaution while handling the device. Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| Product Range: Advanced Power TOPLED Series |
| LED Colour: Red |
| Wavelength Typ: 629nm |
| Viewing Angle: 120° |
| Luminous Flux @ Test: 19lm |
| Forward Current If Max: 200mA |
| Forward Current @ Test: 140mA |
| Forward Voltage @ Test: 2.1V |
| Luminous Intensity @ Test: 7.1cd |
| Power Dissipation Pd: 560mW |
| Automotive Qualification Standard: - |
| MSL: MSL 2 - 1 year |
Other details
| Brand | AMS OSRAM GROUP |
| Part Number | LR G6SP-CBEA-1-1 |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
