| ₹ 3695.07 includes GST and import duties. | |
| B2B customers can avail ₹ 563.5 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

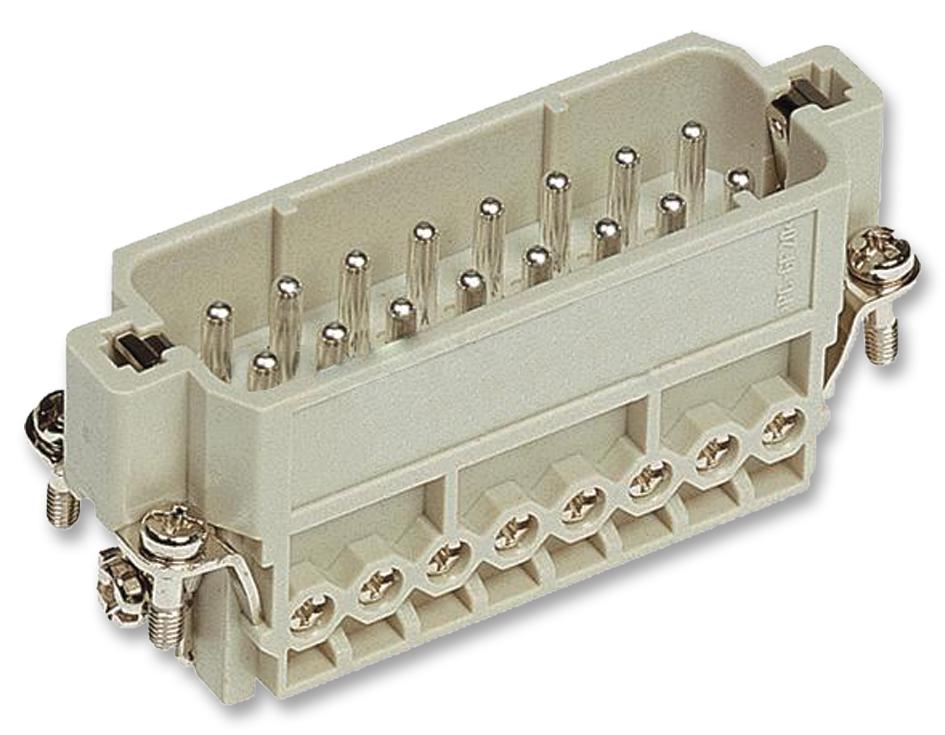

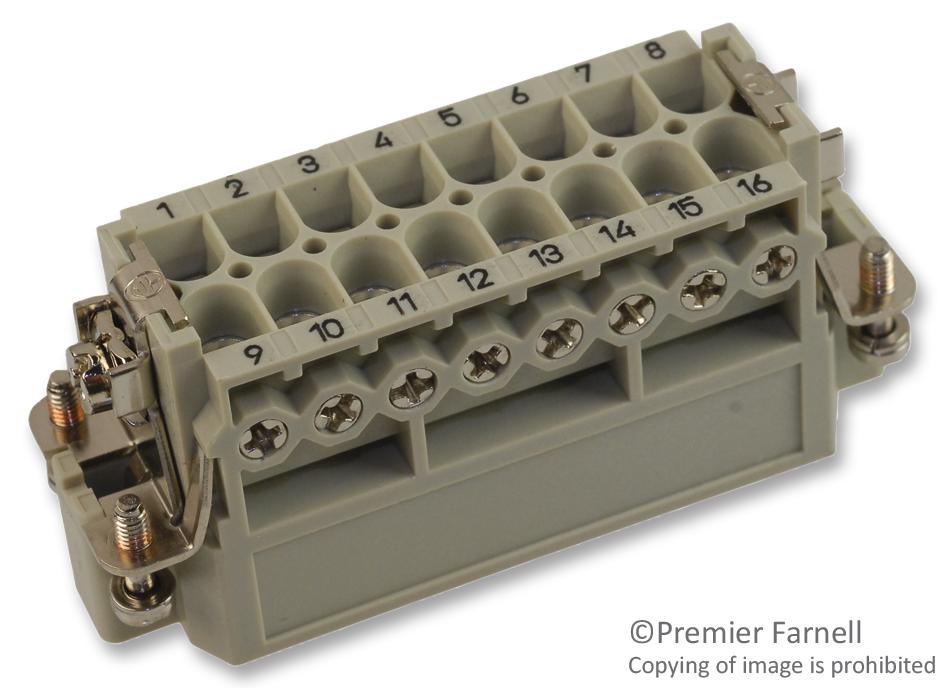

The 0920 016 2612 from Harting is a Han A series 16 position light grey (RAL 7032) colour male insert screw terminal with 16A size.
- Mechanical working life of greater than or equal to 500 mating cycles
- Limiting temperature range from -40°C to 125°C
- Rated current of 16A
- Rated voltage of 250V
- Wire cross section is 0.75mm² to 2.5mm²
- Copper alloy contacts and polycarbonate insert material
- UL94 V-0 flammability
- UL, CSA, GL and IEC 61984 approved
- Insulation resistance is greater than or equal to 10 ohm
Industrial
Other details
| Brand | HARTING |
| Part Number | 0920 016 2612 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| CAD Multiple Formats EN | |
| Drawing EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 3621.17 |
| 3-5 | ₹ 3584.22 |
| 5-10 | ₹ 3510.32 |
| 10+ | ₹ 3436.42 |
Bulk discount will be automatically applied during checkout based on quantity.
