Description

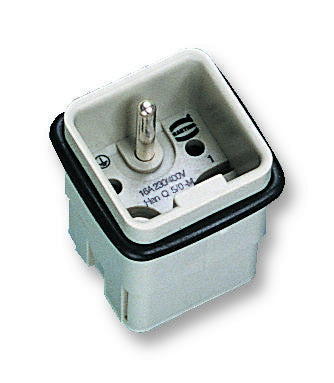

The 0912 005 3001 is a Han Q 5-position Male Crimp Terminal Insert for Harting Han Q® series, 3A size, 0.14 to 2.5mm² wire cross section area with crimp terminals and one protective earth conductor. Made of polycarbonate, RAL 7032 (light grey) colour insert.
- 500 Mating cycles
- UL94V-0 Flammability rating
- 16A Current rating
- 4kV Rated impulse voltage
- UL94V-0 Flammability rating
Applications
Industrial
Product details
| Contact Material | - |
| Contact Plating | - |
| Rectangular Shell Size | 3A |
| Heavy Duty Contact Type | Crimp Pin - Contacts Not Supplied |
| Wire Size AWG Max | - |
| No. of Contacts | 6Contacts |
| Product Range | Han Q Series |
| Wire Size AWG Min | - |
| Current Rating | 16A |
| Gender | Plug |
Other details
| Brand | HARTING |
| Part Number | 0912 005 3001 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Drawing EN | |
