Description

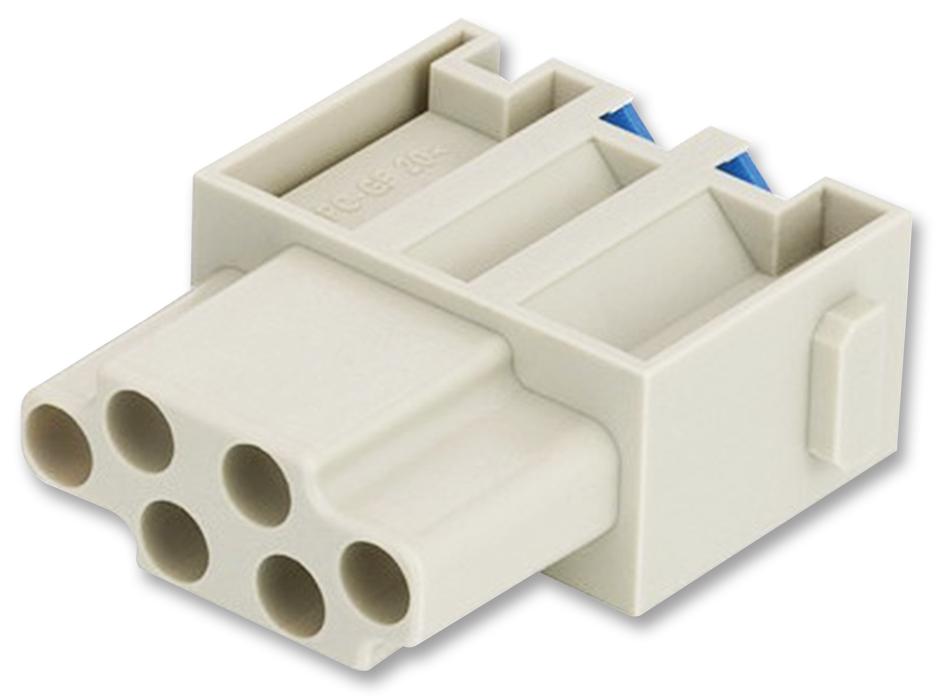

The 09 14 006 2733 from Harting is a Han-Modular® series Han E® Quick Lock® female module with 6 contacts. It is approved by CSA-C22.2 No. 182.3 PVVA8.E318390, UL 1977 ECBT2.E235076 and UL 2237 PVVA2.E318390 standards. The Quick Lock® male module specifications are according to IEC 61984 and EN 60664-1 standards.
- Han-Quick Lock® termination, pollution degree 3, >= 500 mating cycles
- 0.5mm² to 2.5mm² conductor cross section
- 16A, 500V, 6KV, 3 electrical data according to IEC 61984 standards
- Rated current is 16A, rated voltage is 500V, rated impulse voltage is 6KV
- Rated voltage according to UL is 600V, contact resistance is <= 1mohm
- Flammability according to UL94 V-0
- Material (insert) is polycarbonate, colour (insert) is RAL 7032 (pebble grey)
- Material (contacts) is copper alloy and surface (contacts) is silver plated
- Limiting temperature range from -40°C to +125°C, net weight is 19.76g
Applications
Industrial
Product details
| Product Range: Han-Modular |
| Heavy Duty Connector Type: Insert |
| No. of Contacts: 6 Contacts |
| Rectangular Shell Size: - |
| Gender: Receptacle (View Associated Connectors) |
| Heavy Duty Contact Type: Push Lock Socket |
| Current Rating: 16A |
Other details
| Brand | HARTING |
| Part Number | 09 14 006 2733 |
| Quantity | Each |
| Technical Data Sheet EN |  |
