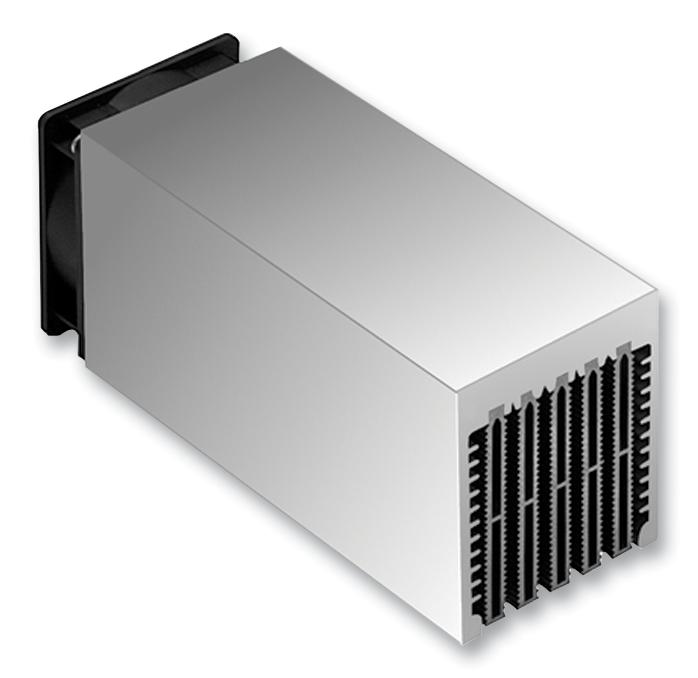

The LA 9/150 24V is a Cooling Aggregate with axial fan, made of aluminium. The electric devices mounted on the cooling aggregate bring the developed dissipation loss as a thermal output into the construct cooling aggregate by means of heat conduction. The existing fan produces an air flow which is navigated to the internal structure in a cooling aggregate and dissipates the inserted heat to the outside.
- Geometry of hollow-fin optimising the air flow
- Particularly effective heat dissipation
- Compact construction
- Semiconductor mounting surface for milled flat
- 6W Power input
- -20 to 75°C Temperature range
- Ball bearing ebm-papst fan
Applications
HVAC, Thermal Management
Product details
| Thermal Resistance |
0.17°C/W |
| External Height - Metric |
83mm |
| External Width - Metric |
80mm |
| External Length - Metric |
150mm |
| Flow Rate Max |
80m³/h |
| Noise Rating |
48dBA |
| Heat Sink Mounting |
Surface Mount |
| Heat Sink Material |
Aluminium |
| External Height - Imperial |
3.27" |
| External Width - Imperial |
3.15" |
| External Length - Imperial |
5.91" |
| Product Range |
- |
Other details
| Brand |
FISCHER ELEKTRONIK |
| Part Number |
LA 9/150 24V |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
