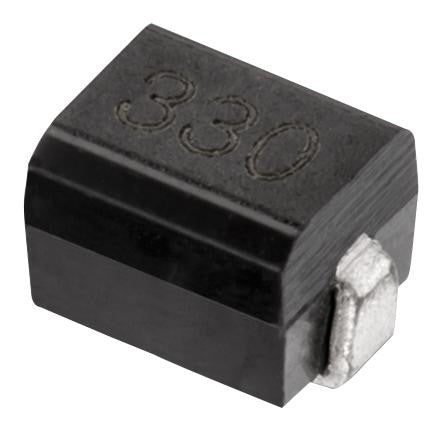

This is a Surface Mount High Frequency Inductor, WE-GFH Series, 10 µH, 500 mA, 1210 [3225 Metric], Wirewound product from WURTH ELEKTRONIK with the model number 744764910
Product details
| Product Range |
WE-GFH Series |
| Inductance |
10µH |
| DC Current Rating |
500mA |
| High Frequency Inductor Case |
1210 [3225 Metric] |
| Inductor Construction |
Wirewound |
| DC Resistance Max |
1.105ohm |
| Inductance Tolerance |
± 10% |
| Self Resonant Frequency Min |
40MHz |
| Packaging |
Each |
Other details
| Brand |
WURTH ELEKTRONIK |
| Part Number |
744764910 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
| Drawing EN |
|
