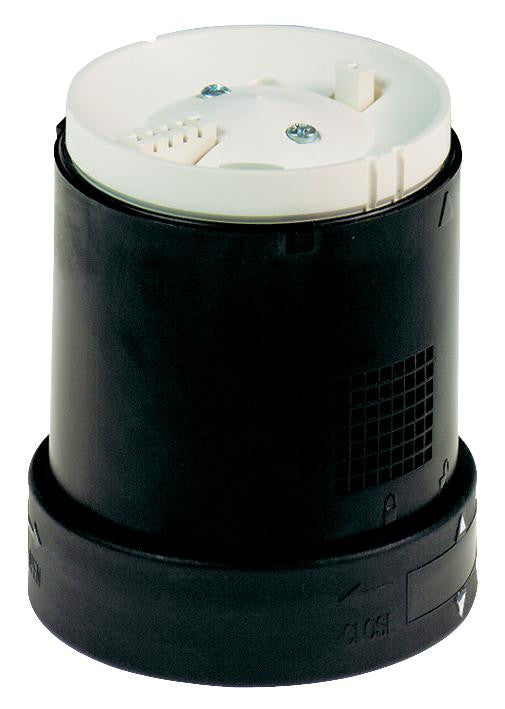

This Harmony XVB unit is an audible signalling unit for indicating the various states of operation for a device or installation. Examples include start, stop machine, no material, call technical staff and fault signalling.
- Environmental protection to IP65
- Dimensions (�xH): 70mm x 63mm
Product details
| Current Consumption |
25mA |
| Operating Temperature Min |
-25�C |
| Operating Temperature Max |
50�C |
| Supply Voltage V AC |
230V |
| Product Range |
XVB Series |
| Tones |
Continuous, Intermittent |
| Sound Level SPL |
90dB |
| IP / NEMA Rating |
IP65 |
| Resonant Frequency |
2.8kHz |
| Supply Voltage V DC |
230VDC |
| External Depth |
70mm |
Other details
| Brand |
SCHNEIDER ELECTRIC |
| Part Number |
XVBC9B |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
