Description

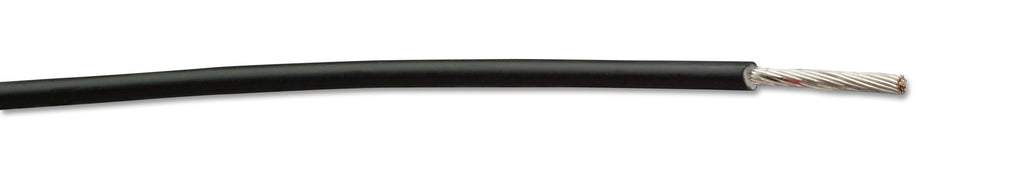

The FLDWC0311-0.75-0 is a 100m dual wall FlexLite� Hook-up Wire with 0.75mm cross-section area, tin plated copper conductor of 24AWG wire, black radiation cross-linked modified PVDF jacket of 0.05mm thickness, radiation cross-linked modified polyalkene primary insulation of 0.10mm thickness, 600V rated voltage.
- 125�C Rated temperature
- VW1 Flammability rating
- 1524MR/km Insulation resistance
- 8kV Spark test
Applications
Communications & Networking
Product details
| Reel Length (Metric) | 100m |
| Conductor Material | Copper |
| Jacket Material | PVDF |
| Approval Specification | - |
| External Diameter | 1.75mm |
| Voltage Rating | 600V |
| Reel Length (Imperial) | 328ft |
| Product Range | - |
| Wire Gauge | - |
| Jacket Colour | Black |
| No. of Max Strands x Strand Size | 19 x 0.23mm |
| Conductor Area CSA | 0.75mm� |
Other details
| Brand | RAYCHEM - TE CONNECTIVITY |
| Part Number | FLDWC0311-0.75-0 |
| Quantity | Reel of 1 |
| Technical Data Sheet EN |  |
| Miscellaneous EN | |
