Description

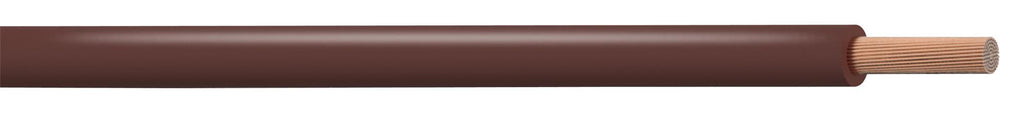

The PP001210 from Pro Power is a single core, brown colour tri-rated flexible PVC equipment wire in 100m reel length. This high temperature, flame retardant wire is designed to use in switch control, relay and instrumentation panels of power switchgear. It is widely used for internal connection in rectifier equipment, motor starters and controllers. This wire has voltage rating (Uo/U) of 450V/750V (UL, CSA), 600V/1KV (BS 6231) & 300V/500V, 450V/750V (BS EN 50525-2-31). It is also referred as BS 6231 cable, H07V2-K or panel wire. This PVC equipment wire is made in accordance with BS EN 50525-2-31, BS 6231 type CK, UL 758, UL 1015, CSA C22.2 No. 210 (HD 21.7 S2) #LL246095 and BS EN/IEC 60332 standards.
- Class 5 flexible copper conductor according to BS EN 60228 standard
- PVC (polyvinyl chloride) type TI3 insulation according to BS EN 50363 standard
- Temperature rating of 105�C (UL, CSA) and 90�C (BS 6231)
- Nominal cross sectional area is 6mm� and nominal thickness of insulation is 0.8mm
- Wire size of 10AWG
- Nominal overall diameter of 4.85mm
- Minimum bending radius of 6 x overall diameter
- Maximum resistance of conductor 3.3ohm/Km at 20�C
- Peak current rating of 53A and voltage drop of 3.8mV/A/m
Applications
Industrial
Product details
| Reel Length (Metric) | - |
| Conductor Material | Copper |
| Jacket Material | PVC |
| Approval Specification | BS 6231 Type CK, BS EN 50525-2-31, BS EN/IEC 60332, CSA C22.2 No. 210, UL 758 |
| External Diameter | 4.85mm |
| Voltage Rating | 600V |
| Reel Length (Imperial) | - |
| Product Range | - |
| Wire Gauge | 10AWG |
| Jacket Colour | Brown |
| No. of Max Strands x Strand Size | 84 x 0.3mm |
| Conductor Area CSA | 6mm� |
Other details
| Brand | PRO POWER |
| Part Number | PP001210 |
| Quantity | 1 Metre |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 435.29 |
| 3-5 | ₹ 430.84 |
| 5-10 | ₹ 421.96 |
| 10+ | ₹ 413.08 |
Bulk discount will be automatically applied during checkout based on quantity.
