| ₹ 156.09 includes GST and import duties. | |
| B2B customers can avail ₹ 23.8 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

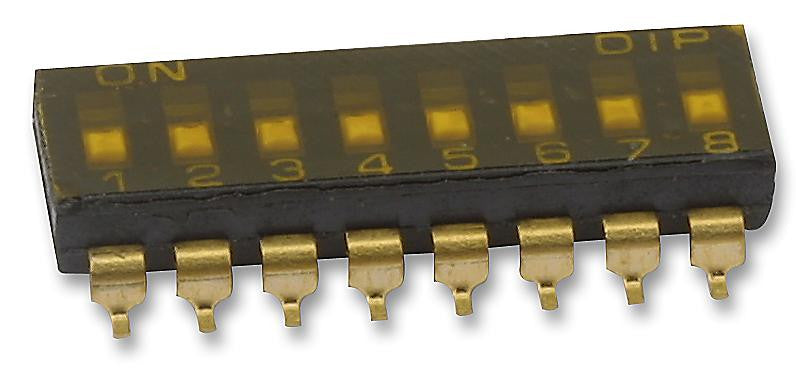

The MCDM(R)-08-T is a single-pole single-throw (SPST) 8-way low profile DIL Switch with white nylon thermoplastic recessed actuator, surface-mounting DIP switch insertable. The DM series switch has gold plated over nickel contact, gold terminal and black high temperature base/cover. Splay terminals allow for automatic insertion by IC insertion machine. Insert moulding of terminals and ultrasonic welding improve flux proofness and enable flux washing in whole by top tape sealing. Double contacts offers high reliability. Terminal plating by gold give excellent results when soldering.
- Vapour phase solderable, IR-reflow solderable
- 100MR at 500V Insulation resistance
- 500VAC for one minute Dielectric strength
Applications
Industrial
Product details
| No. of Circuits | 8Circuits |
| Contact Current DC Max | 25mA |
| Contact Voltage DC Max | 24VDC |
| Switch Type | DIP Sealed |
| Switch Mounting | SMD |
| Contact Configuration | SPST |
| Product Range | DM Series |
| Switch Actuator Style | Slide |
Other details
| Brand | MULTICOMP |
| Part Number | MCDM(R)-08-T |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Drawing EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 152.97 |
| 3-5 | ₹ 151.41 |
| 5-10 | ₹ 148.29 |
| 10+ | ₹ 145.16 |
Bulk discount will be automatically applied during checkout based on quantity.
