Description

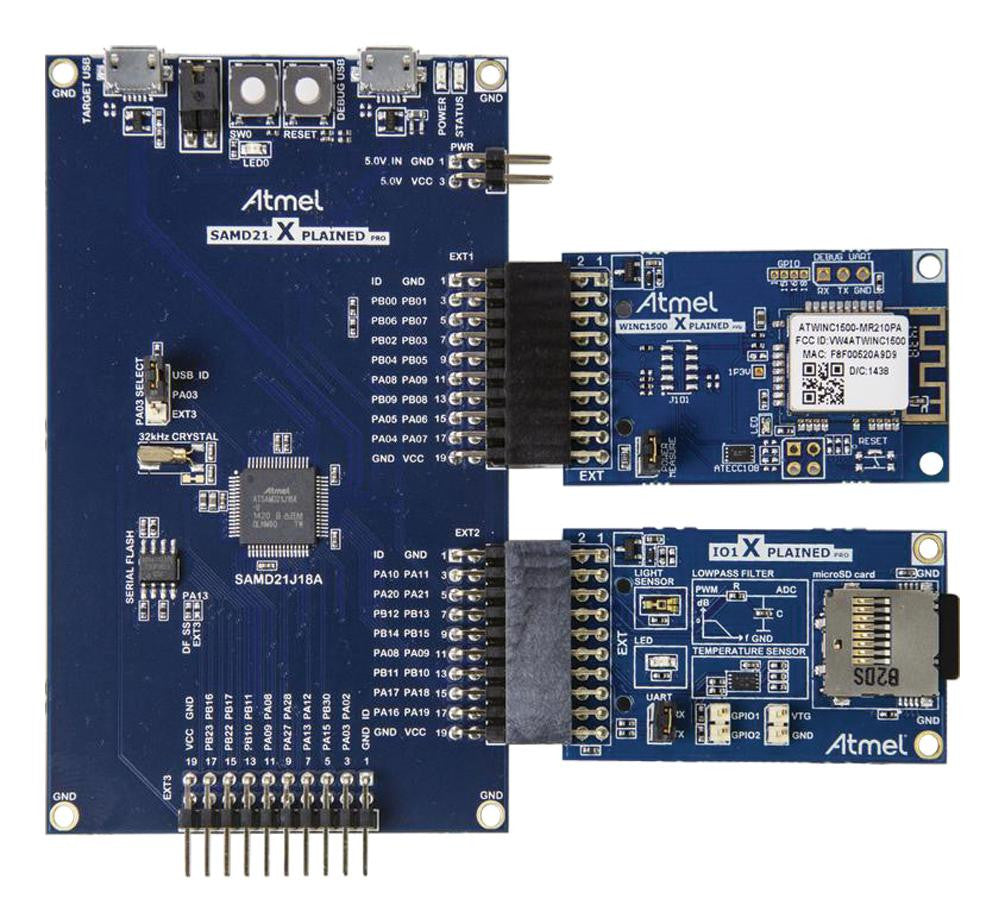

The ATWINC1500-XSTK is a Xplained Pro starter kit. It is a hardware platform for evaluating the Atmel ATWINC1500 low cost, low power 802.11 b/g/n Wi-Fi network controller module. Supported by the Atmel Studio integrated development platform, the kit provides easy access to the features of the ATWINC1500 and explains how to integrate the device in a custom design. The Xplained Pro series of evaluation kits include an onboard embedded debugger and no external tools are necessary to program or debug the SAMD21 host MCU that drives the ATWINC1500. The Xplained Pro extension kits offer additional peripherals to extend the features of the board and ease the development of custom designs.
- Atmel ATWINC1500 module mounted on ATWINC1500 Xplained pro extension
- ATSAMD21-XPRO host MCU board for driving the ATWINC1500 Xplained pro extension
- Digital I/O WING extension board for sensor and SD card input to host MCU
- Embedded debugger (EDBG) for programming SAMD21 host MCU
- Virtual COM port interface to host MCU via UART
- Wired firmware updates for ATWINC1500 module via virtual COM port interface
- Atmel Data Gateway Interface (DGI) to host MCU via SPI and TWI
- ATECC108 CryptoAuthentication device connected to host MCU
- Two extension headers
- Three possible power sources
Applications
Embedded Design & Development, Consumer Electronics, Portable Devices, Industrial, Sensing & Instrumentation, Motor Drive & Control, Imaging, Video & Vision
Contents
SAMD21 Xplained Pro, WINC1500 Xplained Pro extension board, I/O1 Xplained Pro extension board, Two 1.5m USB type A to micro B cables.
Footnotes
90 Day Warranty only. After Expiration of Warranty returns must be processed via Microchip.
Product details
| Kit Application Type | Wireless Connectivity |
| Kit Contents | SAM D21 Xplained Pro Evaluation Board & ATWINC1500-XPRO Extension Card |
| Silicon Core Number | SAMD21J18A, ATWINC1500 |
| Product Range | - |
| Silicon Manufacturer | Atmel |
| Application Sub Type | Wireless Network |
Other details
| Brand | MICROCHIP |
| Part Number | ATWINC1500-XSTK |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Operating Instructions EN | |
