| ₹ 16802.28 includes GST and import duties. | |
| B2B customers can avail ₹ 2562.35 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description

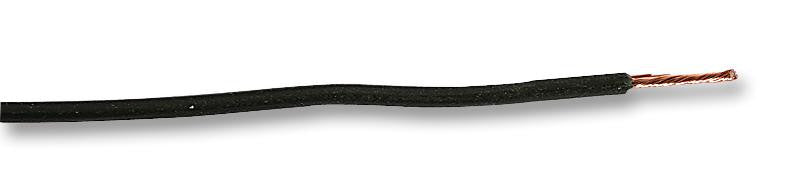

The 4520013 is a 100m 1-conductor Hook-up Wire with fine-wired copper conductor of bare copper strands in line with conductor class 5 according to IEC 60228 standards, black PVC jacket and 12AWG wire. The H07V-K (X07V-K) single-conductor cable with thermoplastic PVC-insulation for installation inside of closed conduits and cable ducting systems and on or under plaster as well as in similar closed systems. For direct laying on racks, troughs and tubes only as potential equalisation conductor. The cable <HAR> marking also stands for the international endorsement of national certification institutes' testing marks and certificates, eg. <VDE><HAR>. The <HAR>marking is of special importance in case of goods traffic between European countries.
- European <HAR> cable type certification
- PVC based core insulation
- Flame-retardant according to IEC 60332-1-2
Applications
Lighting, Automation & Process Control, Industrial
Product details
| Reel Length (Metric) | 100m |
| Conductor Material | Copper |
| Jacket Material | PVC |
| Approval Specification | - |
| External Diameter | 4.8mm |
| Voltage Rating | 750V |
| Reel Length (Imperial) | 328ft |
| Product Range | - |
| Wire Gauge | 12AWG |
| Jacket Colour | Black |
| No. of Max Strands x Strand Size | - |
| Conductor Area CSA | 4mm� |
Other details
| Brand | LAPP KABEL |
| Part Number | 4520013 |
| Quantity | Reel of 1 |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 16466.23 |
| 3-5 | ₹ 16298.21 |
| 5-10 | ₹ 15962.17 |
| 10+ | ₹ 15626.12 |
Bulk discount will be automatically applied during checkout based on quantity.
