Description

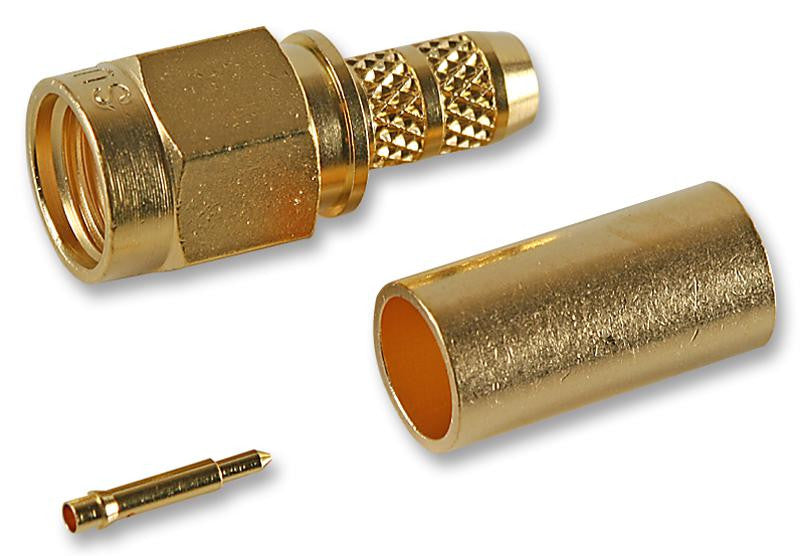

The 11 SMA-50-2-5/111NH is a SMA Male Straight Cable Plug with gold plated beryllium copper contacts. The 22646312 SUHNER SMA connector is precision connectors for microwave applications up to 18/26.5GHz. They distinguish themselves through their high mechanical strength, high durability, high reliability and low VSWR. SMA launchers are the preferred connection element for varied microwave circuits. This cable mount straight plug features solder termination and suitable to use with RG174, RG188A and RG316 cable.
Applications
RF Communications, Avionics, Test & Measurement, Communications & Networking
Product details
| Contact Material | Beryllium Copper |
| Contact Plating | Gold Plated Contacts |
| Connector Type | SMA Coaxial |
| Coaxial Termination | Solder |
| Connector Mounting | Cable Mount |
| Connector Body Style | Straight Plug |
| Coaxial Cable Types | Enviroflex 316, RG174, RG188A, RG316 |
| Impedance | 50ohm |
| Product Range | - |
| Frequency Max | 18GHz |
Other details
| Brand | HUBER & SUHNER |
| Part Number | 11 SMA-50-2-5/111NH |
| Quantity | Each |
| Technical Data Sheet EN |  |
