Description

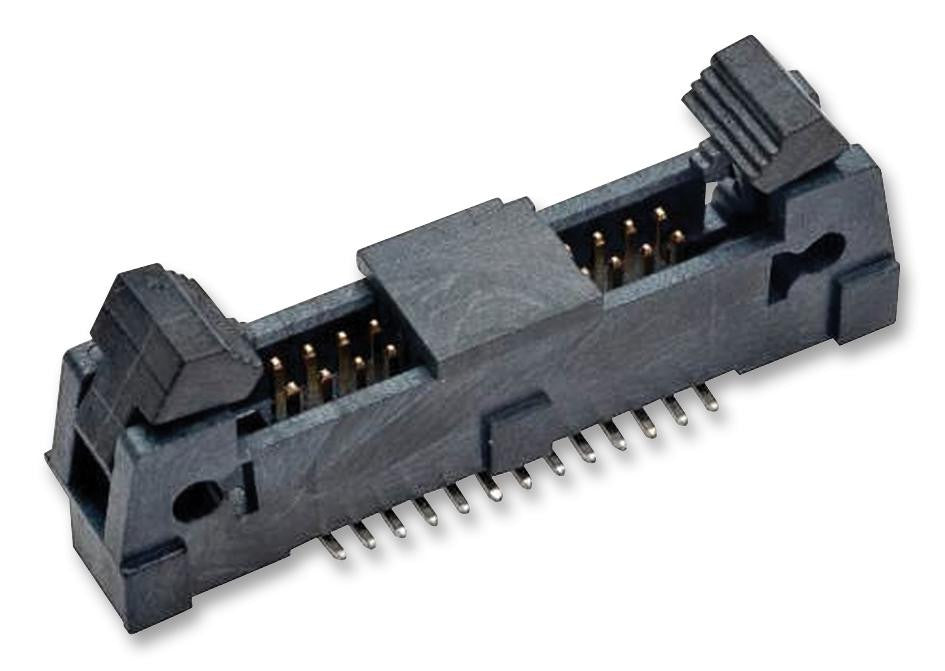

The M50-3650542R is a 10-contact 2-row 1.27mm male Wire-to-board Ejector Pin Header with gold plated brass contacts, 100% tin over nickel plated termination and black UL94V-0 LCP housing. The M50 series plug has vertical connector orientation and surface mount (SMT) connection type. Shrouded for robust pin protection, polarised to prevent mismating. It is suitable for use with 0.4mm square mating pin size.
- 1.75A Current rating
- 20mR Maximum contact resistance
- 5000MR Minimum insulation resistance
- 1000VACrms/DC for one minute Withstanding voltage
Applications
Commercial, Industrial
Product details
| No. of Contacts | 10Contacts |
| Contact Plating | Gold Plated Contacts |
| Gender | Header |
| Product Range | M50 Series |
| Contact Material | Brass |
| Contact Termination Type | Surface Mount |
| Pitch Spacing | 1.27mm |
| No. of Rows | 2Rows |
Other details
| Brand | HARWIN |
| Part Number | M50-3650542R |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
| Drawing EN | |
