Description

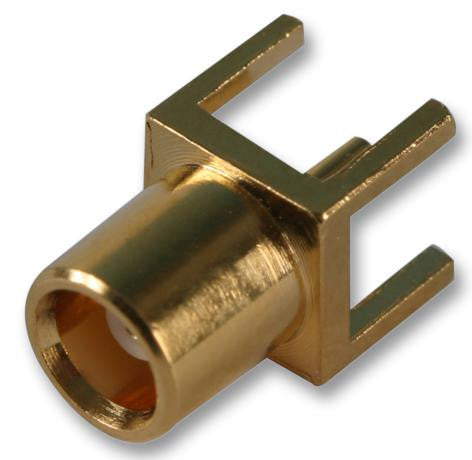

The 1-1337581-0 is a MCX straight PCB-mount Jack with gold-plated beryllium copper contacts, PTFE dielectric and gold-plated brass body.
- 50R Impedance
- 335V Voltage rating
- 1000MR Insulation resistance
- -65 to +165�C Temperature range
Applications
RF Communications, Aerospace, Defence, Military, Industrial
Product details
| Contact Material | Beryllium Copper |
| Contact Plating | Gold Plated Contacts |
| Connector Type | MCX Coaxial |
| Coaxial Termination | Through Hole Vertical |
| Connector Mounting | PCB Mount |
| Connector Body Style | Straight Jack |
| Coaxial Cable Types | - |
| Impedance | 50ohm |
| Product Range | - |
| Frequency Max | 6GHz |
Other details
| Brand | GREENPAR - TE CONNECTIVITY |
| Part Number | 1-1337581-0 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Drawing EN | |
