Description

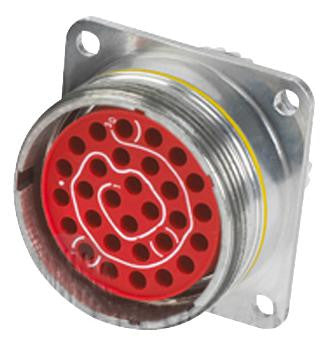

The BACC63BV24H43PNH from Cinch is BACC63 series, MIL-DTL-26500 series equivalent wall mount receptacle with 43 contacts. These BACC63 series cylindrical connectors are qualified to Boeing specifications to satisfy general purpose requirements and unique product challenges for shielding, environmental sealing, fluid resistance and vibration. These connectors have composite shells which are best for weight sensitive applications. These BACC63 series connectors have well-proven electrical capability to withstand extreme shock, exposure and vibration.
- Advanced fluid resistant elastometers, non rotating accessory teeth conforming to MS3155
- Shielded connectors
- High reliability connectors
- Operating temperature range from -55�C to +200�C
- Glass filled epoxy insulator, silicone based elastomer grommet & seals
- Insulation resistance is 5000Mohm
- Salt spray exposure of 96hour
- Threaded coupling with 200 mating cycles
- Aluminium alloy body material with non-conductive black anodized finish
- Copper alloy crimp pin contacts with gold plating
Applications
Industrial, Commercial
Product details
| Contact Material | Copper Alloy |
| Circular Connector Shell Style | Wall Mount Receptacle |
| Contact Plating | Gold |
| Insert Arrangement | 24-43 |
| Connector Body Material | Aluminium Alloy Body |
| Service Class | Environmentally Sealed, Vibration Resistant |
| Coupling Style | Threaded |
| No. of Contacts | 43Contacts |
| Product Range | BACC63 Series |
| Equivalent Military Specification | MIL-DTL-26500 Series |
| Connector Body Plating | Non-conductive Black Anodise |
| Insert Rotation | N |
| Circular Contact Type | Crimp Pin - Contacts Not Supplied |
Other details
| Brand | CINCH CONNECTIVITY SOLUTIONS |
| Part Number | BACC63BV24H43PNH |
| Quantity | Each |
| Technical Data Sheet EN |  |
