Description

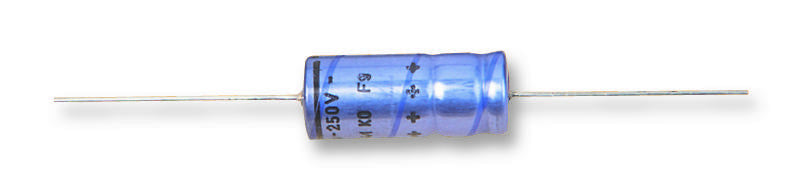

The Vishay 042 ASH series are axial leaded, high voltage, standard aluminium electrolytic capacitors. The capacitance value ranges from 1�F to 220�F. These capacitors are used in smoothing, filtering, buffering at high voltages, power supply and audio-video applications.
- Case size varies from 6.5mm x 18mm to 21mm x 38mm
- -10 to +50% tolerance
- Working voltage ranges from 160V to 450V
- Operating temperature range -40�C to +85�C
- Endurance is 2500hours to 8000hours at 85�C based on case size
- Miniaturized, high CV product per unit volume
- Charge and discharge proof
- Cylindrical aluminium case, insulated with a blue sleeve
- Low mounting height boards, vibration and shock resistant
Applications
Industrial, Consumer Electronics, Portable Devices, Power Management
Product details
| Operating Temperature Min | -40�C |
| Capacitor Terminals | Axial Leaded |
| Operating Temperature Max | 85�C |
| Lifetime @ Temperature | 8000 hours @ 85�C |
| Voltage Rating | 400V |
| Product Range | 042 ASH Series |
| Diameter | 12.5mm |
| Automotive Qualification Standard | - |
| ESR | 7.5ohm |
| Capacitance | 10�F |
| Lead Spacing | - |
| Capacitance Tolerance | +50%, -10% |
| Packaging | Each |
| Height | 30mm |
Other details
| Brand | VISHAY |
| Part Number | MAL204226109E3 |
| Quantity | Each |
| Technical Data Sheet EN |  |
