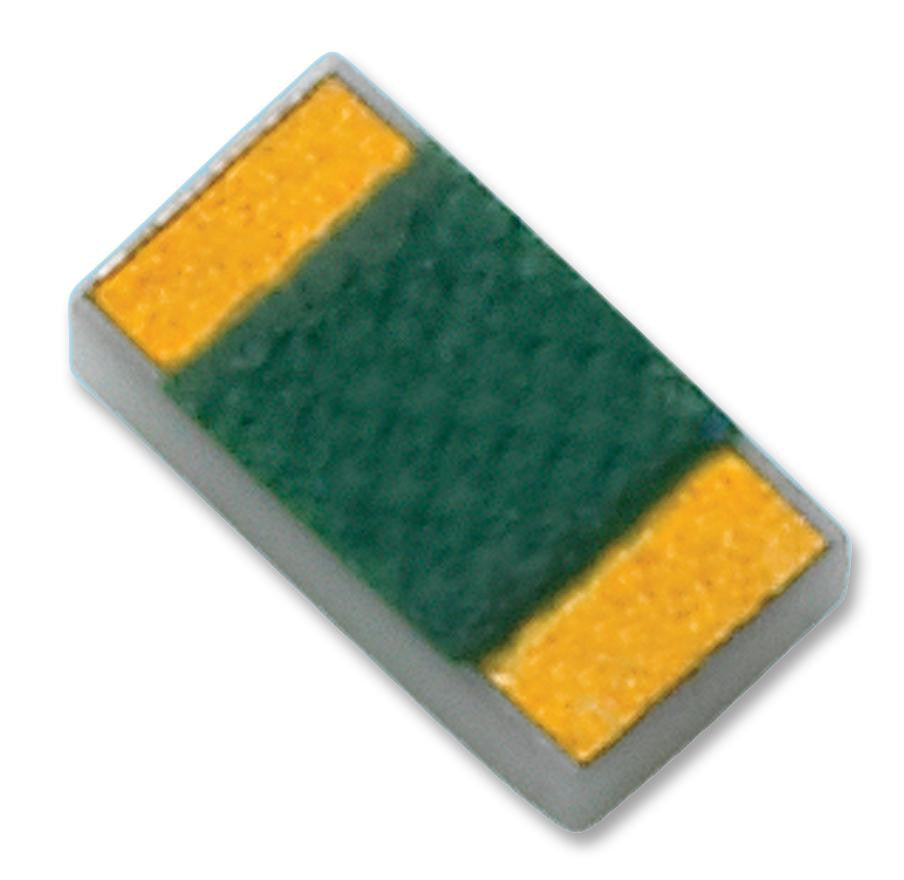

![VISHAY FC0402E50R0BST1 SMD Chip Resistor, Thin Film, 50 ohm, 30 V, 0402 [1005 Metric], 50 mW, ± 0.1%, FC Series](http://www.tanotis.com/cdn/shop/products/2309101-40_{width}x.jpg?v=1575996757)
![VISHAY FC0402E50R0BST1 SMD Chip Resistor, Thin Film, 50 ohm, 30 V, 0402 [1005 Metric], 50 mW, ± 0.1%, FC Series](http://www.tanotis.com/cdn/shop/products/2309101-40_1024x.jpg?v=1575996757)
| ₹ 174.58 includes GST and import duties. | |
| B2B customers can avail ₹ 26.62 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description
The FC0402E50R0BST1 is a high frequency thin film SMD Chip Resistor with 0402 chip format. Power rating of 50mW and temperature coefficient at ±25ppm/°C. It is designed with low internal reactance. They function as almost pure resistors on a very high range of frequencies. The specialized laser edge trimming allows for precision tolerances to 0.1%.
- Edge trimmed block resistors
- Alumina substrate high purity (99.6%)
- Ohmic range (10 to 1000R)
- Small internal reactance (<10mR)
- Low TCR (down to ±25ppm/°C)
- Epoxy bondable termination available
Applications
Signal Processing
Product details
| Resistance | 50ohm |
| Resistor Case Style | 0402 [1005 Metric] |
| Resistor Element Type | Thin Film |
| Voltage Rating | 30V |
| Resistance Tolerance | ± 0.1% |
| Product Range | FC Series |
| Automotive Qualification Standard | - |
| Temperature Coefficient | ± 25ppm/°C |
| Power Rating | 50mW |
| Packaging | Cut Tape |
Other details
| Brand | VISHAY |
| Part Number | FC0402E50R0BST1 |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 171.09 |
| 3-5 | ₹ 169.34 |
| 5-10 | ₹ 165.85 |
| 10+ | ₹ 162.36 |
Bulk discount will be automatically applied during checkout based on quantity.
