| ₹ 168.89 includes GST and import duties. | |
| B2B customers can avail ₹ 25.76 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

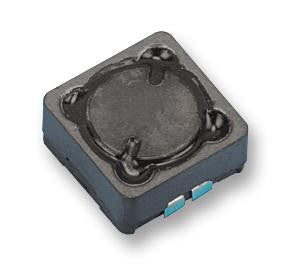

The 3631B101LL is a surface mount shielded Power Inductor with ferrite core, designed to handle high current and have been designed for use in SMD power circuits. With the superior ferrite core material and its low profile construction ensures excellent inductance characteristics coupled with proven Tyco Sigma quality. This inductor supports 1kHz test frequency and ±15% inductance tolerance.
- Very high current capability
- High reliability
Applications
Power Management
Product details
| Inductance Tolerance | ± 15% |
| RMS Current (Irms) | 1.1A |
| Saturation Current (Isat) | - |
| Power Inductor Case | 12.7mm x 12.7mm x 6mm |
| Inductance | 100µH |
| Inductor Construction | Shielded |
| Product Range | 3631 Series |
| DC Resistance Max | 0.22ohm |
| Packaging | Cut Tape |
Other details
| Brand | SIGMAINDUCTORS - TE CONNECTIVITY |
| Part Number | 3631B101LL |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
| Drawing EN | |
| 3D Product Image EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 165.51 |
| 3-5 | ₹ 163.82 |
| 5-10 | ₹ 160.45 |
| 10+ | ₹ 157.07 |
Bulk discount will be automatically applied during checkout based on quantity.
