Description

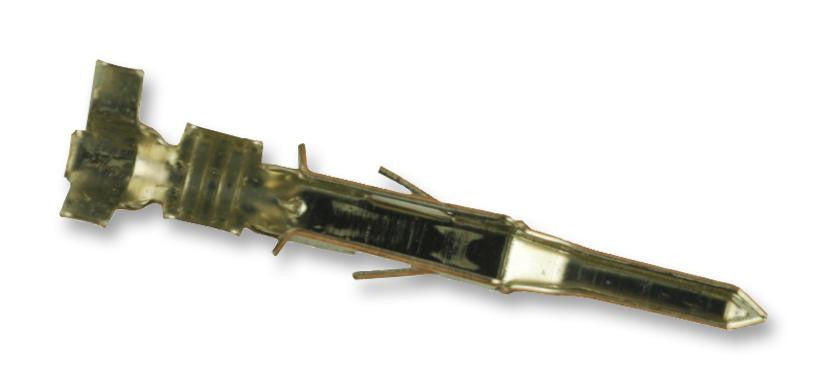

The 39-00-0083 is a Mini-Fit� male pin Crimp Terminal made of phosphor bronze with tin plated finish. This 5558 series male crimp terminal accepts 16AWG wire. The pin terminal mates with 5556 Mini-Fit� crimp terminal. It can be used with 5559 Mini-Fit Jr.� plug housing. The terminal is suitable for power applications.
- 9A Maximum current per contact
- 600V Maximum voltage
- 30 Maximum mating cycles durability
Applications
Power Management, Consumer Electronics, Communications & Networking, Industrial, Automation & Process Control
Product details
| Wire Size AWG Max | 16AWG |
| Contact Plating | Tin Plated Contacts |
| Product Range | 5558 Series |
| Contact Material | Phosphor Bronze |
| Contact Termination Type | Crimp |
| For Use With | Mini-Fit Jr. 5559 Plug Housings |
| Wire Size AWG Min | 16AWG |
| Contact Gender | Pin |
Other details
| Brand | MOLEX |
| Part Number | 39-00-0083 |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
| Drawing EN | |
| Product Change Notice EN | |
