Description
The CSN series closed loop Current Sensor that is based on the principles of the magneto-resistive or hall effects and the null balance or zero magnetic flux method (feedback system). The magnetic flux in the sensor core is constantly controlled at zero. The amount of current required to balance zero flux is the measure of the primary current flowing through the conductor, multiplied by the ratio of the primary to secondary windings. This closed loop current is the output from the device and presents an image of the primary current reduced by the number of secondary turns at any time. This current can be expressed as a voltage by passing it through a resistor.
- Up to 1275A current sensing
- Measures AC, DC and impulse currents
- Rapid response
- High overload capability
- High level of electrical isolation between primary and secondary circuits
- Industrial operating temperature range
Applications
Robotics, Communications & Networking, Power Management, Automotive
Product details
| Sensor Output | Closed Loop |
| Response Time | 0.5�s |
| Current Measuring Range AC | -90A to 90A |
| Supply Voltage DC Max | 15V |
| Product Range | CSN Series |
| Supply Voltage DC Min | 12V |
| Accuracy % | 0.5% |
| Current Measuring Range DC | -90A to 90A |
Other details
| Brand | HONEYWELL |

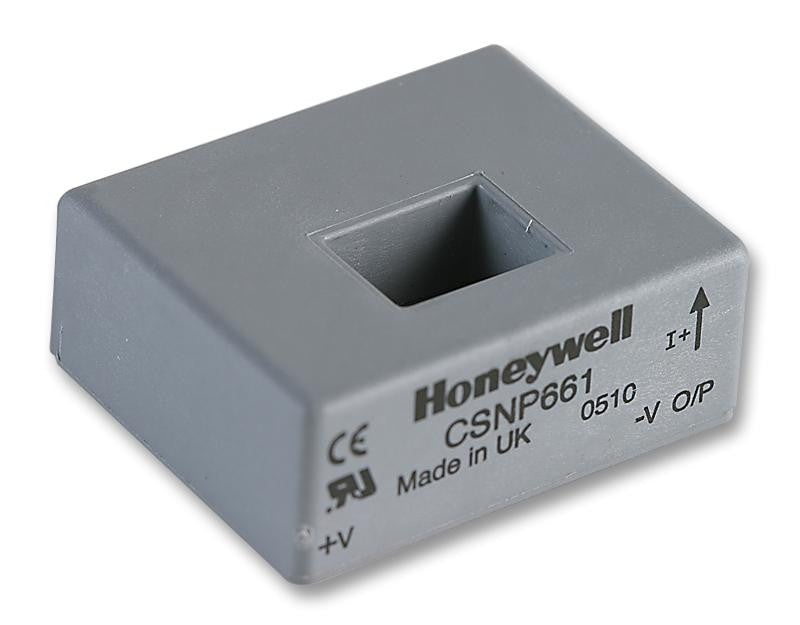

| Part Number | CSNP661 |
| Quantity | Each |
| Technical Data Sheet EN |  |
