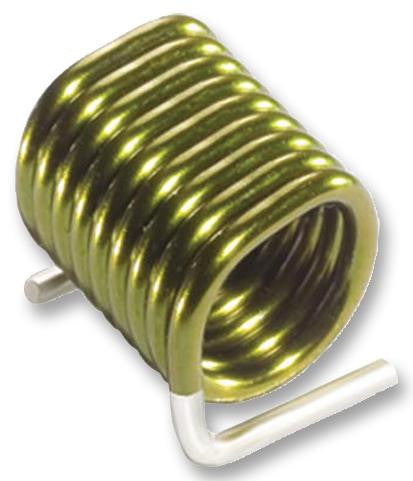

This is a Air Core Inductor, Square, 90 nH, 5 A, 2222SQ Series, � 2%, 5.21mm x 5.46mm x 5.69mm, 5500 �ohm product from COILCRAFT with the model number 2222SQ-90NGEB
Product details
| Inductance Tolerance |
� 2% |
| RMS Current (Irms) |
5A |
| Air Core Inductor Case |
5.21mm x 5.46mm x 5.69mm |
| Inductance |
90nH |
| Self Resonant Frequency Min |
1.15GHz |
| Product Range |
2222SQ Series |
| DC Resistance Max |
0.0055ohm |
| Packaging |
Cut Tape |
Other details
| Brand |
COILCRAFT |
| Part Number |
2222SQ-90NGEB |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
