Description

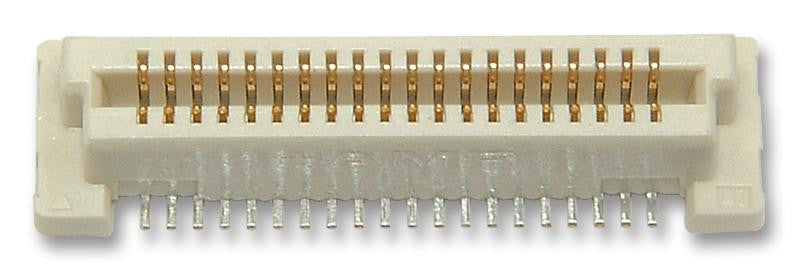

The 5-5179009-3 is a 80-way 2-row 0.8mm Free Height Vertical Receptacle with gold-plated beryllium copper contacts and surface mount termination. This FH series connector comes with natural LCP housing and tin over nickel plated solder tail, designed for parallel board stacking applications using sub miniature connectors to meet today's electronic industry requirements for high density packaging. The receptacles are preloaded with the unique bellows-type spring contacts for reliable electrical connection with the plugs.
- Positioning bosses for proper on-board orientation
- Bellows type spring contacts are resistant to scooping and stubbing during mating and unmating
- UL94V-0 Flammability rating
- 0.5A Contact current rating
- 30mR Contact resistance
- 100VAC Voltage rating
- -40 to 85�C Operating temperature range
Applications
Industrial
Product details
| No. of Contacts | 80Contacts |
| Contact Plating | Gold Plated Contacts |
| Gender | Receptacle |
| Product Range | FH Series |
| Contact Material | Beryllium Copper |
| Contact Termination Type | Solder |
| Pitch Spacing | 0.8mm |
| No. of Rows | 2Rows |
Other details
| Brand | AMP - TE CONNECTIVITY |
| Part Number | 5-5179009-3 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Drawing EN | |
| 3D Product Image EN | |
