Tilta Arm, Head & Speed Rail Mounting Kit for Hydra Alien Pro (V-Mount)

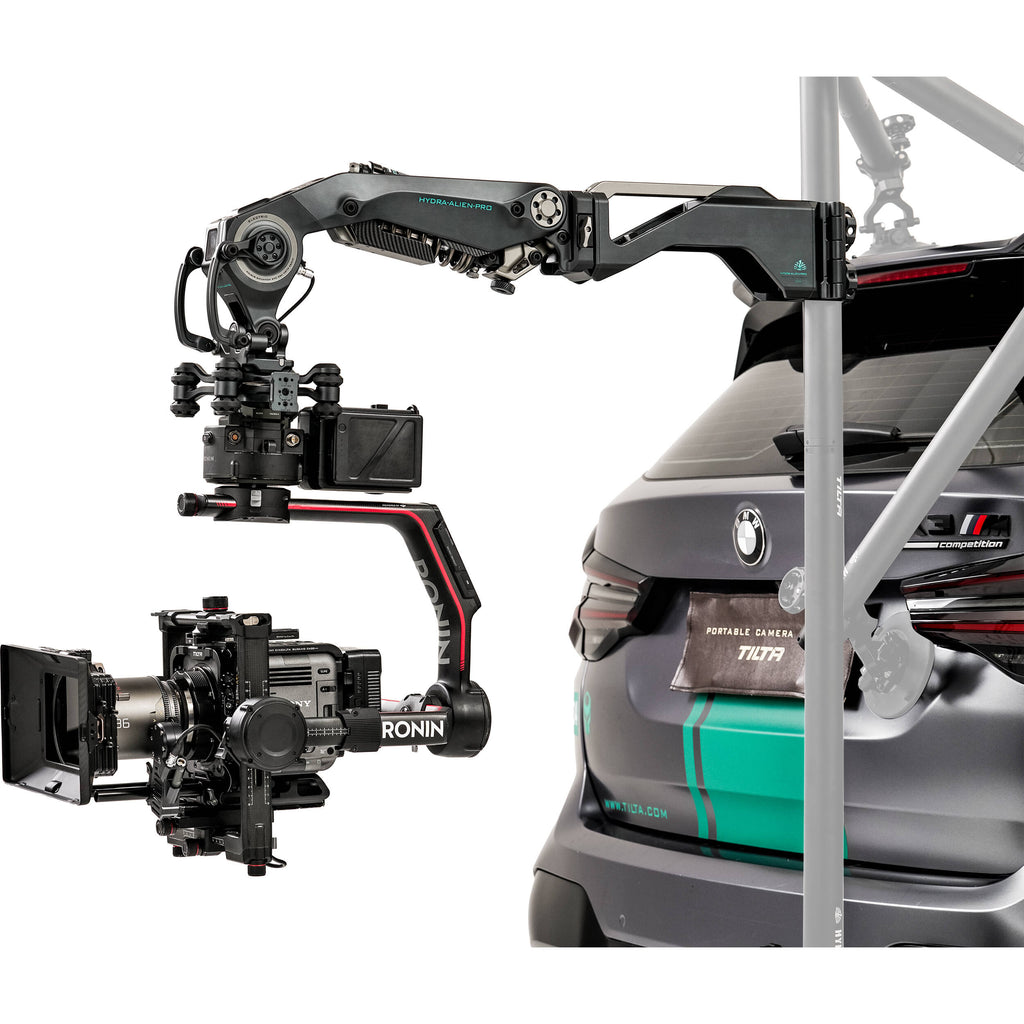

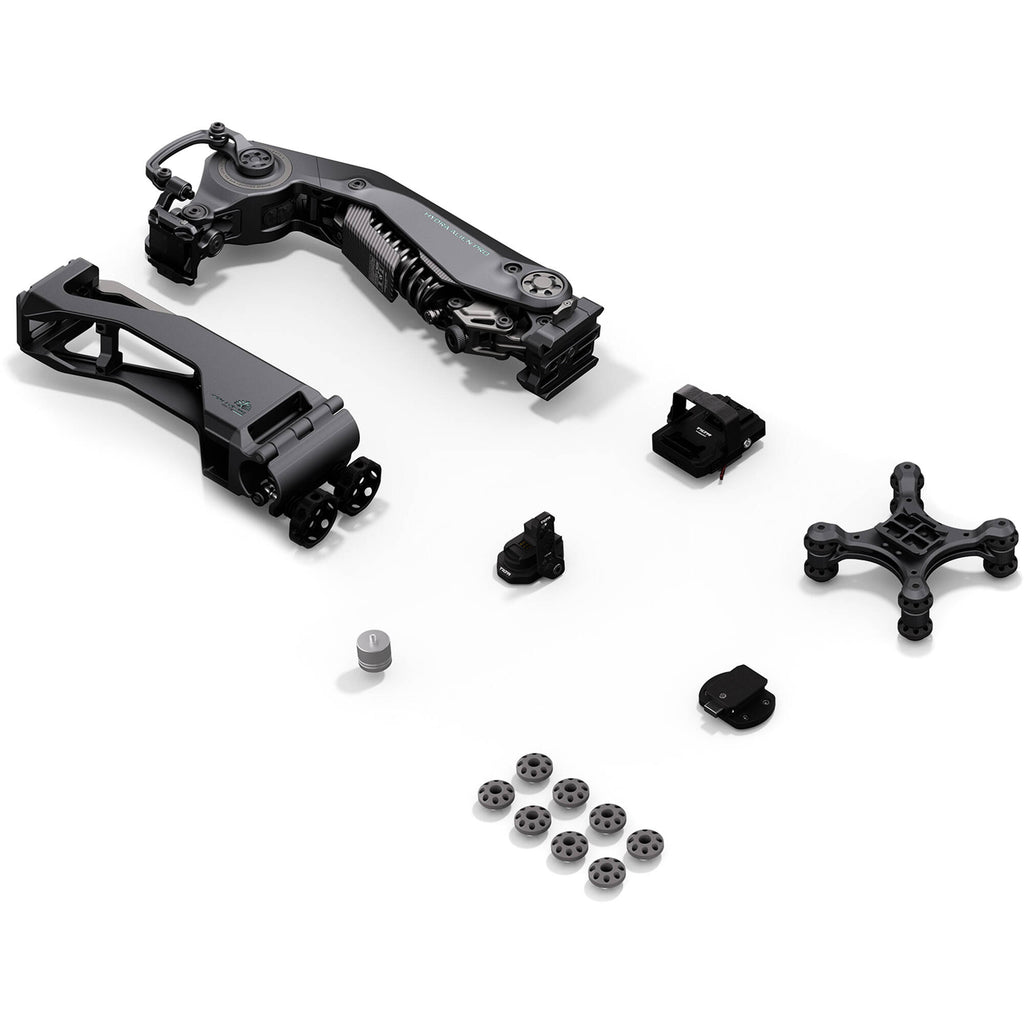

Add a shock-absorbing arm to your Hydra Alien Pro car mount for smooth motion shots with this Arm, Head & Speed Rail Mounting Kit from Tilta. The kit includes a shock-absorbing arm, shock-absorbing head, power supply baseplate, dual V-mount plate, counterweights, 50mm standard speed rail mounting clamp, swappable shock absorber kit, safety tether, a mount adapter for a DJI Ronin series gimbals, and power cables.

NOTE: Speed rails are not included in this kit.

The arm is designed to mount and unmount a larger gimbal, such as a DJI Ronin 2, using Manfrotto dovetail plates, and there are multiple safety pins and knobs to keep your gear secure onto the 50mm speed rail. Multiple 1/4"-20 and 3/8"-16 threads provide additional mounting points.

The arm supports loads using different tension settings and a number of counterweights:

• Up to 28.7 lb with the heavy setting, with rigs such as DJI Ronin 2 with a cinema camera
• Up to 22 lb with medium setting, with rigs such as midsize gimbals like the M?VI Pro or DJI Ronin M with a compact cine camera
• Up to 15.4 lb with the light setting, with rigs such as the DJI RS series gimbals with a mirrorless camera or the Ronin 4D

The dual V-mount provides power to the arm via the 12-17V power input. There is also a power output to keep your gimbal powered. You can remotely control the shock-absorbing head's payload mode and damping from 0 to 100 with the separately available Nucleus Nano 2 from up to 328' away. Damping tension can be adjusted, and the USB-C port on the arm allows you to upgrade the firmware with future releases.

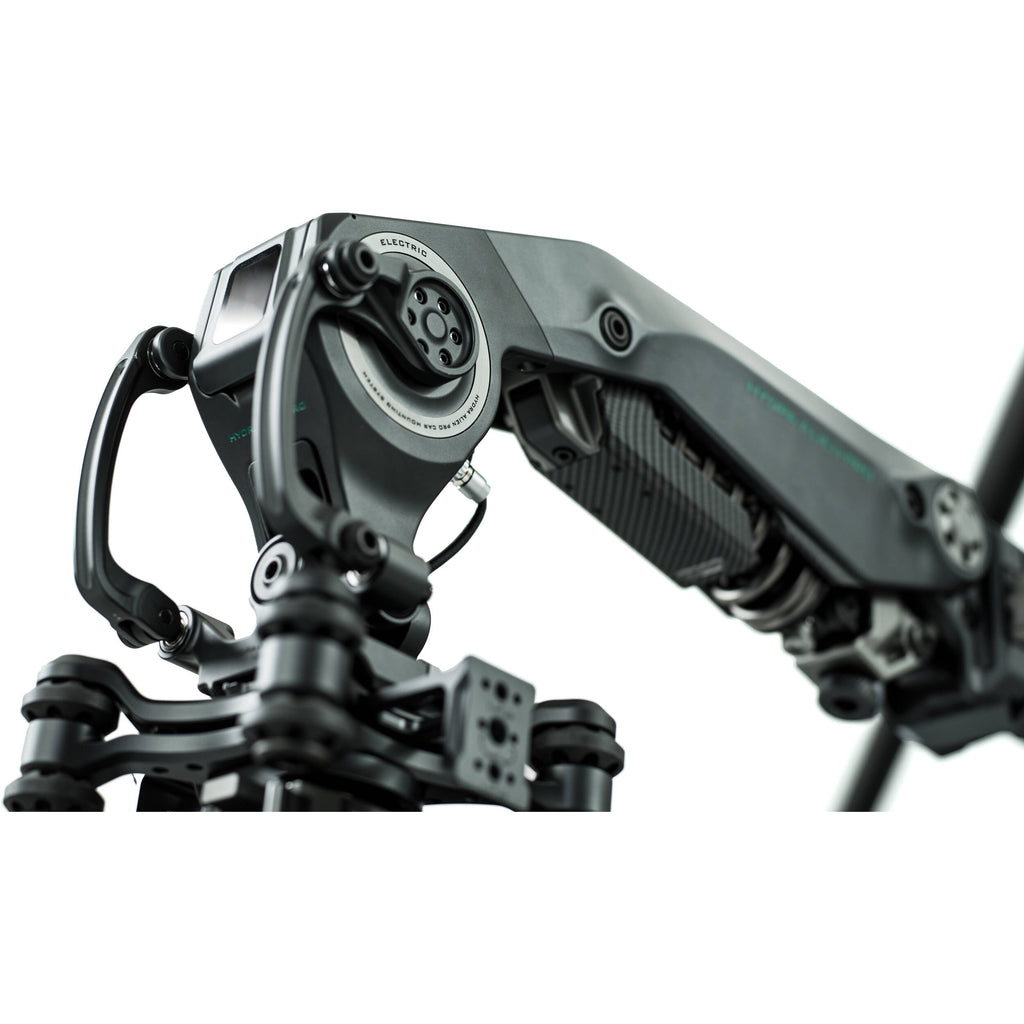

The shock-absorbing head features two types of shock absorbers that can be swapped out in sets of four on the individual posts of the head for heavier or lighter loads. It prevents shake and reduces high-frequency vibration. A Manfrotto-style quick release plate allows you to mount your camera rig or gimbal.

The built-in touchscreen status display provides onboard control of damping tension, battery level, payload level, and wireless signal status.

The shock-absorbing head can pair with the following gimbals:

• DJI RS 4 Pro
• DJI Ronin 4D
• DJI Ronin-M
• DJI Ronin 2 (only with speed rail mounting, not for suction cups)
• M?VI Pro

Tilta HDA-T18-B-V Specs

Compatibility	Tilta Hydra Alien
Load Capacity	8.82 to 28.66 lb / 4 to 13 kg

Wireless

Yes

Power Source	Battery (Not Included)
Battery Type	1x V-Mount Lithium-Ion
DC Input Power	14.8 to 24 VDC
Power Consumption	150 W

Mounting	Multiple Dovetails Multiple Quick Release Mounts 1x 50 mm Speed Rail Clamp Mount
Color	Black
Material of Construction	Aluminum
Operating Conditions	-4 to 176°F / -20 to 80°C
Cable Length	Not Specified by Manufacturer
Dimensions	Not Specified by Manufacturer
Weight	12.1 lb / 5.5 kg (Main Arm)

Package Weight	44.5 lb
Box Dimensions (LxWxH)	26 x 22.5 x 17.5"
