Proaim ST-PHWK-01 Overview

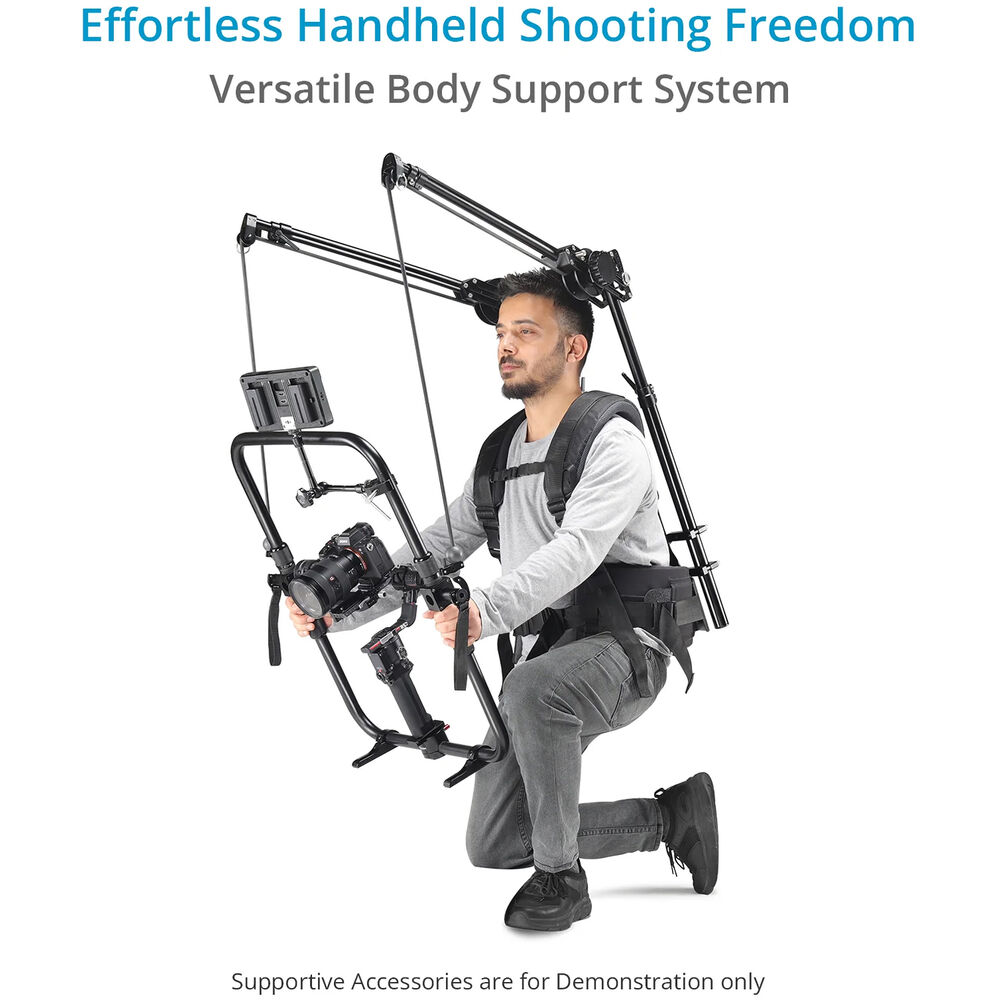

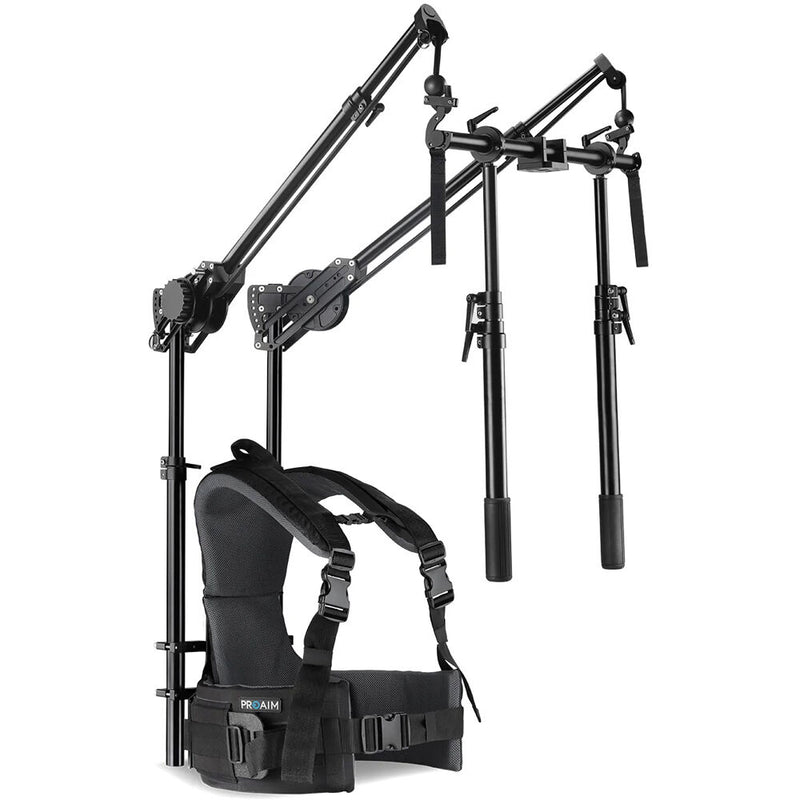

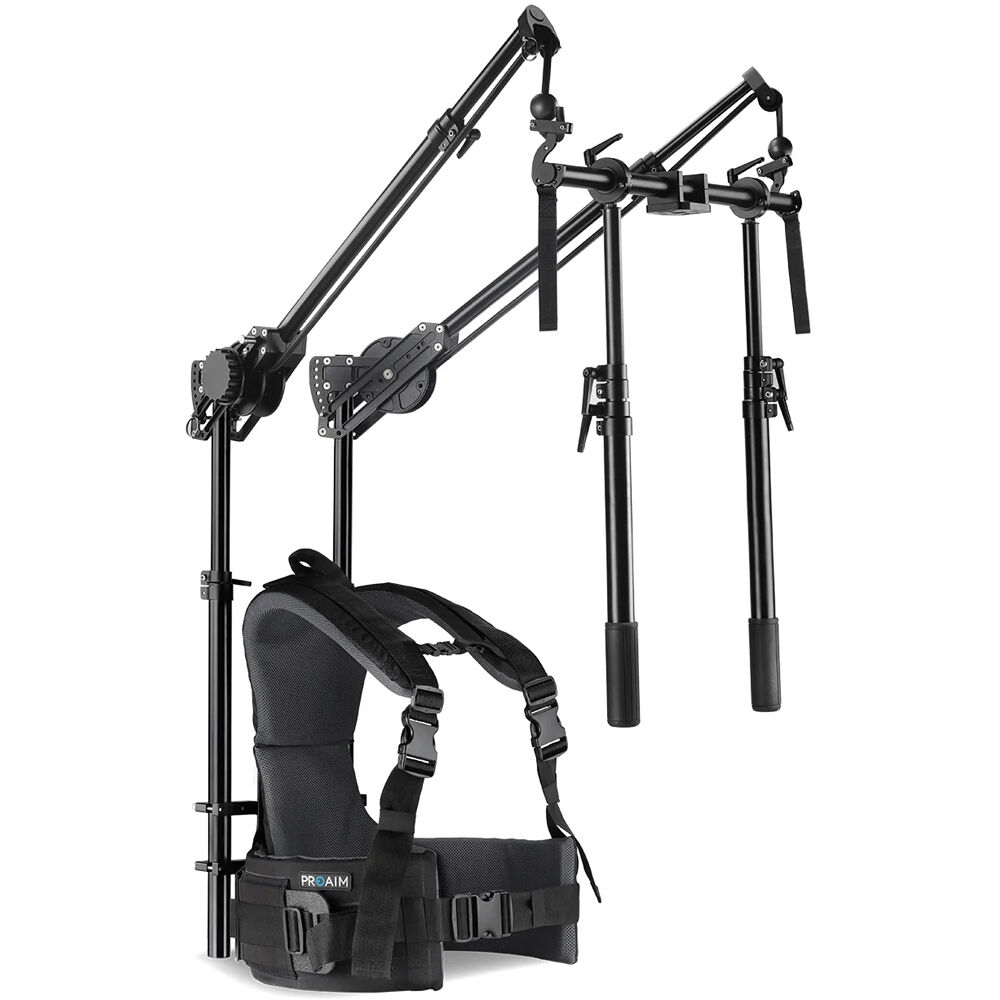

Easily shoot handheld gimbal footage using the
Hawk Pro Body Support System from
Proaim, thanks to its modular construction for a customizable experience. The system includes all of the components to construct a custom-fit body harness that transfers the total weight of your rig onto your hips for longer shoot days. Telescopic arms, rig elastics, and a versatile top bar accommodate payloads from 2.2 to 44 lb.

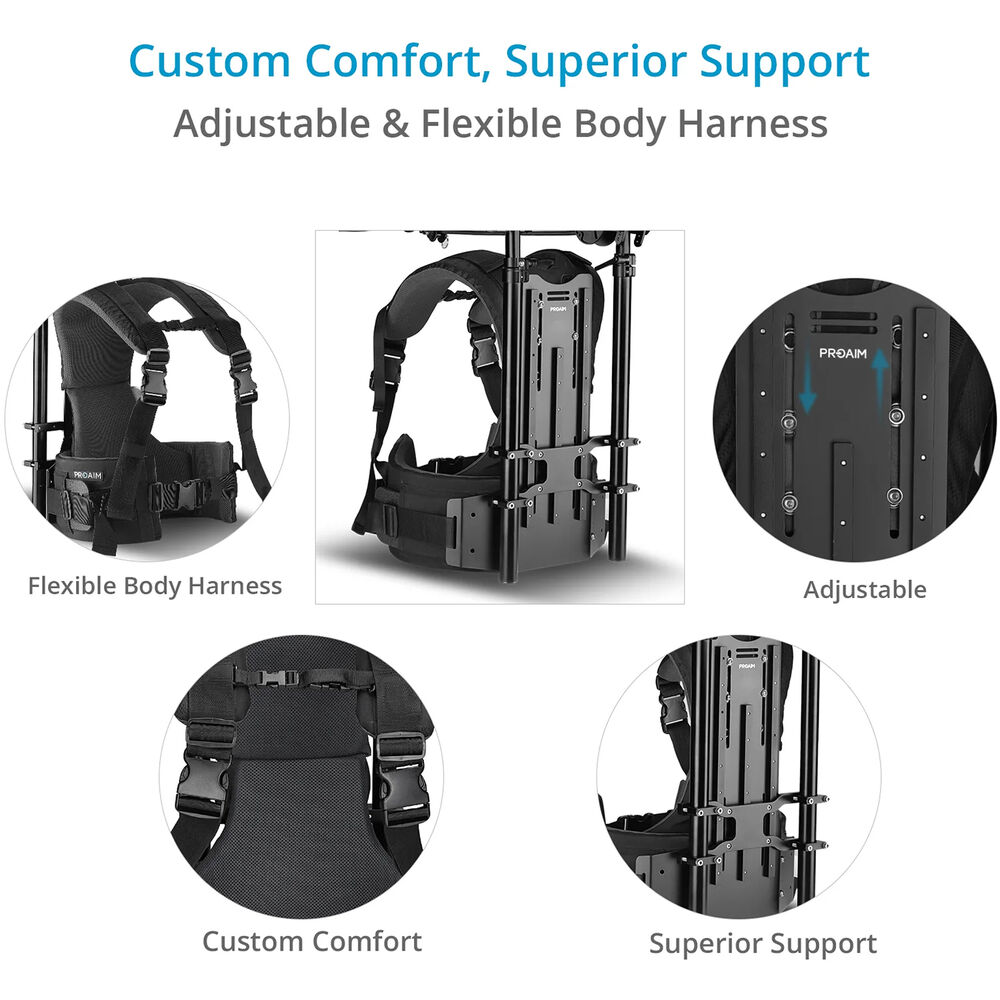

Custom-Fit Harness
A metal base back vest, shoulder support, padded back support, and padded waist belts allow you to create a custom-fit harness that suits your body proportions, effectively redistributing the weight of the rig to your hips. Integrated metal plates and bolts fine-tune the adjustments. Extend or lower the back rig extension depending on the height of your camera operator.

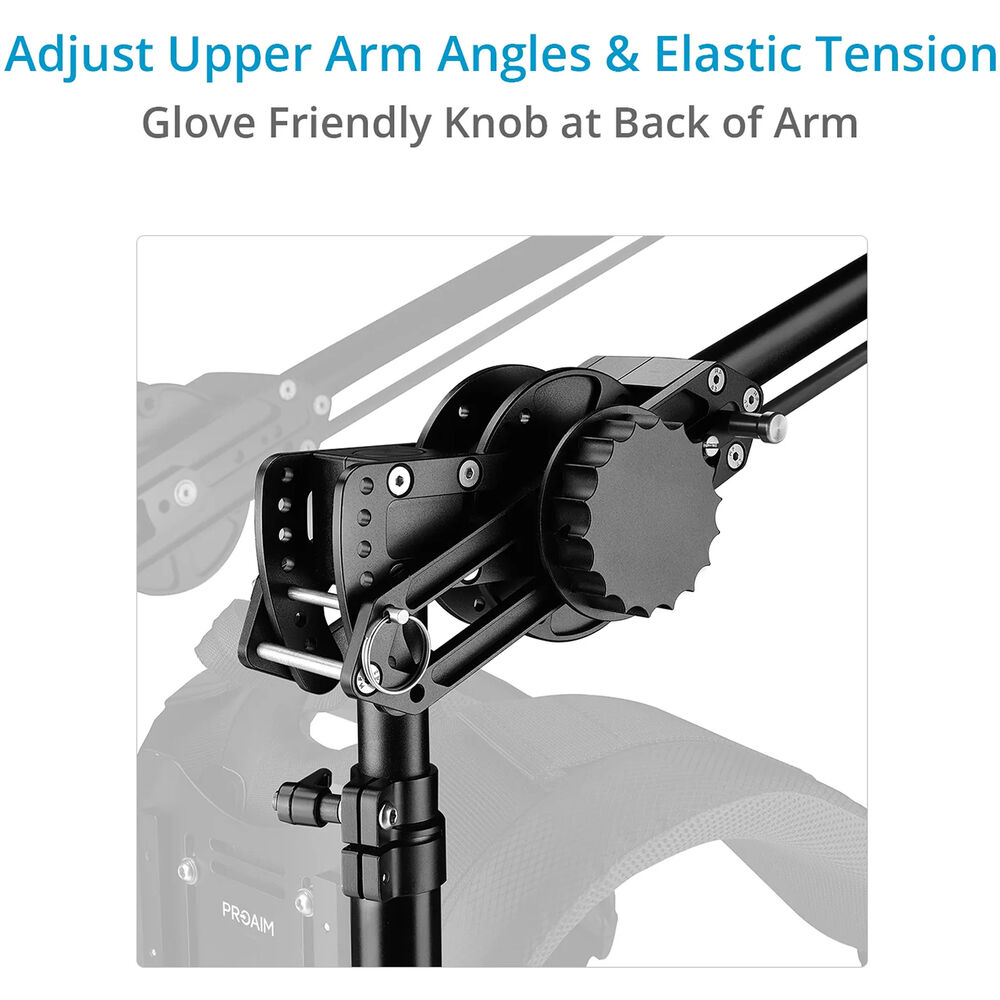

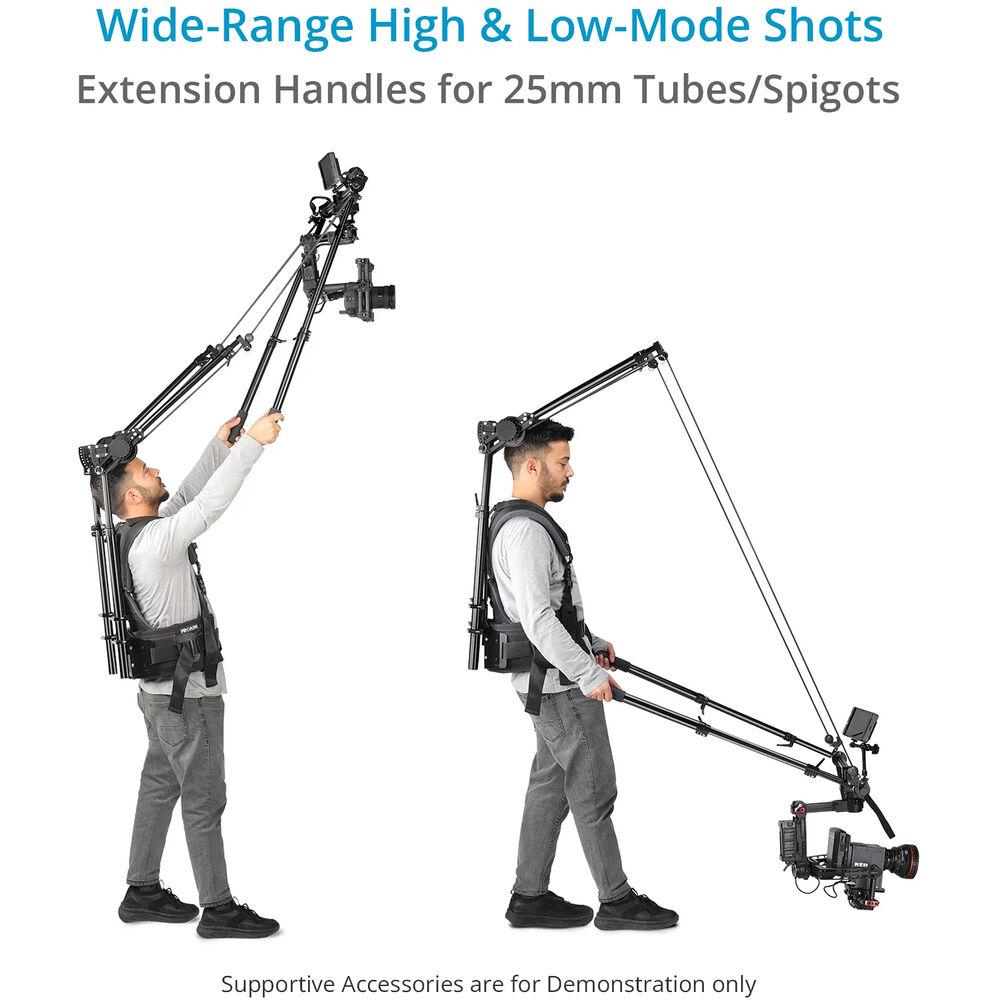

Telescopic Arms, Rig Elastics

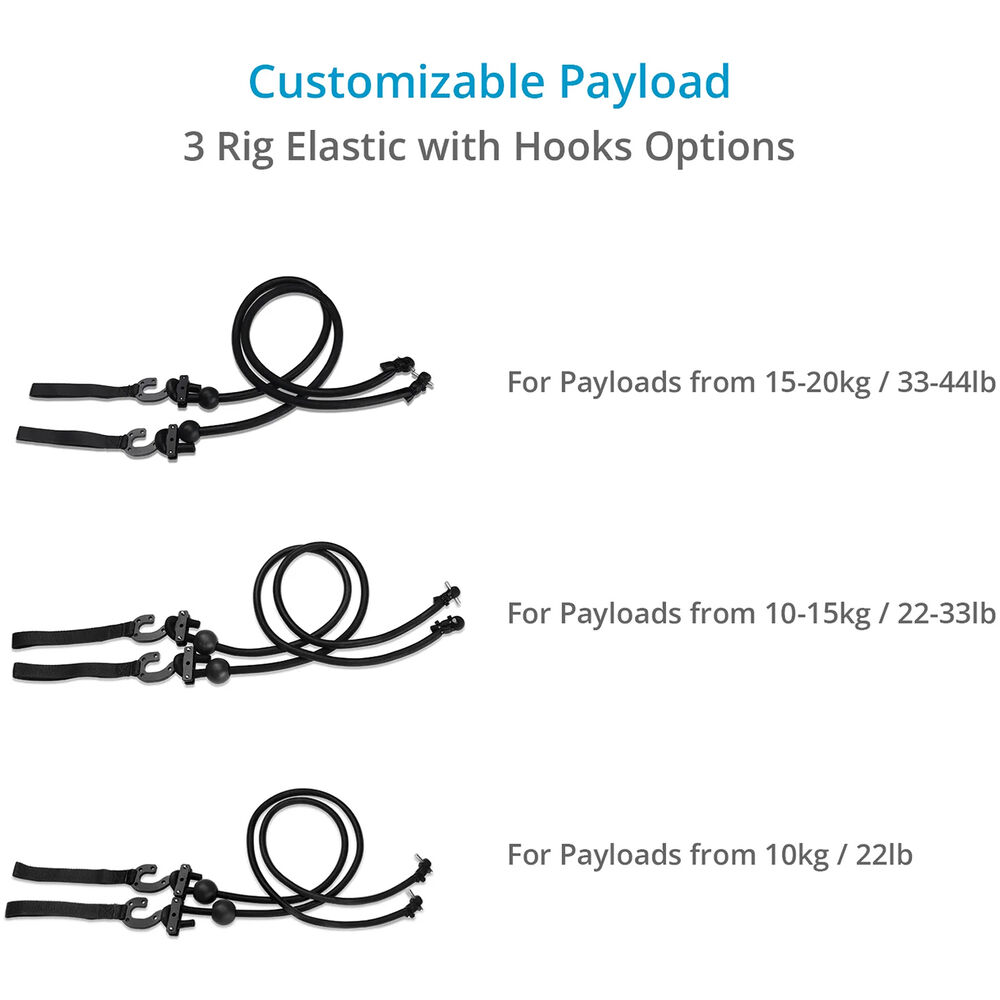

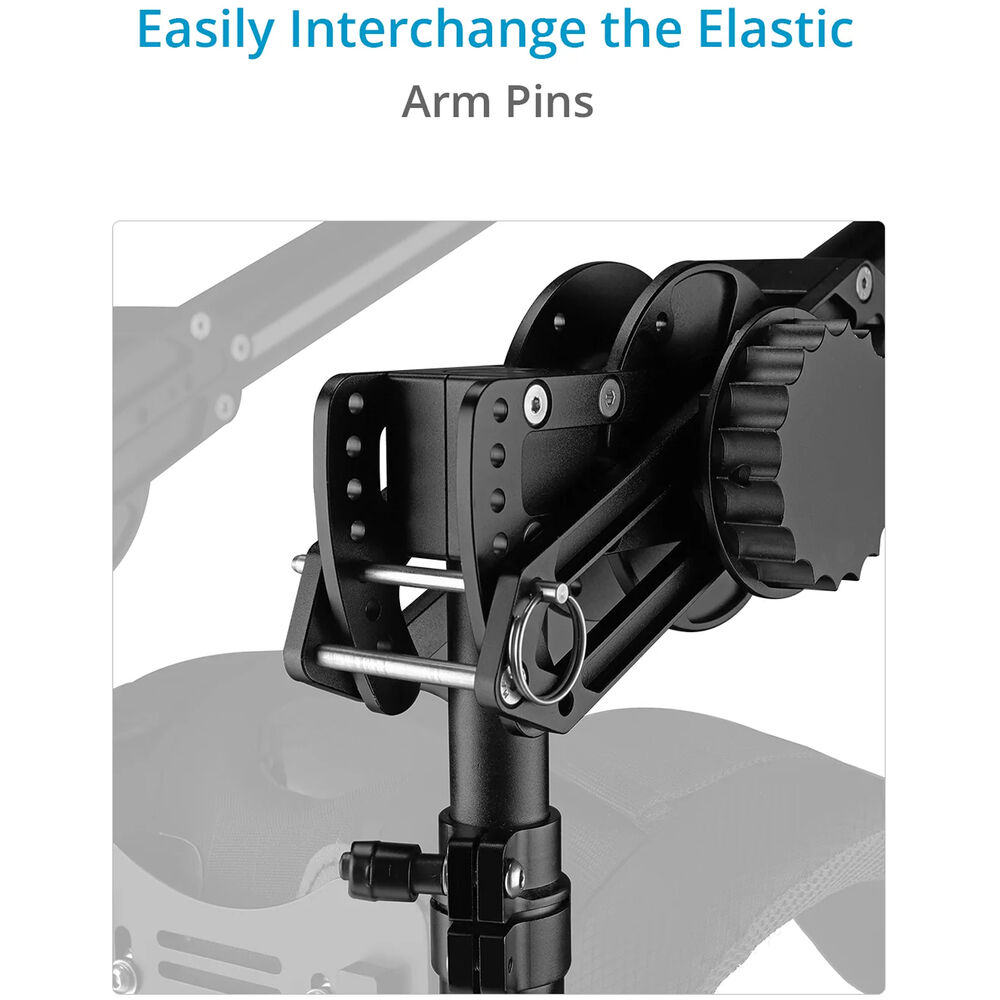

Telescopic arms can extend up to 3.4' to capture high-flying perspectives. The arms adjust without the need for additional tools. Three rig elastics in different diameters give you control over the system's payload. Use the 0.35" thick elastic for loads up to 22 lb, the 0.4" elastic for loads between 22 and 33 lb, or the 0.5" elastic for loads between 33 to 44 lb.
Versatile Top Bar
The included top bar for the Hawk Pro rig is compatible with the FREEFLY M?VI Pro gimbal. Two gimbal adapters with spigot ends secure to the system with the elastic hooks for compatibility with the DJI Ronin 2, FREEFLY M?VI Pro, and the ARRI Maxima M30.
UPC: 734690026926
Items Included
- Proaim Hawk Pro Body Support System for Camera Gimbals
- Metal Base Vest
- Shoulder Support
- Padded Back Support
- Rig Top Bar
- 2 x Padded Waist Belt
- 2 x Rig Extension Handle
- 2 x Back Rig Extension
- 2 x Rig Extension Arm
- 2 x Rig Elastic with Hook (0.35")
- 2 x Rig Elastic with Hook (0.4")
- 2 x Rig Elastic with Hook (0.5")
- 2 x Gimbal Adapter
- 2 x Net Pouch
- 8 x Small Pouch
- L-Type Allen Key
- T-Type Allen Key Set
- Carrying Case
- Limited 1-Year Manufacturer Warranty
Additional Resources
Proaim ST-PHWK-01 Specs
General
| Compatibility |
DJI Ronin 2
FREEFLY M?VI Pro ARRI Maxima M30 |
Physical
| Mounting |
2x 1" Spigot End
|
| Load Capacity |
2.2 to 44.1 lb / 1 to 20 kg
|
| Color |
Black
|
| Material of Construction |
CNC Aluminum, Cordura Fabric, Foam, Plastic
|
| Dimensions |
43.3" / 110 cm (Extended Height)
40.9" / 104 cm (Extended Arm Length) |
| Weight |
29.1 lb / 13.2 kg
|
Packaging Info
| Package Weight |
37 lb
|
| Box Dimensions (LxWxH) |
34.25 x 19.25 x 11.5"
|
