Description

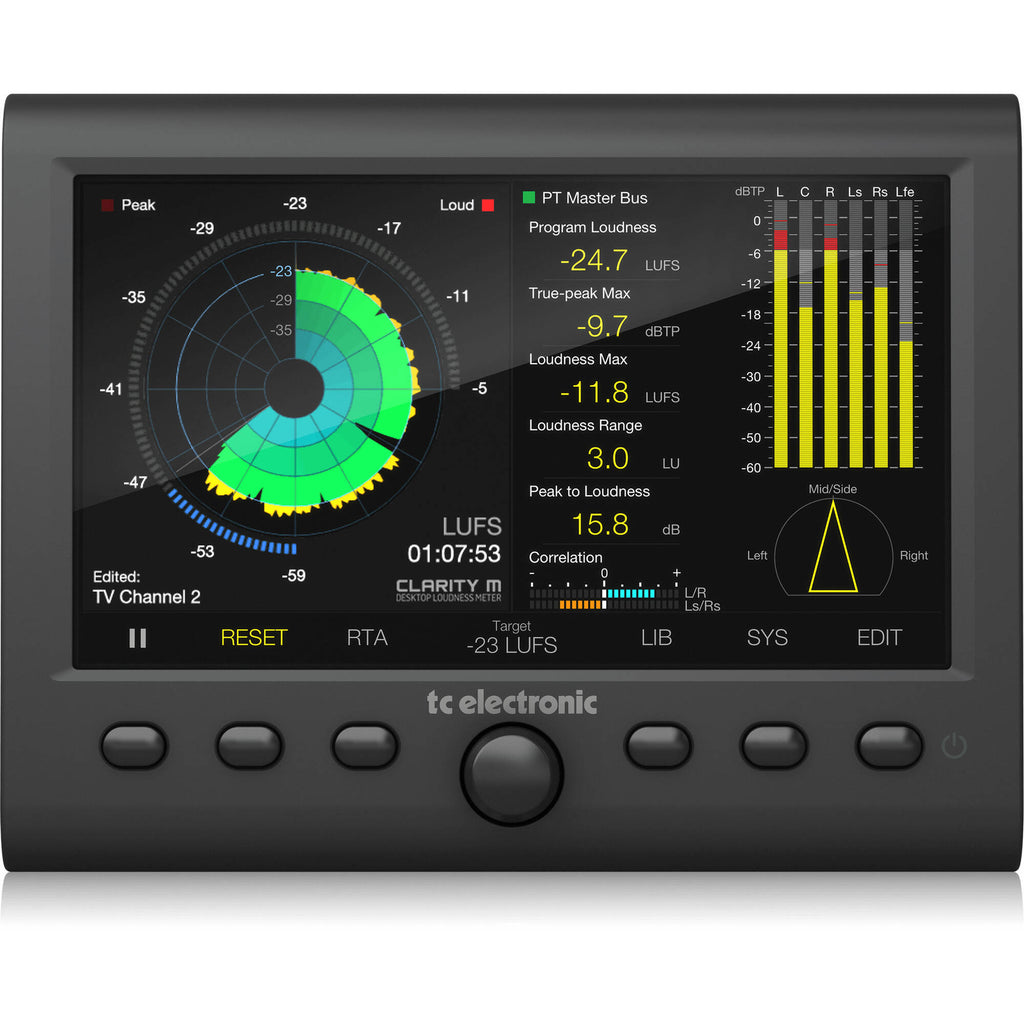

TC Electronic CLARITY M Overview
Ideal for studios engaged in postproduction efforts such as mixing, mastering, and sound design, Clarity M from TC Electronic contains a comprehensive set of precision loudness monitoring tools for full compliance with all major broadcast loudness standards. Supporting stereo and 5.1 configurations, Clarity M is an essential studio tool.
Clarity M sports a plethora of metering technologies, including the LM6 Loudness Radar Meter (a true-peak meter), a correlation meter, a downmix compliance meter, an RTA (real-time analyzer), and much more. The large, bright 7" LCD screen offers a wealth of easy-to-read information at a glance, greatly improving your workflow. Connectivity is simple with a DB-15 connector for six channels of AES3 digital audio and GPIO, a USB port for direct plug-in monitoring on most major DAWs, and an optical TOSLINK connector for stereo input. Clarity M includes 2.5mm hex key, an AC adapter, a DB-15 to multi BNC breakout cable, a BNC to RCA adapter, and a USB cable.
- RTA: the high-accuracy RTA with 1/3 octave resolution and individual band zoom provides a great overview of the spectral distribution of your mix
- True-Peak: based on TC Electronic's highly acclaimed True-Peak Technology, the Clarity M is your guard against otherwise unpredictable clipping
- Loudness Radar: the Loudness Radar presents the loudness history of your audio to help you get the levels just right, while momentary loudness in the outer ring keeps an eye on your instant loudness level
- Loudness Measures: loudness statistics not only keep you compliant with loudness standards, they also provide crucial information on other important aspects of your mix, such as micro dynamics and macro dynamics
- Downmix Deviation: the Deviation meter is a fundamental tool to ensure your mix sounds great where it's played back in 5.1, stereo, or mono, thanks to TC Electronic's Loudness Technology, providing the best means for determining the status of your mix
- Correlation: whether you mix in 5.1 surround or stereo, the correlation meter helps identify phasing uses and other anomalies that are easy to miss when relying solely on your ears
Items Included
- TC Electronic Clarity M Multichannel Audio Loudness Meter
- 2.5mm Hex Key
- AC Adapter
- DB15 Cable Assembly
- BNC Female to RCA Male Adapter
- USB-A to Micro USB-B
Additional Resources
TC Electronic CLARITY M Specs
| Panel Type |
TFT LCD
|
| Display Size |
7"
|
| Native Resolution |
800 x 480
|
| Touchscreen |
No
|
| USB I/O |
1 x Micro-USB 2.0 Female Input
|
| Audio I/O |
1x DB-15 AES3/S/PDIF Input (6 Channels, GPIO)
1x TOSLINK Optical Input (EIAJ) |
| Power Source |
AC Adapter with Power Brick (Included)
|
| DC Input Power |
12 VDC at 0.5 A
|
| Mounting |
Back: 2x RAM Mounting Point
|
| Color |
Black
|
| Environmental Resistance |
No
|
| Dimensions |
7.2 x 5.5 x 1.5" / 18.3 x 14 x 3.8 cm
|
| Weight |
2.6 lb / 1.2 kg
|
| Package Weight |
3.52 lb
|
| Box Dimensions (LxWxH) |
9.25 x 9 x 3"
|
