Description
Next Level Racing GTElite Lite Wheel Plate Ed... Overview

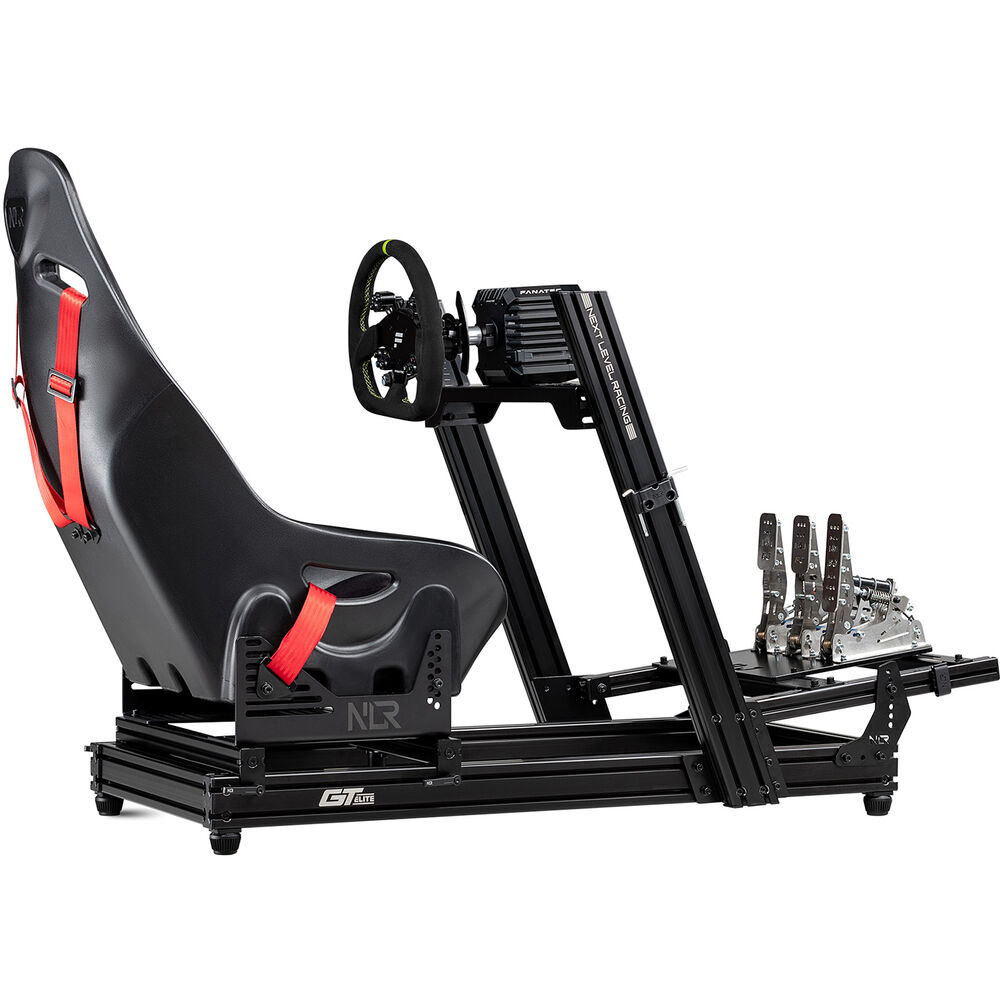

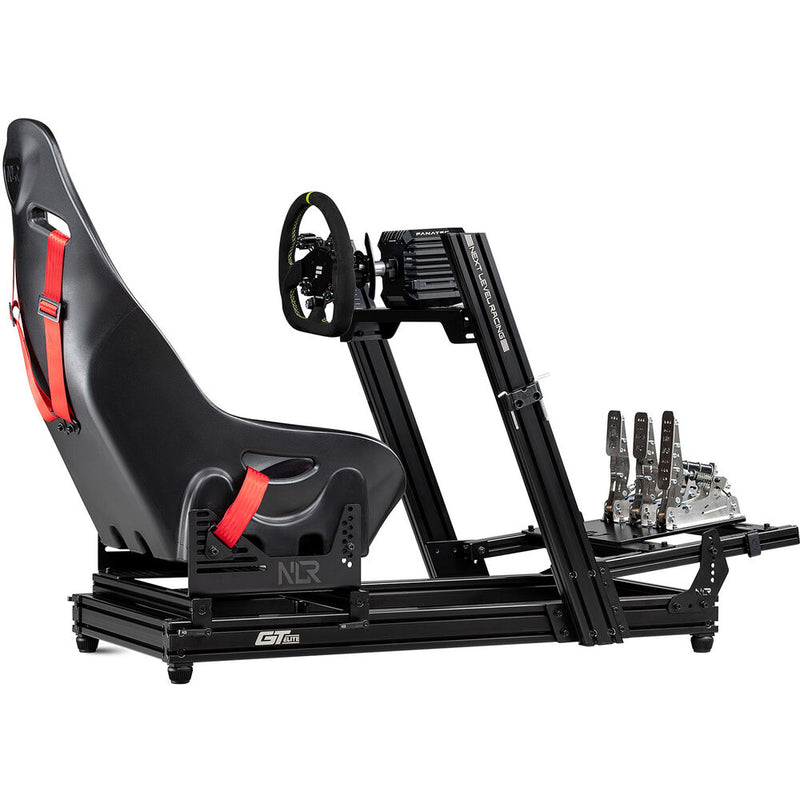

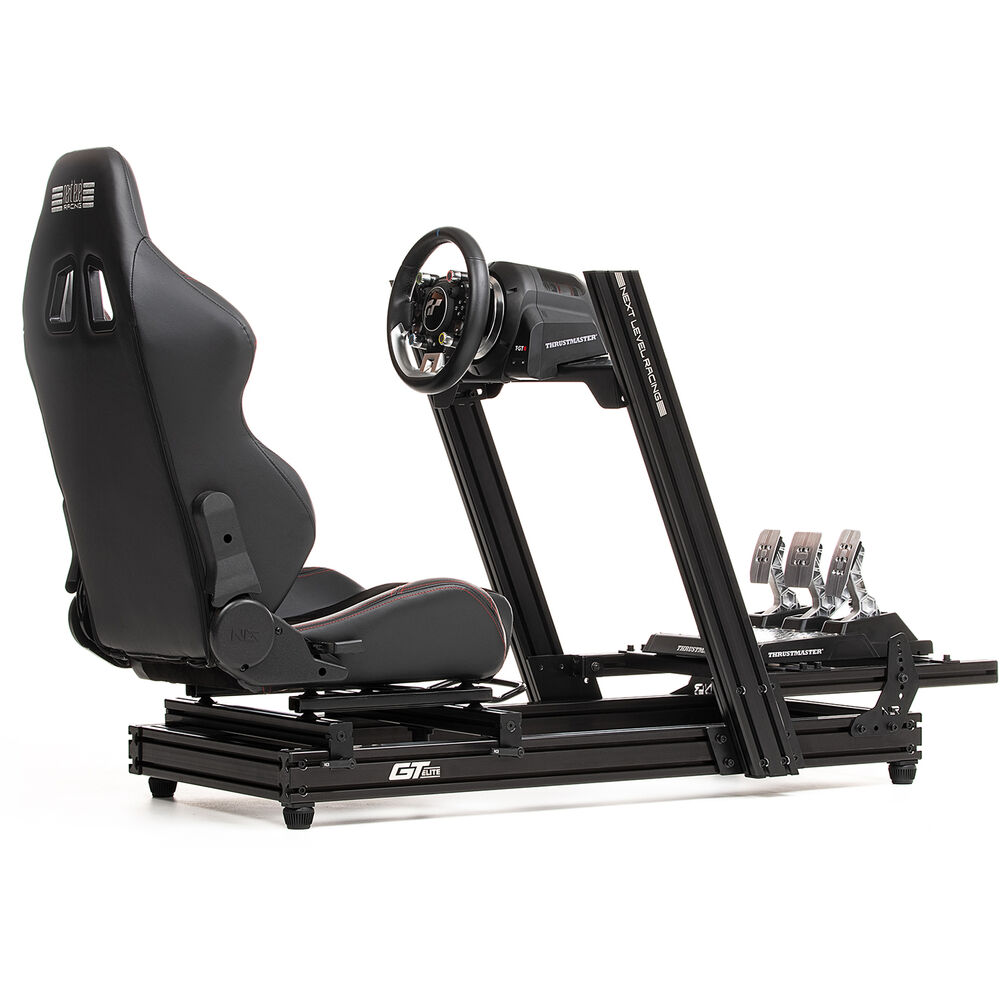

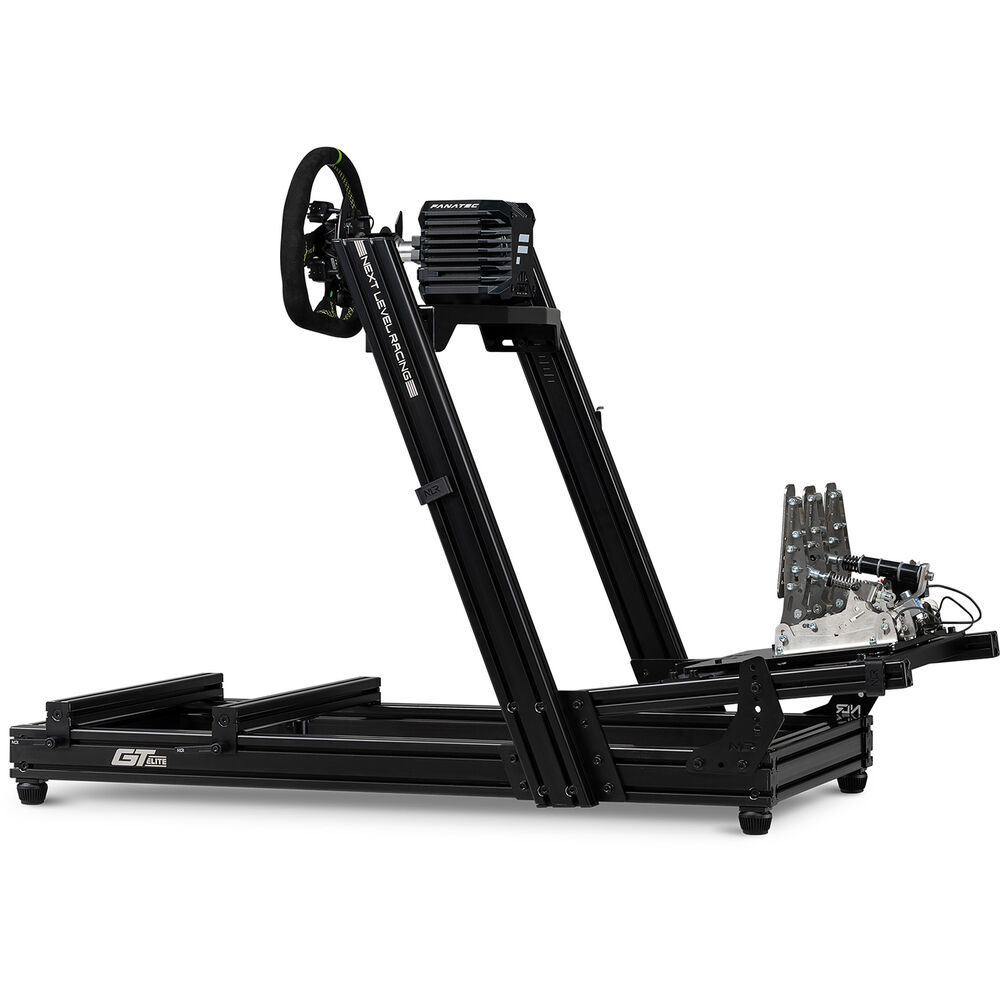

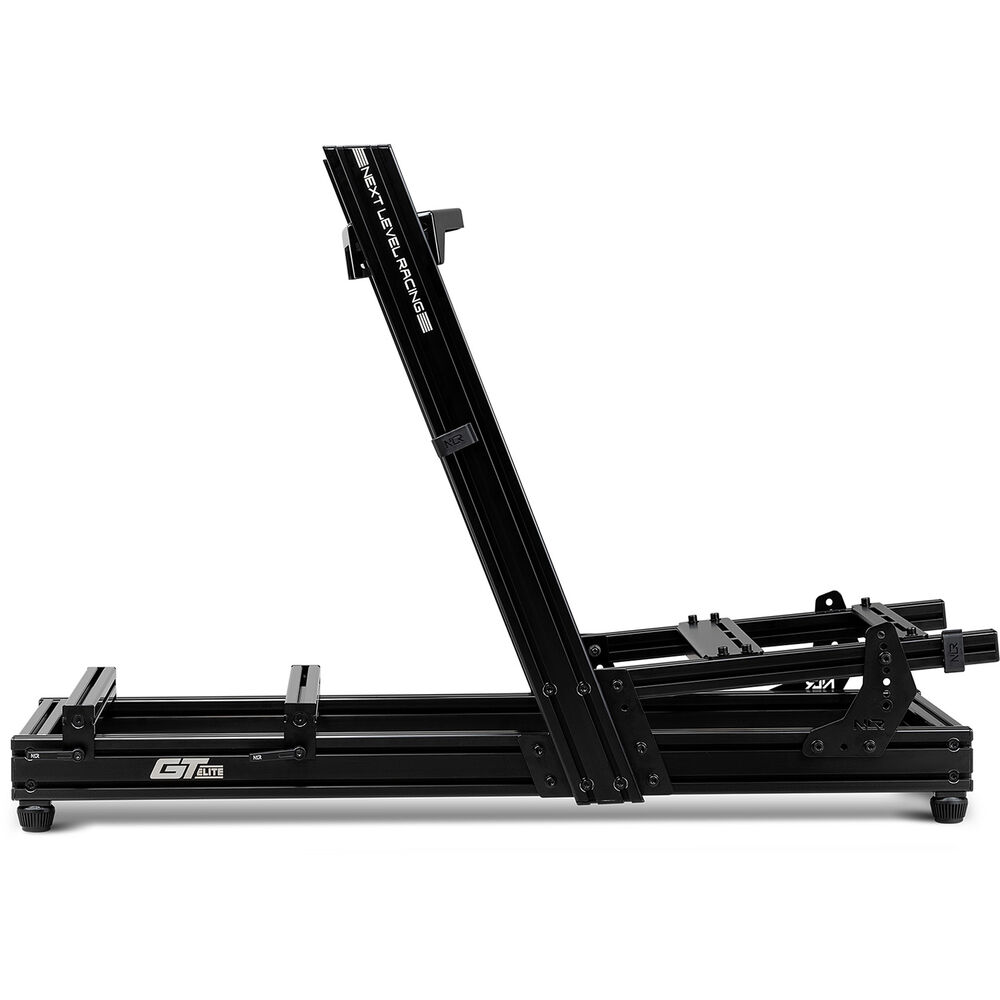

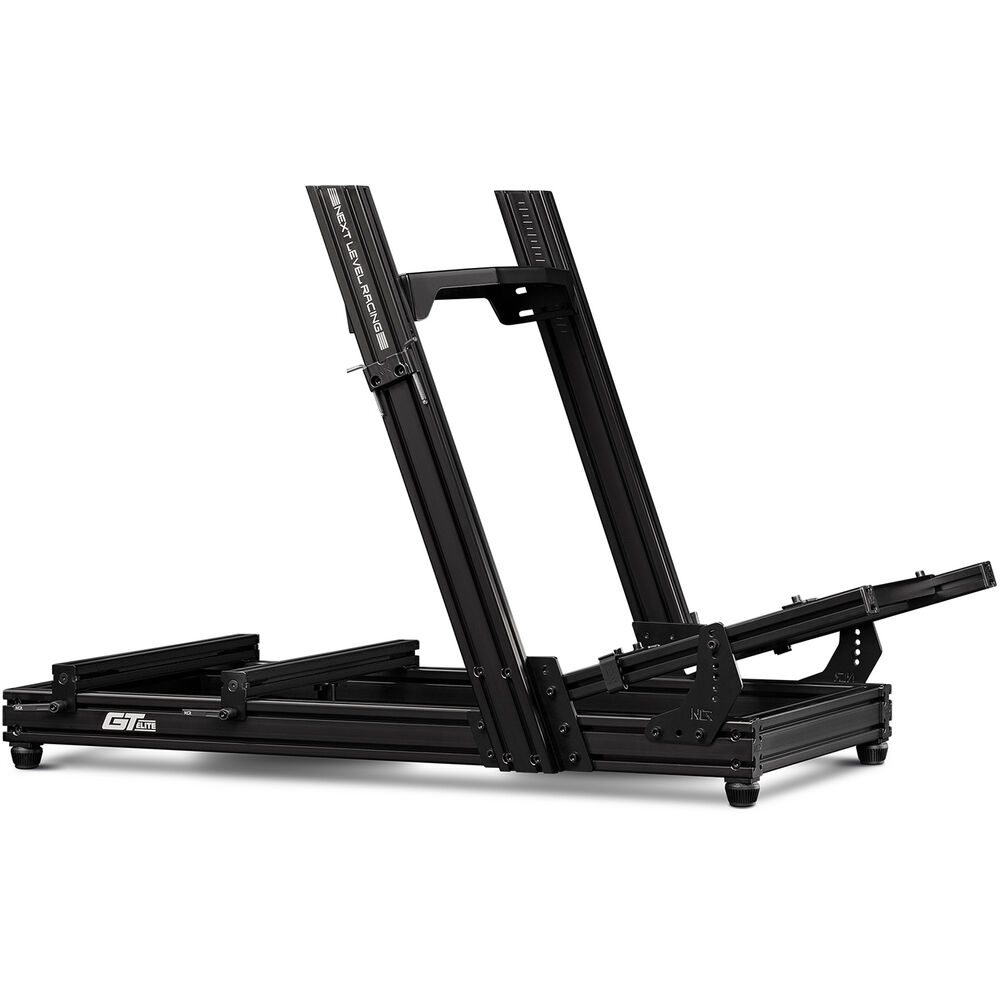

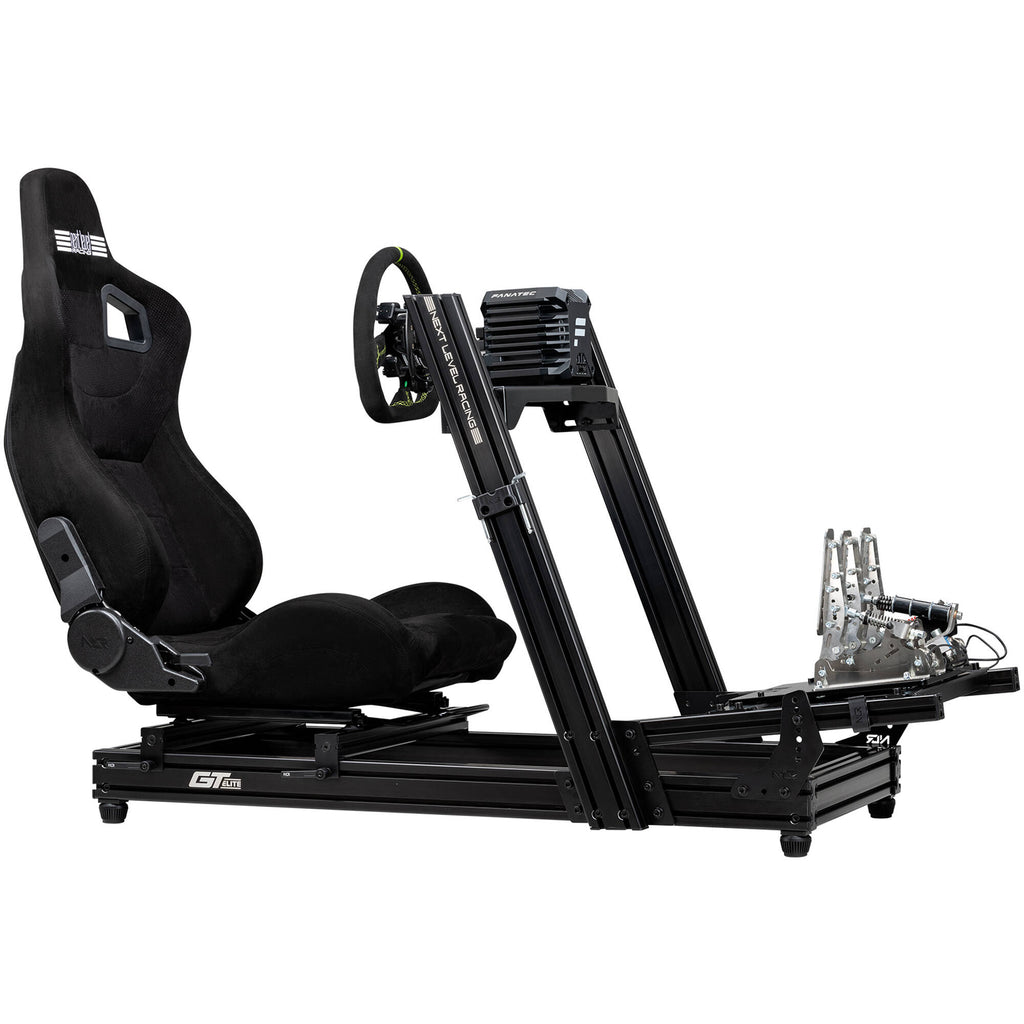

Introducing Next Level Racing GTElite Lite Aluminum Profile Cockpit
Next Level Racing GTELite lite Instructions
Fully immerse yourself in realistic racing with the GTElite Lite Racing Cockpit from Next Level Racing as the foundation of your simulation. Designed to support a variety of separately purchased Next Generation Racing seats, steering wheels, and pedals, this mid-range enclosed cockpit frame is built for high strength and versatility. The black anodized aluminum and carbon steel construction delivers strong support and easy assembly. Rigid, yet adjustable mounts are included for your seat, wheel, and pedal.
Extras such as a seat slider system, seat brackets, height-adjustable shock absorption feet, a ButtKicker Gamer 2 Adapter, and cable management clips are included. This frame is designed to support drivers measuring 4' to 6' 9" tall, weighing up to 330 lb.
Reinforced Design
The GTELite Lite Cockpit utilizes an 8mm thick carbon steel reinforced upright direct mounting plates, delivering a strong connection between the vertical uprights and the base of the chassis. To eliminate any movement and increase the clamping force between the components, custom-engineered full channel width spring ball T-slot nuts are used throughout the build with through bolts for areas that require higher clamp force and rigidity. The 8mm Carbon Steel Sandwich Plate also provides a connection between the vertical uprights and the pedal plate to lock in and increase the reinforcement between the structural parts of the cockpit. Precision machined holes bolt the base of the profile directly for a more rigid foundation.
Built for Intense Racing
Precisely designed multi-folded wheel, pedal, and plates combined with thick carbon steel removes deflection and flex to provide a stronger and more rigid platform for users to attach their high performance electronics.
Flex-Free Seat Slider and Bracket System
The Next Level Racing Seat Sliding System has been engineered to eliminate the issue of flex found in conventional seat sliders used in simulation. The ratchets are used to easily slide your seat back and forth to find the desired position for a flex-free racing experience. Additionally, the Next Level Racing Seat Brackets are constructed from 5mm carbon steel to provide the rigidity required for high-end sim racers, and the new design supports multiple seating positions with 98 adjustment options.
Height-Adjustable Shock Absorption Feet
Uneven floors should never spoil your simulation experience. The height-adjustable feet allow independent adjustments for each corner of your cockpit. The custom designed feet also include TPE shock absorption plugs that are designed to absorb vibrations and provide grip on slippery surfaces.
Compatibility
This frame is compatible with most major wheel and pedals brands, including Fanatec, Thrustmaster, Logitech, SimXperience, and more.
UPC: 850041503240
Items Included
- Next Level Racing GTElite Lite Racing Cockpit (Wheelplate Edition)
- Side Mounting Seat Brackets
- Tool Holder with M6 and M8 Allen Key and Spirit Level
- Height-Adjustable Shock Absorption Feet
- 6 x Cable Management Clips
- ButtKicker Gamer 2 Adaptor
- Bolts to Hard Mount Wheels and Pedals
- Custom End Caps
- Magnetic Spirit Level
- Limited 1-Year Manufacturer Warranty
Additional Resources
No additional resources available
Next Level Racing GTElite Lite Wheel Plate Ed... Specs
General
| Compatibility |
Next Level Racing Elite Freestanding Monitor Stands
Next Level Racing Elite Direct Monitor Mount Next Level Racing ERS1 Elite Reclining Seat Next Level Racing ERS2 Elite Reclining Seat Next Level Racing Elite ES1 Sim Racing Seat Next Level Racing Universal Seat Brackets Next Level Racing Floor Mat Next Level Racing Motion Plus Platform Next Level Racing Elite Motion Adapter Upgrade Kit Next Level Racing Elite Keyboard and Mouse Tray Next Level Racing Elite Tablet & Button Box Mount Add-On Next Level Racing Elite Formula and Hybrid Pedal Upgrade Kit |
| User Size |
Height: 4' to 6' 9" / 120 to 210 cm
|
Physical
| Load Capacity |
330.7 lb / 150 kg
|
| Color |
Black
|
| Material of Construction |
Aluminum, Carbon Steel
|
| Dimensions |
58.3 x 34.1 x 32.5" / 148 x 86.5 x 82.5 cm
|
| Weight |
68.3 lb / 31 kg
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 135676.1 |
| 3-5 | ₹ 134291.65 |
| 5-10 | ₹ 131522.75 |
| 10+ | ₹ 128753.85 |
Bulk discount will be automatically applied during checkout based on quantity.
